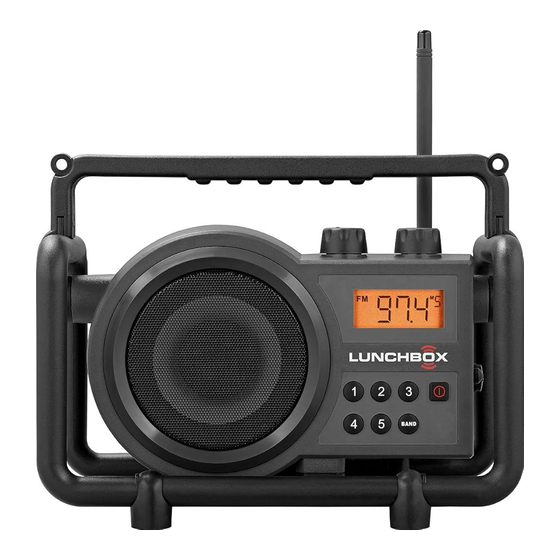

- Page 1 SG-102 AM / FM AM / FM Ultra-Rugged Compact Radio Ultra-Rugged Compact Radio Operating instruction 3A81WB0S50GB0...
-
Page 2: Important Safety Instructions
Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings Follow all instructions Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the instructions. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. - Page 3 O n l y u s e a t t a c h m e n t s / a c c e s s o r i e s s p e c i f i e d b y t h e manufacturer.
- Page 4 For United States: Cautions to the user The changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules.
-
Page 6: Lcd Display
Controls Volume Control Tuning Control FM antenna LCD display Power On / Off Band Selection Preset Station Speaker Battery Compartment AC power cord storage LCD Display Band Indicator Frequency Preset Stations Low Battery Indicator... -
Page 7: Power The Radio
Power the radio 1. Battery operation Installing the batteries, first turn battery cover fixture anti-clockwise to loosen and pull down the battery cover. Insert 4 x C size (UM- 2) battery into the compartment. Ensure the battery is inserted in accordance with the diagram shown. -
Page 8: Manual Tuning
2. AC operation Before you plug the AC power cord into the AC socket, be sure the voltage is correct. If you have batteries in the radio and use the AC power cord, the batteries will automatically be disconnected. AC power storage is designed to store the cord when the radio is not in use. -
Page 9: Display Backlight
Memory presets recall Storing stations in preset memories There are 5 memory presets for each waveband. 1. Press the Power button to turn on the radio. 2. Tune to the required station using Tuning Control. 3. Press and hold down the required preset until the radio beeps. The preset number will appear in the display and the station will be stored under chosen preset button. - Page 10 Setting tuning step Tuning step in some countries are different from where you purchase the radio. If you buy the radio in Europe and intend to use in Northern America or some Latin American countries, you may have to adjust tuning step so the radio may continue to serve you well. 1.
-
Page 11: Specifications
Specifications Frequency Coverage: FM 87.50 – 108 MHz AM (MW) 520 – 1710 kHz (10 kHz) 522 – 1710 kHz (9 kHz) AC Power: AC 120V/60Hz/10W (USA) AC 230V/50Hz/10W (Europe) Batteries: 4 x UM-2 (C Size) Output Power: 2 Watt 10% T.H.D. @ 100 Hz @ DC battery 6V 5 Watt 10% T.H.D.
