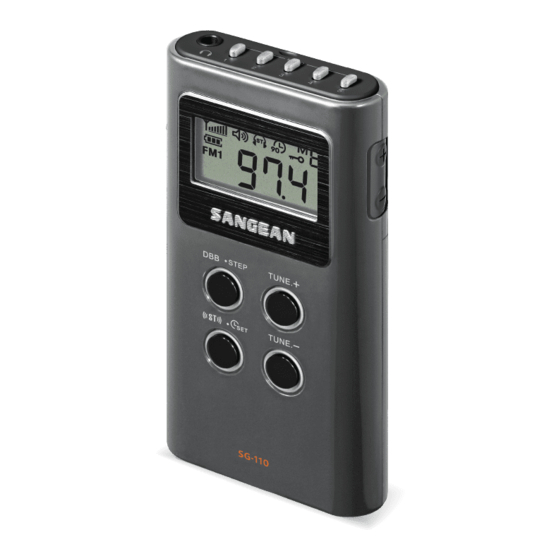

- Page 1 SG-110 Version 1...
- Page 3 Controls POWER / BAND button LCD display DBB/● STEP button Mono/Stereo button/Time setting button Tuning up/down button Volume button Lock switch Battery compartment Strap holder Earphone jack Memory button Display Selected band Battery power indicator Signal level indicator FM stereo indicator 90 minutes auto shut off Memory presets Key lock function...
- Page 4 For United States: Cautions to the user The changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. The equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to part 15 of the FCC Rules.
-
Page 5: Battery Installation
Battery Installation Battery cover is located on the back of the unit. Slide the cover downwards to gain access to the battery compartment. Insert two AAA (UM-4) batteries into the compartment. Make sure that the battery is positioned in accordance with the indicated diagram. Replace cover. -
Page 6: Volume Control
Antenna / Earphone Insert the earphone into the earphone jack. The cord connecting the earphone to the receiver acts as an antenna during FM audio reception and should be extended as much as possible to increase the sensitivity. A built-in ferrite bar antenna is provided for AM reception and it is only necessary to rotate the radio for maximum signal strength during AM listening. -
Page 7: Scan Tuning
90 Minutes auto shut off device For saving battery power, this radio is designed to auto shut off after 90 minutes operation, LCD display shows For continuous listening if necessary, pressing POWER/BAND button for more than 2 seconds to turn on the radio. Scan Tuning Turn on the radio, select required band by pressing POWER/BAND button. -
Page 8: Stereo / Mono Switch
Memory Tuning (Station preset) Turn on the radio by pressing and holding POWER/ BAND button. Select required band by pressing POWER/ BAND button. Tune to the desired station using the Scan or Manual tuning steps described above. When the desired station is reached, press and hold Memory button (1-5) for more than 2 seconds until display M x stops flashing followed with a beep (via earphone). -
Page 9: Software Version
DBB (Dynamic Bass Boost) Press and release DBB/● STEP button to activate the Deep Bass Boost function to have stronger bass sound, display will appear DBB symbol. Press again will cancel the DBB. Note: Suggest to activate the DBB when using earphones. Software version The software display cannot be altered and is just for your reference. -
Page 10: Key Lock Function
Key Lock Function The key lock function is used to prevent unintentional operation of the radio. Key lock switch is located on the rear of the radio. When the key lock is set to LOCK, every button will be disabled and a key lock icon will appear on the screen. -
Page 11: Specification
Specification Battery: 2 X AAA (LR03, UM-4) Frequency Coverage: FM: 87.50-108 MHz 522-1710 kHz (9kHz) 520-1710 kHz (10kHz) Output Power: 1.0 mW+ 1.0 mW Earphone Jack: 3.5 mm diameter (stereo) The company reserves the right to amend the specifications without notice. If at any time in the future you should need to dispose of this product please note that: Waste electrical products should not be disposed of with...
