ASSEMBLY
INSTRUCTIONS
(BOX 1)
HEADBOARD & FOOTBOARD
ITEM
DRAWING
DESCRIPTION
HEADBOARD
PANEL
LEFT & RIGHT
HEADBOARD
LEG
FOOTBOARD
WOODEN SLAT
WOODEN
SUPPORT
STEP 1
2
1
THE HARDWARE IS LOCATED IN THE PACKING ITEMS
NOTE : MUST TIGHTEN SCREWS PERIODICALLY. WITH USE SCREW MAY BECOME LOOSE.
CHECK TIGHTNESS OF ALL SCREW EVERY 6-8 WEEKS.
(BOX 2)
SIDE RAIL
QTY
ITEM
DRAWING
(BOX 1)
HEADBOARD & FOOTBOARD HARDWARE LIST
ITEM DRAWING
3
4
2
ITEM NO : B4760-K-HBFB /
DESCRIPTION
QTY
SIDE RAIL
QTY
DESCRIPTION
SCREW - JCBC
M6 X 35
ALLEN KEY M6
SPRING WASHER
FLAT WASHER
SCREW CSK
M4 X 25
ALLEN KEY M8
3
1
B4760-KQ-RAIL
KING BED

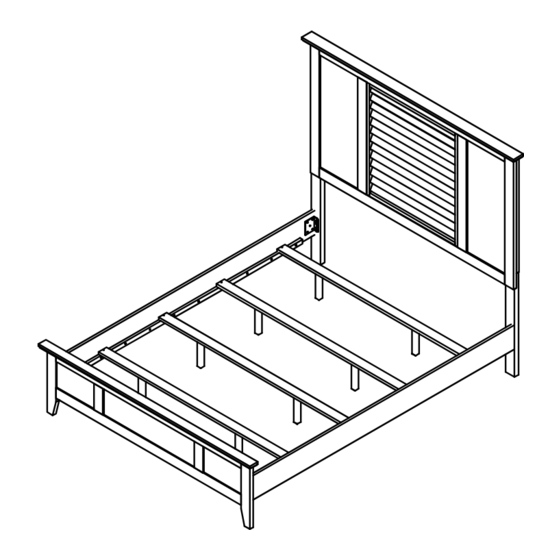

COMPLETED KING BED
ASSEMBLY
4
MADE IN MALAYSIA
PAGE 1 OF 2
