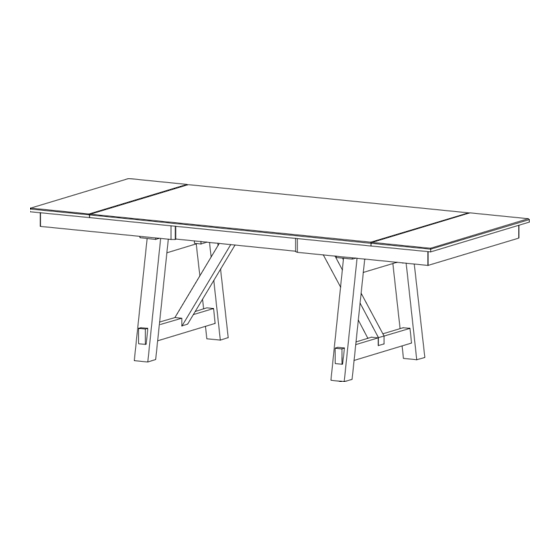

Crown Mark Maribelle 2158CG-T-TOP Assembly Instruction

Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts which may have come
loose inside the carton during shipment. Identify and count all parts and compare with the Parts List below.
**Assemble the table on flat, soft surface such as carpet or cloth to prevent scratching table finish. Read all the instruction and study
the drawings carefully before starting the assemble process.
Caution : Wipe up spills as soon as possible. Please wipe with dry rag right away.
BOX 1: (BOX OF TABLE TOP)
ITEM DRAWING
1
BOX 2: (BOX OF TABLE LEG)
ITEM DRAWING
2
3

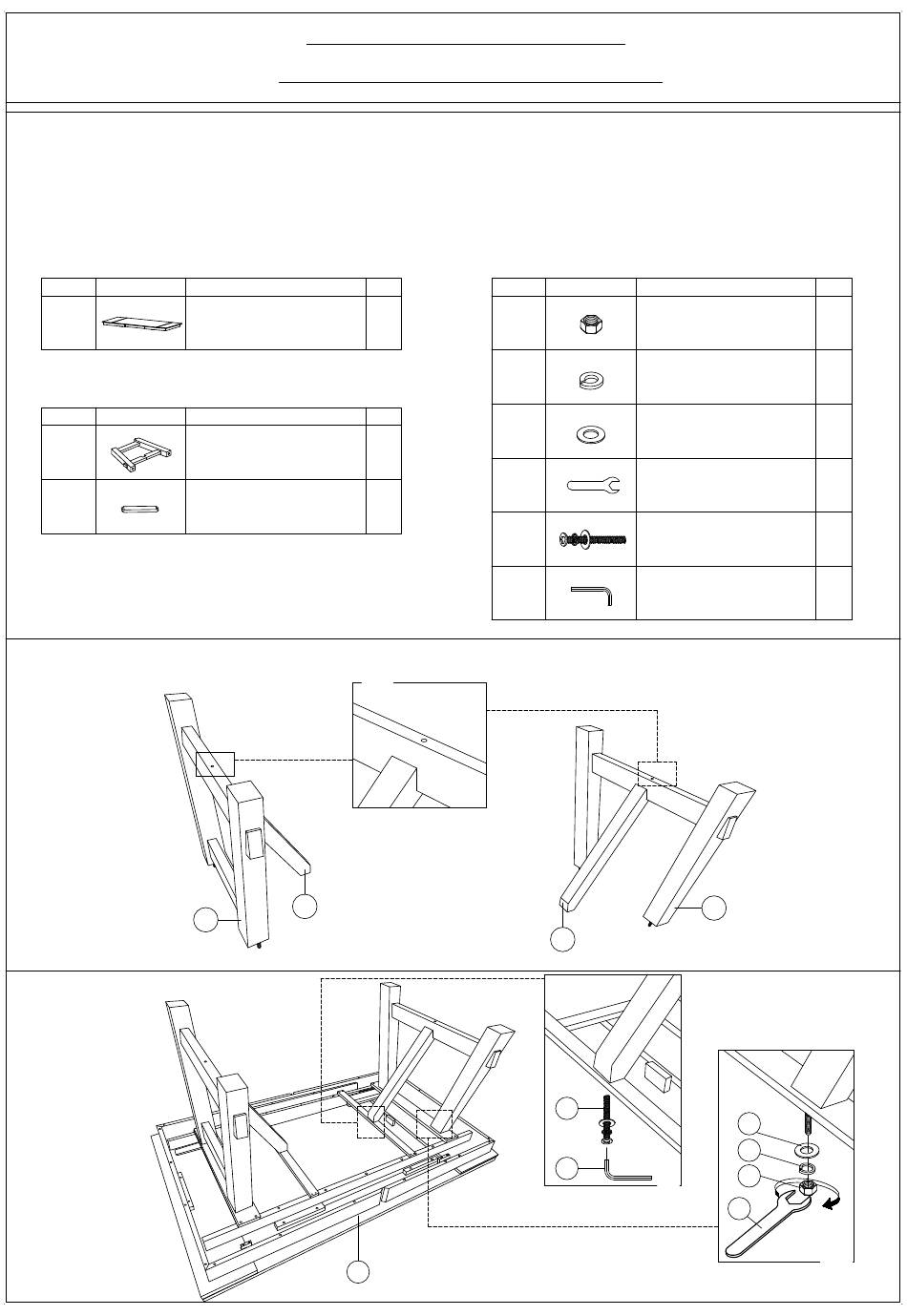

STEP 1
STEP 2
ASSEMBLY INSTRUCTION
2158CG-T-TOP / 2158CG-T- LEG
DESCRIPTION QTY
TABLE TOP
DESCRIPTION QTY
TABLE LEG
LEG SUPPORT RAIL
2x
3
2
1
BOX 1: (BOX OF TABLE TOP)
HARDWARE LIST
ITEM
1 A
B
C
2
D
2
E
F
STEP 2.2
DRAWING DESCRIPTION
HEX NUT 5/16''
SPRING WASHER 5/16''
FLAT WASHER 5/16''
SPANNER 12.8MM
12.8
JCBC SCREW (NYLOK) M8x70MM
WITH LOCK WASHER & WASHER
ALLEN KEY M5
3
2
STEP 2.1
E
F
2x
QTY
4
4
4
1
4
1
C
B
A
D
4x
Page 1 of 2
