Crown Mark TACOMA ENTERTAINMENT B8280-8 Assembly Instructions

ASSEMBLY
INSTRUCTIONS
BOX FOR TACOMA ENTERTAINMENT
ITEM DRAWING
DESCRIPTION
TOP PANEL A
A
TOP PANEL B
B
TOP PANEL C
C
SIDE PANEL
D
CENTER PANEL
E
F SHELF
G BACK PANEL
H SUPPORT LEG
SIDE FRAME L
I
SIDE FRAME R
J

STEP 1

THE HARDWARE IS LOCATED IN THE PACKING ITEMS
NOTE : MUST TIGHTEN SCREWS PERIODICALLY. WITH USE SCREW MAY BECOME LOOSE.
CHECK TIGHNESS OF ALL SCREW EVERY 6-8 WEEKS.

CLEANING INSTRUCTION

After assembly, clean & polish the completed parts if necessary with soft cloth and industrial recognized furniture polish

HARDWARE LIST

ITEM DRAWING
QTY
1
1
2
1
3
1
4
5
2
1
6
2
7
1
8
1
9
1
10 Assembly Tool Not Included
1
A
ITEM NO : B8280 - 8
TACOMA ENTERTAINMENT
DESCRIPTION QTY
ALLEN WRENCH
1
(M4)
CAM BOLT
6
(T24)
CAM NUT
6
(D15 X 9.5mm)
SMALL WOOD DOWEL
12
(M6 x 40mm)
BIG WOOD DOWEL
6
(M8 x 30mm)
CONNECTION BOLT
(M6 x 60mm)
6
W/WASHER &
SPRING WASHER
CONNECTION BOLT
(M6 x 80mm)
12
W/WASHER &
SPRING WASHER
BARREL NUT
6
(M6 x 13mm)
METAL SHELF NUT
8
WITH HOLE
(G165)
1
2

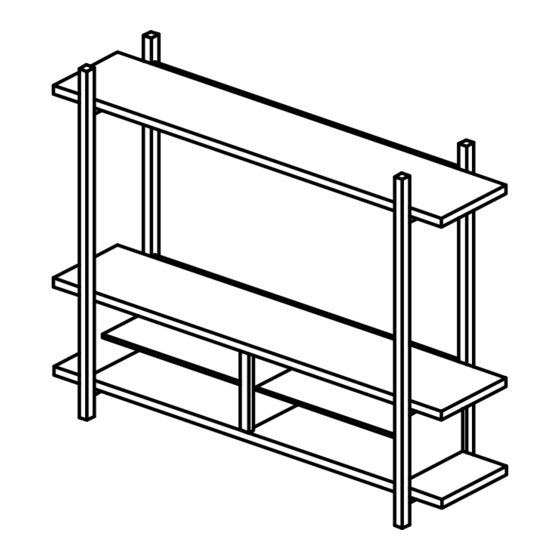

COMPLETED
TACOMA ENTERTAINMENT
ASSEMBLY
A
PAGE 1 OF 5
