Temperature & Superheat
Controllers & Kits

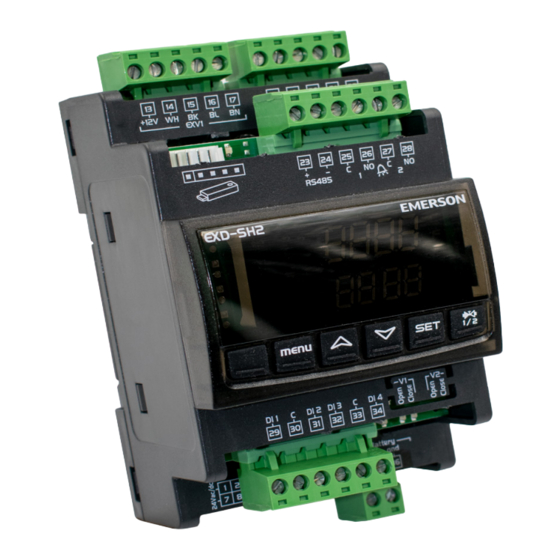

EXD-SH1, EXD-SH2
Simplified ordering and installation
with kits that include everything
you need in one box.
Multi-Function Control
Superheat control, temperature control, low
pressure switch, freeze protection
EXD-SH2 can control two valves in
independent circuits
For use with Emerson EX and CV series valves
Simple Installation
Kits include all components needed for setup
in one box
Integrated keyboard with two line display
eliminates need for additional components
Electrical connection via plug-in type screw
terminals
Self adaptive algorithm eliminates need for
setting PID control for individual systems
Easy System Monitoring
Connect via Modbus to monitoring systems
including Emerson's E2 system controller
(2)
(2)
(2) Signifies x2 for EXD-SH2K
