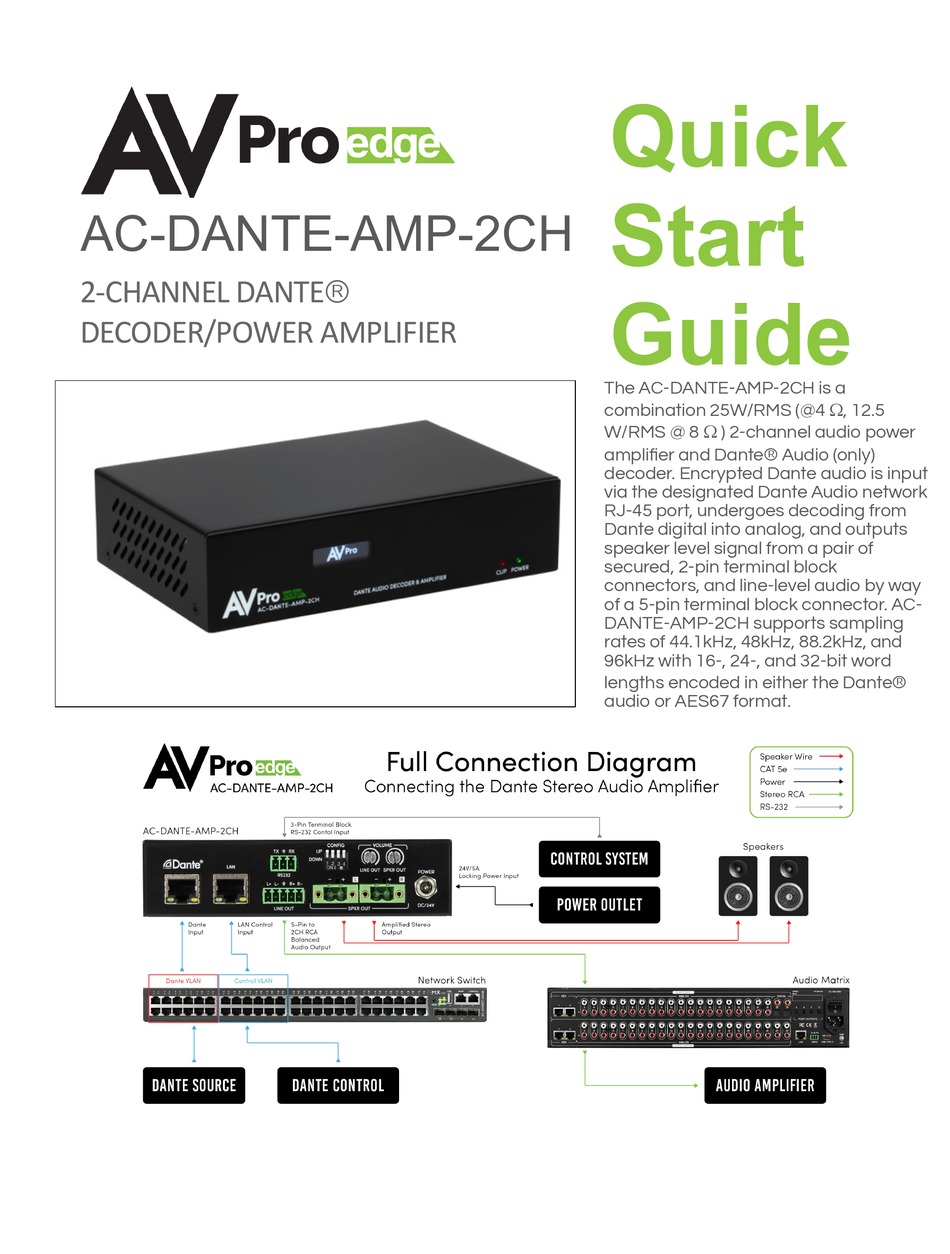

AC-DANTE-AMP-2CH
2-CHANNEL DANTEâ
DECODER/POWER AMPLIFIER
Connecting the Device
1
Connect the cable attached to the 24VDC-
5A power supply housing to the AC-DANTE-
AMP-2CH Decoder/Amplifier DC/5V input
port. Connect the AC mains power cord to the
24VDC-5A power supply adapter and plug
into a properly grounded power outlet.
Quick
Start
Guide

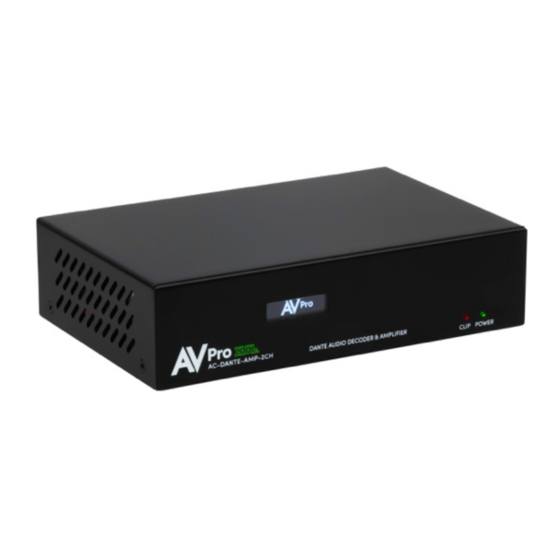

The AC-DANTE-AMP-2CH is a
combination 25W/RMS (@4 W, 12.5
W/RMS @ 8 W ) 2-channel audio power
amplifier and Danteâ Audio (only)
decoder. Encrypted Dante audio is input
via the designated Dante Audio network
RJ-45 port, undergoes decoding from
Dante digital into analog, and outputs
speaker level signal from a pair of
secured, 2-pin terminal block
connectors, and line-level audio by way
of a 5-pin terminal block connector. AC-
DANTE-AMP-2CH supports sampling
rates of 44.1kHz, 48kHz, 88.2kHz, and
96kHz with 16-, 24-, and 32-bit word
lengths encoded in either the Danteâ
audio or AES67 format.
Advertisement
Related Manuals for AVProEdge AC-DANTE-AMP-2CH
Summary of Contents for AVProEdge AC-DANTE-AMP-2CH
- Page 1 Quick Start AC-DANTE-AMP-2CH 2-CHANNEL DANTEâ Guide DECODER/POWER AMPLIFIER The AC-DANTE-AMP-2CH is a combination 25W/RMS (@4 W, 12.5 W/RMS @ 8 W ) 2-channel audio power amplifier and Danteâ Audio (only) Connecting the Device decoder. Encrypted Dante audio is input via the designated Dante Audio network...
-
Page 2: Connecting The Device
AMP-2CH Decoder/Amplifier DC/5V input port. Connect the AC mains power cord to the 24VDC-5A power supply adapter and plug it into a properly grounded power outlet. The AC-DANTE-AMP-2CH does not support PoC or PoE. It is required to be Note: •... - Page 3 5-pin terminal block. Observe polarity when connecting or assembling a cable. If connecting the AC-DANTE-AMP-2CH to a device with an RCA-type input, AVPro Edge recommends using the AC-CABLE-5PIN-2CH balanced to an unbalanced pre-made adapter.
-
Page 4: Device Configuration
Device Configuration Configuring the AC-Dante-AMP-2CH requires the installation of Audinate’s Dante Controller software onto a computer that will be connected to the Dante network. Dante Controller is used to configure network settings, signal latency, audio encoding parameters, Dante flow subscriptions, and AES67 audio support. The latest version of Dante Controller may be found at: https://www.audinate.com/products/software/dante-controller;... - Page 5 Transmi)ers • Discovered Dante encoders • Receivers Discovered Dante decoders • Select the (+) to expand or (-) to collapse view • Displays the name assigned to the Dante device Device Name • Device name is customizable in Device View •...
- Page 6 Changing Device Name and Encoding Configura=on To configure the AC-DANTE-AMP-2CH audio stream, open the Device View by double-clicking the Device Name for the AC-DANTE-AMP-2CH and navigate to the Device Config Tab. Device Name for the AC-DANTE-AMP-2CH • Device Device Name can be changed by typing a •...
- Page 7 Network Configura=on DHCP for the AC-DANTE-AMP-2CH is enabled by default and will automatically be assigned an IP address when connected to the Dante network. Additionally, a static IP address can be assigned by opening the Device View for the AC-DANTE-D and navigating to the Network Config tab.
- Page 8 AES67 Audio Stream Configura=on The AC-DANTE-AMP-2CH supports multicast reception of AES67-encoded audio to compatible non-Dante devices. AES67 multicast reception can be configured by opening the Device View by double-clicking the AC-DANTE-AMP-2CH Device Name and navigating to the AES67 Config tab. •...
-
Page 9: Troubleshooting
Troubleshooting • Verify Power – Check that the power supply is properly connected and is outputting 12V. • Verify Connections – Check that all cables are properly connected and/or terminated where applicable. • Verify Terminations – Ensure you are using a minimum of CAT 5e UTP or STP without breaks such as keystones, punch downs, or other interconnectors.
