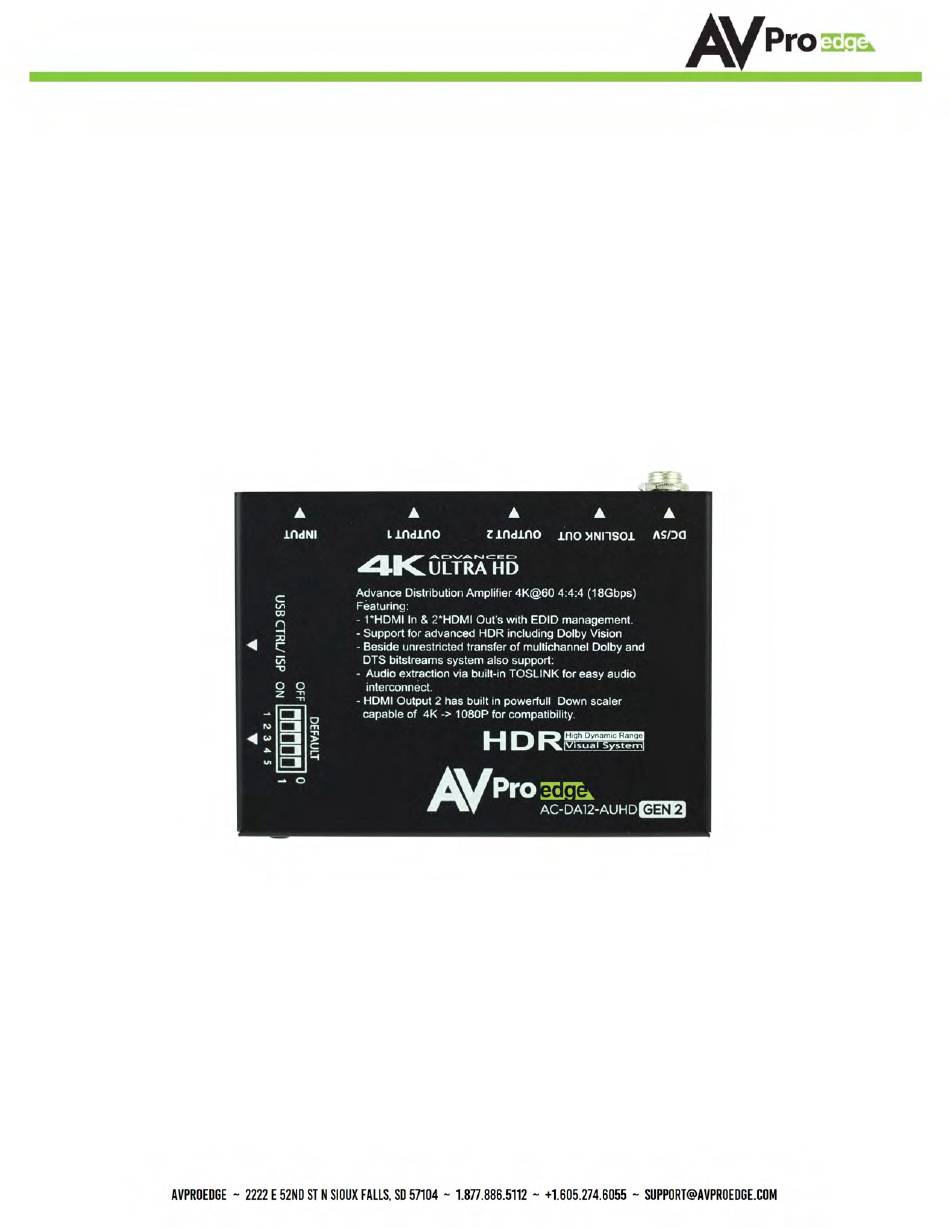

- Page 1 AC-DA12-AUHD-GEN2 User Manual AC-DA12-AUHD-GEN2 A full 4K60 4:4:4 (Up to 18GBPS) Distribution Amplifier with advanced EDID management Page 1...
- Page 2 Functionally, distributes the input HDMI signal to four identical HDMI outputs. These four outputs are synchronized. AC-DA12-AUHD-GEN2 ability pre-emphasis equalization. Multiple cascaded AC-DA12-AUHD-GEN2 achieves long distance transmission of HDMI signal of more than 15 meters even in 4K (HDR) resolution. AC-DA12-AUHD-GEN2 offers solutions usage...
- Page 3 AC-DA12-AUHD-GEN2 Contents Page 3...
- Page 4 EDID Blend (see page 11 for details) HDMI 2.0(a) w/ HDR. Mounting ears are included for easy fixation on wall, furniture or ceiling. Notice AVProEdge reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. Page 4...
- Page 5 AC-DA12-AUHD-GEN2 Warning To reduce the risk of fire, electric shock, or product damage: 1. Do not expose this apparatus to rai moisture, dripping or splashing and that no objects filled with liquids, such 6. Clean this apparatus on as vases, shall be placed on the with a dry cloth.
- Page 6 AC-DA12-AUHD-GEN2 Page 6...
-
Page 7: Package Contents

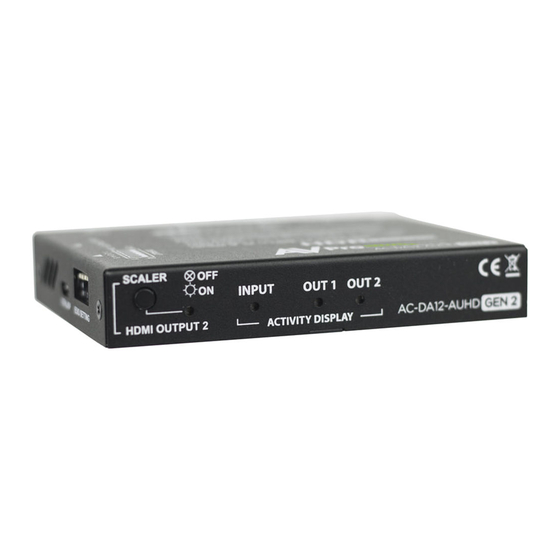

AC-DA12-AUHD-GEN2 Package Contents ■ ① Main unit. P/N: AC-DA12-AUHD-GEN2 ② 5VDC Power Supply. ③ Mounting Ears Connections and Operations ■ Connect the HDMI input source into AC-DA12-AUHD-GEN2 Connect the HDMI output equipment (Displays) into AC-DA12-AUHD-GEN2 Insert the DC side of 5v power supply into... - Page 8 AC-DA12-AUHD-GEN2 ■ Panel Descriptions Front Panel Activity Display (Front): When Power is applied all lights flash RED and the machine begins to function. If no devices are plugged in, you can verify power by looking inside the Toslink out on the back of the unit.
-
Page 9: Back Panel
AC-DA12-AUHD-GEN2 Back Panel · Power input. · HDMI input. · HDMI outputs (x2) · Optical Toslink Out Device Top Cover Device cover is labeled for Scaler Settings And for easy HDMI port recognition especially useful when Mounting Ears are used for fixation. - Page 10 AC-DA12-AUHD-GEN2 EDID Settings: The 5 DIP switches are located on the side of the device, and each switch has two settings, 0 & 1 (UP=0, DOWN=1). The default mode is “00000” which is all up, in this mode the device copies the EDID from the sink (display) plugged into OUTPUT 1.
- Page 11 AC-DA12-AUHD-GEN2 EDID Setting Continued: 1. The AC-DA12-AUHD-GEN2 is set this way by default for maximum “Plug & Play” Compatibility. If you change sink (Display) plugged into OUTPUT 1, please follow the steps below if you wish to use the new sink's EDID.
- Page 12 AC-DA12-AUHD-GEN2 To use Scaler: Press the SCALER Button to toggle on/off Red LED On, then the scaler is on. Scaler On - Downscales 4k to 1080p on output #2 Scaler light Off - No Scaling CTRL/ISP Micro USB Port for firmware and control.
- Page 13 AC-DA12-AUHD-GEN2 Page 13...
-
Page 14: Maintenance
AC-DA12-AUHD-GEN2 Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to. -
Page 15: Warranty
If your product does not work properly because of a defect in materials or workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts/Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with... -
Page 16: Troubleshooting
AC-DA12-AUHD-GEN2 Troubleshooting Verify Power - Front Panel Pg.8 • Try power-cycling the device while all cables are connected Verify Connections - Front Panel Pg.8 • If the lights are not showing a connection, try Hot Plugging the cable (remove and re-insert while powered up) Possible EDID issue. - Page 17 AC-DA12-AUHD-GEN2 Thank you for choosing AVProEdge! Please contact us with any questions. We are happy to be of service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com Page 17...
