AVProEdge AC-DA-14X User Manual

8k 1x4 distribution amplifier with de-embeded 2ch audio, built in down-scalers, and edid management
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
8K 1
4 Distribution Amplifier with De-Embeded 2Ch
X
Audio, Built in Down-scalers, and EDID Management
AC-DA-14X
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AC-DA-14X and is the answer not in the manual?

Questions and answers

Related Manuals for AVProEdge AC-DA-14X

Summary of Contents for AVProEdge AC-DA-14X

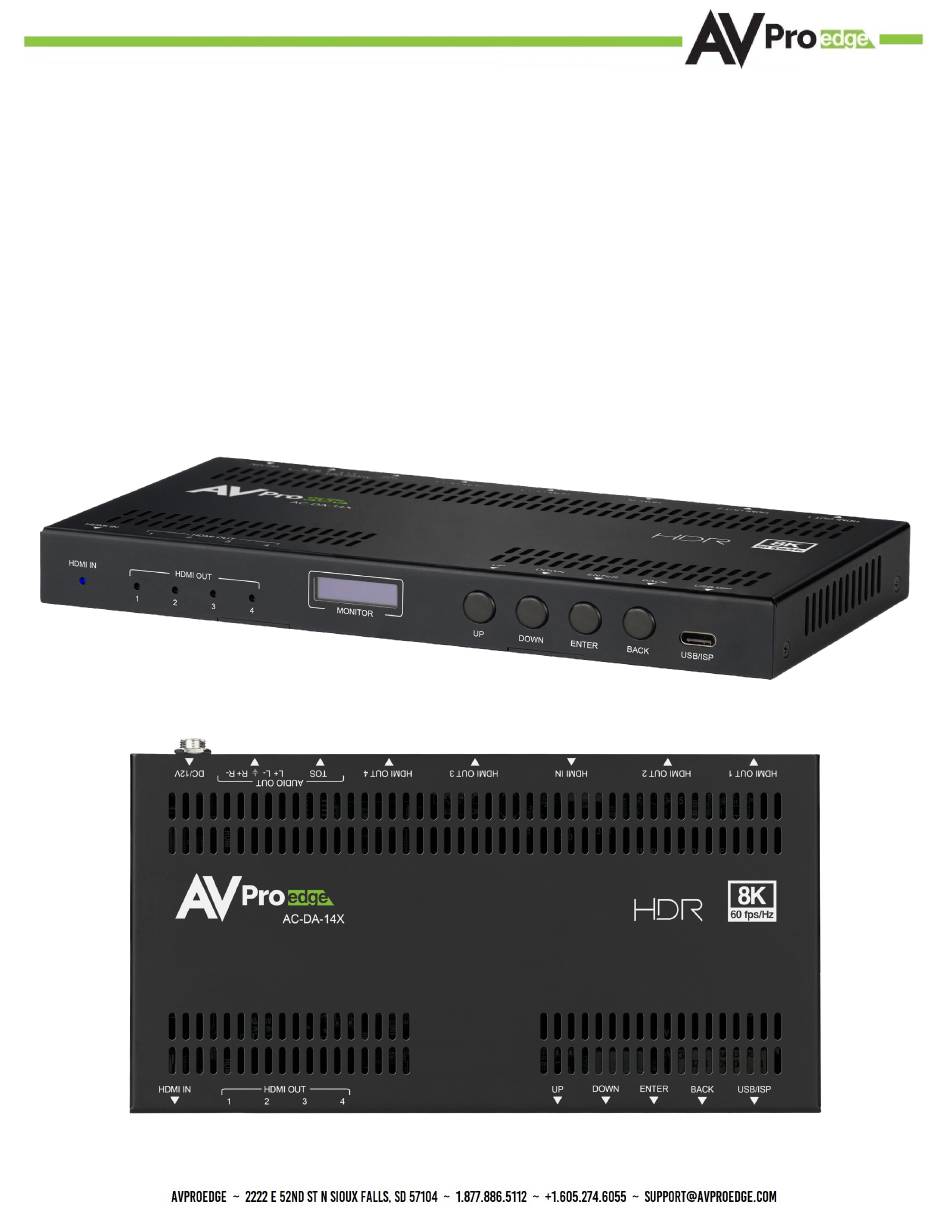

  • Page 1 User Manual 8K 1 4 Distribution Amplifier with De-Embeded 2Ch Audio, Built in Down-scalers, and EDID Management AC-DA-14X...

  • Page 2: Table Of Contents

    I N T R O D U C T I O N � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 3 F E A T U R E S �...

  • Page 3: Introduction

    Introduction The AC-DA-14X is an 8K HDMI distribution amplifier, scaler, and signal stabilizer. Able to connected one HDMI source and repeat that signal throughout the 4 HDMI output ports. Output port two and four have built in scalers allowing users to connect legacy TVs, projectors, or AVR’s.

  • Page 4: Specifications

    Specifications...

  • Page 5: Front Overview

    Front Overview USB-C Port HDMI Status Front Screen Settings Buttons Firmware Indicator LEDs Display EDID/Scaler ISP Control HDMI Status Indicator LEDs will have two states. • LED is ON - A source/sync is detected on that HDMI port. • LED is OFF - No source/sync is detected on that HDMI port. Front Screen Display - Displays the current Resolution/Timing of the HDMI Input.

  • Page 6: Back Overview

    Back Overview Extracted Audio HDMI Out 1 & 2 HDMI Out 3 & 4 HDMI Input Power Toslink/Balanced 2CH. HDMI Outputs • You can down-scale HDMI OUT2 and HDMI OUT4 only. See page[s] 8 to change using the front panel buttons. See page[s] 10-11 for Command list. HDMI Input Extracted Audio •...

  • Page 7: Front Panel Control - Edid Management

    Front Panel Control - EDID Management To Change the EDID of the INPUT Press the ENTER button to enter the Main Menu. If the screen is off you the first button press will wake up the screen, you will have to press the ENTER button again to enter the menu. NOTE: EDID is the first menu and will default here every time you enter the Main Menu.

  • Page 8: Front Panel Control - Scaling

    Front Panel Control - Scaling To Change the Scaler settings of OUT2 and OUT4 (these two can be set seperatly) 1. Press the ENTER button to enter the Main Menu. If the screen is off press the enter button again (the first press will wake the screen up).

  • Page 9: Front Panel Controls -Extracted Audio

    Front Panel Controls -Extracted Audio The extracted audio is always active by default, you may simply plug into any/all of the ports (Toslink or Balanced 2CH) and the audio will be output based on the active source. The Toslink ports supports up to 5.1Ch digital audio and the 5pin terminal connector supports 2Ch PCM.

  • Page 10: U S B C O N T R O L C O N

    USB Control Cont. The AC-DA-14X has a USB-C port on the front. You can connect using a windows computer and MyUart assist (available to download for free on www.avproedge.com/drivers). See page[s] 10-11 for complete command list. Command List · Baudrate: 57600 ·...

  • Page 11: C O M M A N D L I S T C O N T I N U E

    Command List Continued System status response example (STA cmd)

  • Page 12: E D I D B L E N

    RECEIVE - ASCII_Cmd_Param1=4,1,1 EDID OUT4 A OUT1 V MIX IN1 IN1 EDID12 LINK1 SIG STA 0 LINK1 SIG STA 1 Signal Generator The AC-DA-14X has a built in 1920x1080 color bar test pattern that can be enabled per HDMI Output.

  • Page 13: T R O U B L E S H O O T I N

    Troubleshooting • Verify Power - Check that the power supply is properly connected and on an active circuit. The front display screen should illuminate with a button press. The red HDMI activity light should be on for any active HDMI Input or HDMI Output(s). •...

  • Page 14: H D M I 2 . 1 B A N D W I D T H I N N O V A T I O N C H A R

    HDMI 2.1 Bandwidth Innovation Chart...

  • Page 16: M A I N T E N A N C

    Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to.

  • Page 17: S U P P O R

    Support Should you experience any problems while using this product, first, refer to the Troubleshooting section of this manual before contacting Technical Support. When calling, the following information should be provided: • Product name and model number • Product serial number •...
  • Page 18 Dealers, Re-sellers, and Installers can request an RMA AVPro Edge Tech Support Rep or their Sales Engineer. Or you may email support@avproedge.com or fill out the general contact form at www.avproedge.com End users may not request and RMA directly from AVPro Edge and will be referred back to the Dealer, Re- seller or Installer.
  • Page 19 legal theory to the maximum extent permitted by law. Taxes, Duties, VAT, and freight forwarding service charges are not covered or paid for by this warranty. Obsolescence or incompatibility with newly invented technologies (after manufacture of product) is not covered by this warranty. Obsolescence is defined as: “Peripherals are rendered obsolete when current technology does not support product repair or re- manufacture.
  • Page 22 Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com...
