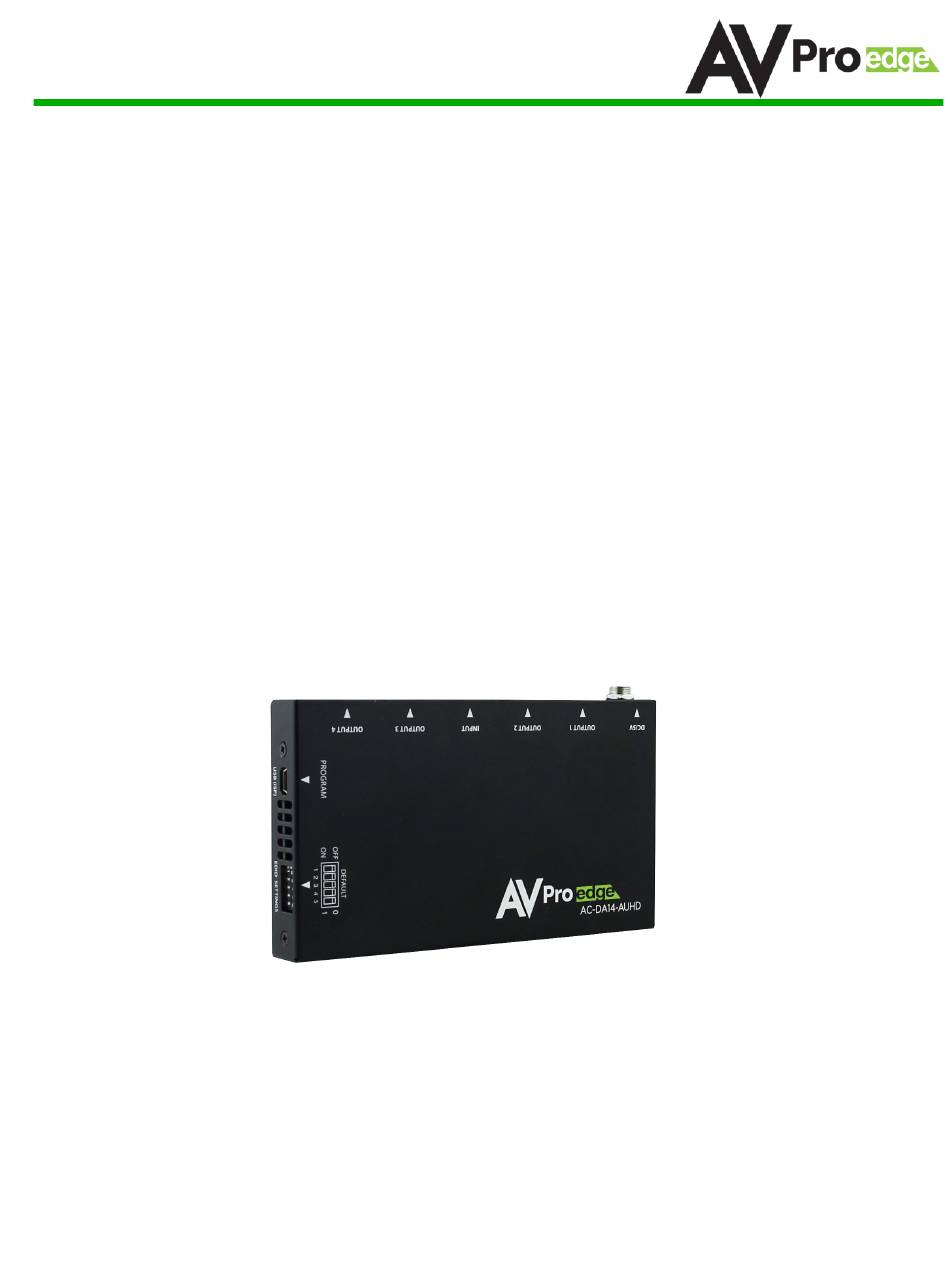

- Page 1 AC-DA14-AUHD User Manual AC-DA14-AUHD A full 4K60 4:4:4 (Up to 18GBPS) Distribution Amplifier with advanced EDID management *Available in 1x2, 1x4, and 1x8 pg. 1 AVProEdge ~ 2222 E 52nd Street N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com...
- Page 2 AC-DA14-AUHD offers solutions for usage as a component of digital HDMI distributions and entertainment systems also UHDTV/4K retail and general show sites. Use in conjunction with UHDTV, UHD Projector, STB, UHD-BD, UHD Media Player and in environment where noise, space and security are concerns. Fits perfectly in data center control rooms, information distribution premises, conference and presentation rooms, school educational facilities and corporate training environments. pg. 2 AVProEdge ~2222 E 52nd Street N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com...
-
Page 3: Table Of Contents
AC-DA14-AUHD Contents HDMI Splitter ........................2 Product Overview ....................... 4 Features ..........................4 Package Contents ........................ 6 Connections and Operations ....................6 Specifications ........................6 Panel Descriptions ......................7-8 Typical Application ........................15 Maintenance ........................11 Product Service ........................12 Mail-In Service ........................12 Warranty ..........................12 Warranty Limits And Exclusions ..................13 pg. 3 AVProEdge ~2222 E 52nd Street N. Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com... -
Page 4: Hdmi Splitter
■ Features ■ Easy to Use: Install in seconds, no need for setting. Distribution: One HDMI input, four identical HDMI outputs. Supports up to 18GBPS with resolutions of 4K60(YUV444), 4K30, 1080p, 1080i, 720p and other standard Video formats, PAL and NTSC. Customer can configure EDID function to enable the best compatibility. Supports HDCP2.2 HDMI 2.0(a) w/ HDR. Mounting ears are included for easy fixation on wall, furniture or ceiling. AVProEdge reserves the right to make changes in the hardware, packaging and any Notice accompanying documentation without prior written notice. pg. 4 AVProEdge 2222 E 52nd Street N Sioux Falls, 57104~ 1.877.886.5112 +1.605.274.6055 ~ support@avproedge.com... - Page 5 5. Do not place sources of naked 10. Refer all servicing to flames, such as lighted candles, qualified service on the unit. personnel. pg. 5 AVProEdge ~ 2222 E 52nd Street N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com...
-
Page 6: Package Contents
AC-DA14-AUHD Package Contents ■ ① Main unit. P/N: AC-DA14-AUHD ② 5VDC Power Supply. ③ Operating Instructions. (Digital @ www.avproedge.com) ④ Mounting Ears Connections and Operations ■ Connect the HDMI input source into AC-DA14-AUHD Connect the HDMI output equipment (Displays) into AC-DA14-AUHD Insert the DC side of 5v power supply into AC-DA14-AUHD and then connect the AC side of the Power supply into the wall outlet. Plugging in the unit automatically powers up the device. NOTE: Insert / Extract cables gently. & Specifications ■ Operating Temperature Range -5 to +35°C (-41 to +95 °F) Operating Humidity Range 5 to 90 % RH (no condensation) Video Amplifier Bandwidth Up to 18.0 GBPS... -
Page 7: Panel Descriptions
AC-DA14-AUHD VESA: 640x480, 800x600, 1024x768, 1280x1024, 1600x1200, 1920x1200 Other Video Formats Supported DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080p/4K HDMI 2.0, HDCP 2.2, HDR Compatible Output Video Power Consumption 6 Watts (max.) Power Supply 5V DC/2A Dimensions 150mm (W) x 81mm (H) x 25mm (D) Mass 0.5 KGS Panel Descriptions ■ Front Panel Activity Display (Front): When Power is applied all lights flash RED and the machine begins to function. If no devices are plugged in, you can verify power by looking inside the vent on the right side of the unit. When the INPUT device is plugged in, the light blink RED while “handshaking” is occurring, and goes SOLID once communication is complete and signal is good. When a sink (display) is plugged into an OUTPUT, the corresponding light blinks RED until the “handshake” is complete. Once the connection is made the OUTPUT lights will go SOLID (If a sink or display is plugged in). pg. 7 AVProEdge ~ 2222 E 52nd Street N Sioux... - Page 8 AC-DA14-AUHD Back Panel ① Power input. ② HDMI input. ③ HDMI outputs (x4). Device Top Cover Device cover is labeled for DIP Switch (EDID setting) and ISP mini USB port and for easy HDMI port recognition especially useful when Mounting Ears are used for fixation. & NOTE: DIP Switch EDID setting index on next page.
- Page 9 AC-DA14-AUHD EDID Settings: The 5 DIP switches are located on the side of the device, and each switch has two settings, 0 & 1 (UP=0, DOWN=1). The default mode is “00000” which is all up, in this mode the device copies the EDID from the sink (display) plugged into OUTPUT 1. Custom EDID settings are below. EDID DIP Settings: 00000: EDID COPY (See NOTE 1) 10000: 1080P_2CH(PCM)_HDR 00001: 1080P_2CH(PCM) 10001: 1080P_6CH_HDR 00010: 1080P_6CH 10010: 1080P_8CH_HDR 00011: 1080P_8CH 10011: 1080P_3D_2CH(PCM)_HDR 00100: 1080P_3D_2CH(PCM) 10100: 1080P_3D_6CH_HDR 00101: 1080P_3D_6CH 10101: 1080P_3D_8CH_HDR 00110: 1080P_3D_8CH 10110: 4K30Hz_3D_2CH(PCM)_HDR 00111: 4K30Hz_3D_2CH(PCM) 10111: 4K30Hz_3D_6CH_HDR 01000: 4K30Hz_3D_6CH 11000: 4K30Hz_3D_8CH_HDR 01001: 4K30Hz_3D_8CH 11001: 4K60Hz(Y420)_3D_2CH(PCM)_HDR 01010: 4K60Hz(Y420)_3D_2CH(PCM) 11010: 4K60Hz(Y420)_3D_6CH_HDR 01011: 4K60Hz(Y420)_3D_6CH 11011: 4K60Hz(Y420)_3D_8CH_HDR 01100: 4K60Hz(Y420)_3D_8CH 11100: 4K60Hz_3D_2CH(PCM)_HDR 01101: 4K60Hz_3D_2CH(PCM) 11101: 4K60Hz_3D_6CH_HDR 01110: 4K60Hz_3D_6CH 11110: 4K60Hz_3D_8CH_HDR 01111: 4K60Hz_3D_8CH 11111: Cascading Mode (See NOTE 2) EDID Setting Cont. (Notes):...
- Page 10 AC-DA14-AUHD Note1: EDID Copy mode: EDID will be copied from sink on OUTPUT 1. The AC-DA14-AUHD is set this way by default for maximum “Plug & Play” Compatibility. If you change sink (Display) plugged into OUTPUT 1, please follow the steps below if you wish to use the new sink’s EDID. Start with power off Set DIP to ‘00000’ (all up). Power on the unit Power on the source device and connect the HDMI input port. Note2: Cascading mode (Ideal for larger installations) Cascade mode does not react to the EDID from the sink device. It sends the signal that you put in, out. This is ideal for linking multiple units together. The method below is an ideal way to use this function effectively. To use cascading mode: Start with power off Fix an EDID on the FIRST unit in the series from the list above (4K60, 4K30, 1080P, etc…) Set the DIP on all subsequent units to “11111” (all down). Connect the source device Power up the system pg. 10 AVProEdge 2222 E 52nd Street N Sioux Falls, 57104~ 1.877.886.5112 +1.605.274.6055 ~...
- Page 11 AC-DA14-AUHD pg. 11 AVProEdge 2222 E 52nd Street N Sioux Falls, 57104~ 1.877.886.5112 +1.605.274.6055 ~ support@avproedge.com...
-
Page 12: Maintenance
• The unit has been exposed to rain • The unit does not operate normally or exhibits a marked change in performance • The unit has been dropped or the housing damaged pg. 12 AVProEdge 2222 E 52nd Street N Sioux Falls, 57104~ 1.877.886.5112... -
Page 13: Warranty
If your product does not work properly because of a defect in materials or workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts/Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. - Page 14 _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ pg. 14 AVProEdge ~ 2222 E 52nd Street N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com...
- Page 15 _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ pg. 15 AVProEdge ~ 2222 E 52nd Street N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com...
- Page 16 1 - 8 7 7 - 8 8 6 - 5 1 1 2 ~ 6 0 5 - 2 7 4 - 6 0 5 5 s u p p o r t @ a v p r o e d g e . c o m pg. 16 AVProEdge ~ 2222 E 52nd Street N Sioux Falls, SD 57104~ 1.877.886.5112 ~ +1.605.274.6055 ~ support@avproedge.com...
