AVProEdge ConferX AC-CX100-RAMP User Manual

Ip controllable 2 channel 25w amplifier with microphone, line, hdmi and hdbaset inputs, full 18gbps throughout (100m hdbaset 10.2 gbps) and on screen display
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

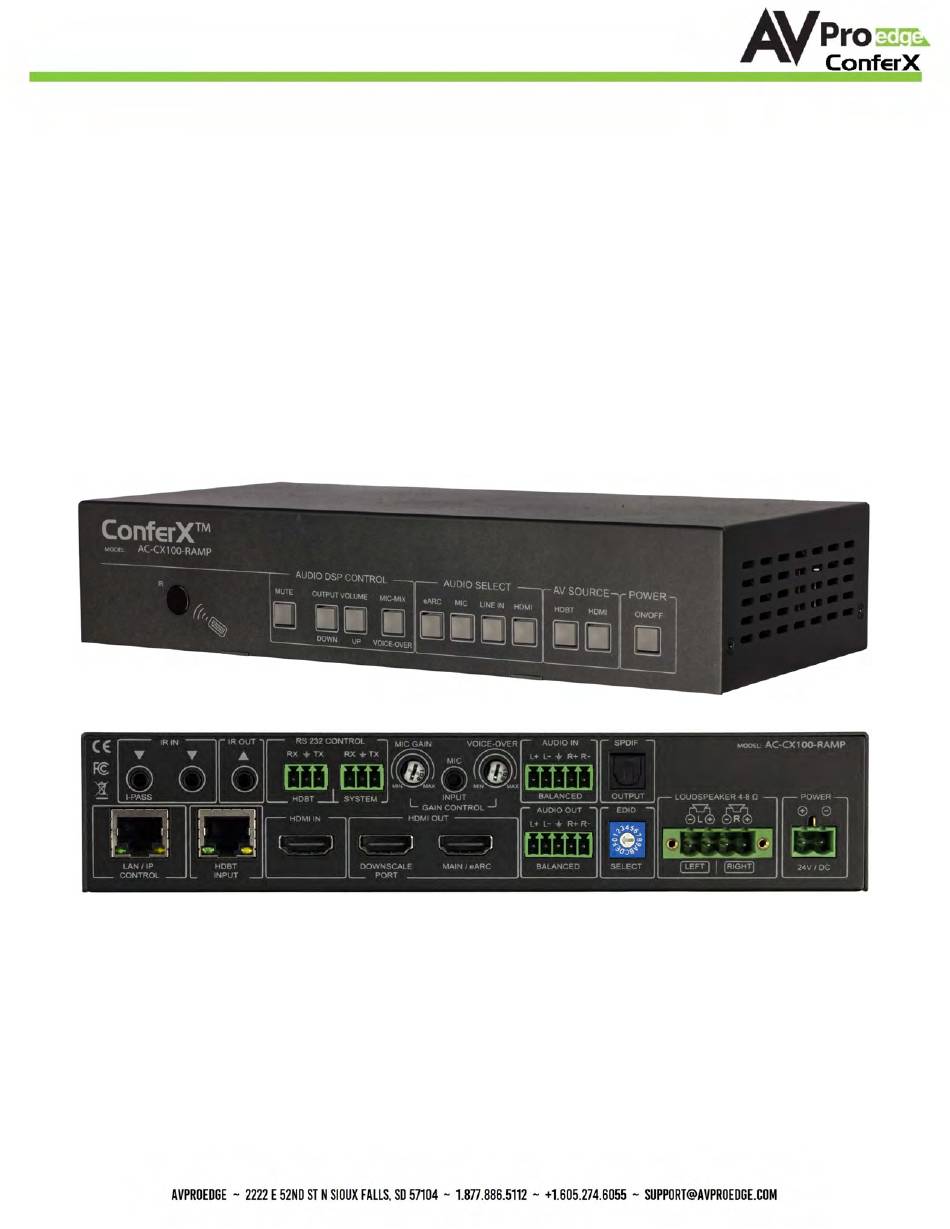

AC-CX100-RAMP
USER MANUAL
AC-CX100-RAMP
IP controllable 2 channel 25W Amplifier with
microphone, line, HDMI and HDBaseT inputs, Full
18Gbps throughout (100M HDBaseT 10.2 Gbps)
and On Screen Display
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ConferX AC-CX100-RAMP and is the answer not in the manual?

Questions and answers

Related Manuals for AVProEdge ConferX AC-CX100-RAMP

Summary of Contents for AVProEdge ConferX AC-CX100-RAMP

  • Page 1 AC-CX100-RAMP USER MANUAL AC-CX100-RAMP IP controllable 2 channel 25W Amplifier with microphone, line, HDMI and HDBaseT inputs, Full 18Gbps throughout (100M HDBaseT 10.2 Gbps) and On Screen Display Page 1...

  • Page 2: Product Overview

    AC-CX100-RAMP The newest addition to the ConferX lineup is the AC-CX100-RAMP. This multi-purpose device serves several functions in today's classroom, conference room and boardroom and includes an IP controllable 2 channel 25W Amplifier with microphone, line, HDMI and HDBaseT inputs, Full 18Gbps throughout (100M HDBaseT 10.2 Gbps).
  • Page 3 AC-CX100-RAMP Page 3...
  • Page 4 AC-CX100-RAMP Page 4...
  • Page 5 AC-CX100-RAMP  Device Feature Overview: • IP Controlled 25 Watt Per Channel Amplifier: Use any control system or webOS to control the amplifier, very easy to integrate into existing rooms and new builds. • Audio Delay up to 170 msec: This is used for correcting latency associated with eARC.

  • Page 6: Front Panel

    AC-CX100-RAMP  Front Panel AV Source Select Audio DSP Controls IR Receiving EYE Audio Select Power ON/OFF  • IR Window for control  Audio DSP Controls: • Mute: Toggle ON/OFF to mute extracted audio ports • Output Volume DOWN/UP: Increases/decreases, one button press equals 2dB •...

  • Page 7: Rear Panel

    AC-CX100-RAMP  Rear Panel RS-232 Gain Balanced Control Controls Audio IN Digital INPUTS Audio Out Loudspeaker Outputs LAN/IP Control Power HDBaseT EDID HDMI HDMI INPUT Select Balanced INPUT OUTPUTS Audio OUT  Video • HDMI IN: Supports up to 18Gbps HDMI Signals •...
  • Page 8 AC-CX100-RAMP  Audio • AUDIO IN: Balanced 2Ch Audio Input • MIC INPUT: 3.5mm Audio Input, for use with a dynamic microphone or any 2Ch device connected with a 3.5mm audio cable There are two adjustable POTS for adjusting the GAIN ...

  • Page 9: On Screen Display

    AC-CX100-RAMP  On Screen Display • From the Web Interface, you can turn the On Screen Display On, Off, and adjust the OSD DELAY (how long the On Screen Display is visible on the display). Top left of the OSD will show •...
  • Page 10 AC-CX100-RAMP  The AC-CX100-RAMP supports both ARC and eARC on TX0 (MAIN/eARC) HDMI port. There are two status indicators that will be either ON or OFF, depending on the connected displays capabilities • EARC STATUS: o ACTIVE o OFF • LEGACY ARC STATUS: If the connected display supports ARC and it is enabled this will show as ON o ACTIVE o OFF •...
  • Page 11 AC-CX100-RAMP  SETUP AND CONTROL From the Web Interface, you can turn view and change system information • POWER: Turn the AC-CX100-RAMP ON/OFF • SYSTEM ADDR: If utilizing more than one AC-CX100-RAMP each must have it's own unique address (01, 02, 03, etc.
  • Page 12 AC-CX100-RAMP  UPDATE: • FACTORY DEFAULTS will reset the AC-CX100-RAMP to it's factory settings • REBOOT UNIT will reboot the AC-CX100-RAMP • UPLOAD/Choose File is for updating the Firmware on the AC-CX100-RAMP Page 12...
  • Page 13 AC-CX100-RAMP IR Configuration ■ IR can be used in three ways: From Rack (Control System Direct): Plug a MONO 3.5mm cable into an emitter port of any control system directly into the "I-PASS" port on the AC-CX100-RAMP to pass IR signals directly to the remote end From Rack (Using IR-EYE): Plug an IR-Receiver Eye into the "IR IN"...
  • Page 14 AC-CX100-RAMP RS-232 Configuration ■ RS-232 can be used to pass control signals bi-directionally to & from any RS-232 compatible device. This is commonly 1. Control System --> Display/Projector (ie, Power On/Off) 2. Display/Projector --> Control System (ie, Display Status, Volume Status etc...) 3.

  • Page 15: Troubleshooting

    Verify Source is set to output 2ch if using the balanced 2ch port NOTE: This unit does NOT DOWNMIX • Still having issues, contact us o Support Direct - +1-605-977-3477 o All inquiries - + 1-605-274-6055 o Submit a support request ticket  https://support.avproedge.com/hc/en-us/requests/new Page 15...

  • Page 16: Maintenance

    AC-CX100-RAMP  Maintenance To ensure reliable operation of this product as well as protecting the safety of any person using or handling this device while powered, please observe the following instructions. • Use the power supplies provided. If an alternate supply is required, check voltage, polarity and that it has sufficient power to supply the device it is connected to.

  • Page 17: Warranty

    If your product does not work properly because of a defect in materials or workmanship, AVProEdge (referred to as “the warrantor”) will, for the length of the period indicated as below, (Parts/ Labor (10) Years), which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product.
  • Page 18 AC-CX100-RAMP Page 18...
  • Page 19 AC-CX100-RAMP Page 19...
  • Page 20 AC-CX100-RAMP Thank you for choosing AVProEdge! Please contact us with any questions, we are happily at your service! AVProEdge 2222 E 52nd St N ~ Sioux Falls, SD 57104 1-877-886-5112 ~ 605-274-6055 support@avproedge.com Page 20...
