980 HDMI Protocol Analyzer Application Guide – Source Compliance Test Automation

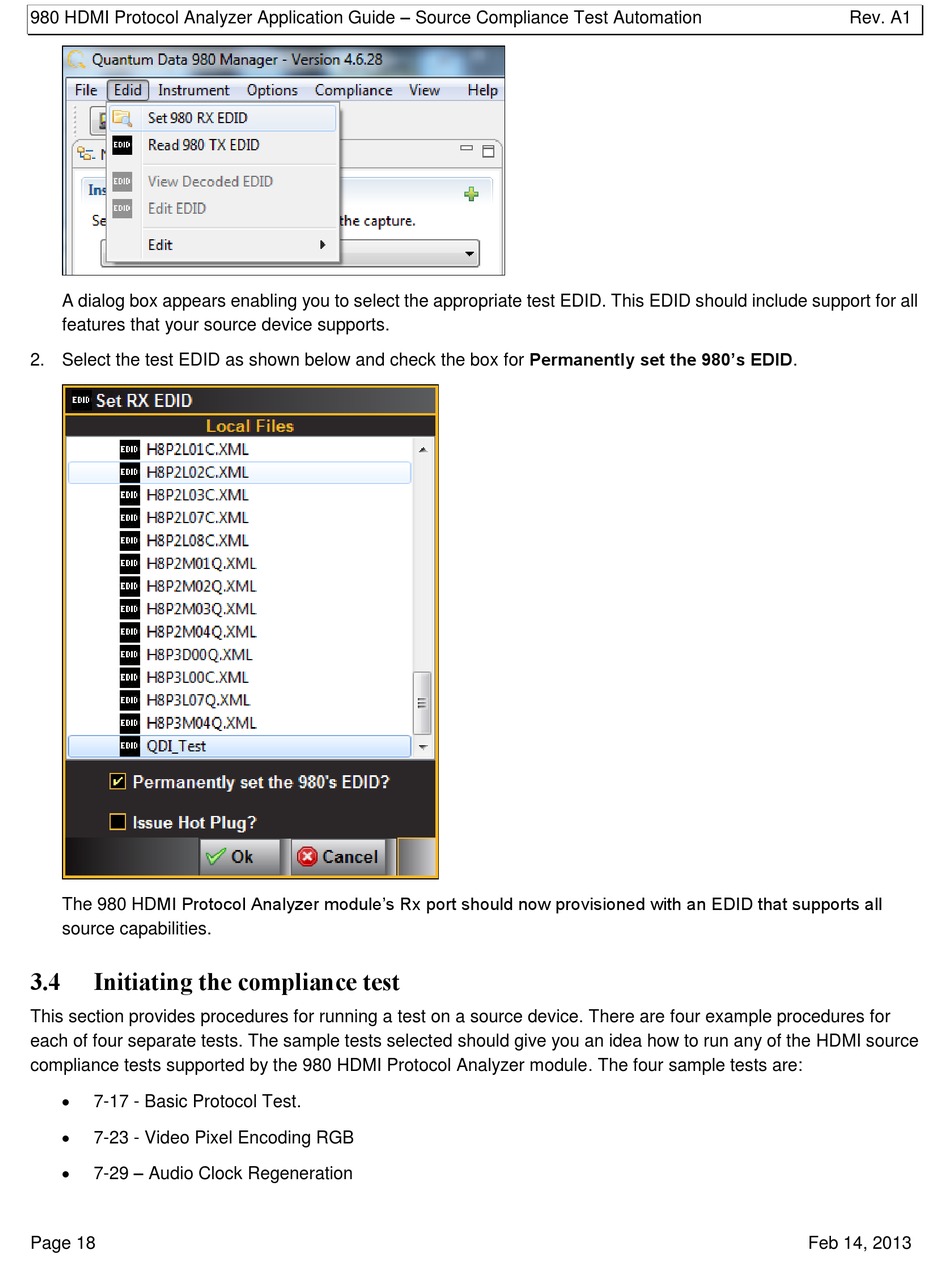

A dialog box appears enabling you to select the appropriate test EDID. This EDID should include support for all
features that your source device supports.
2. Select the test EDID as shown below and check the box for Permanently set the 980's EDID.
The 980 HDMI Protocol Analyzer module's Rx port should now provisioned with an EDID that supports all
source capabilities.
3.4

Initiating the compliance test

This section provides procedures for running a test on a source device. There are four example procedures for
each of four separate tests. The sample tests selected should give you an idea how to run any of the HDMI source
compliance tests supported by the 980 HDMI Protocol Analyzer module. The four sample tests are:

7-17 - Basic Protocol Test.

7-23 - Video Pixel Encoding RGB

7-29 – Audio Clock Regeneration
