Installation Guide
ATS-NL-IC-ENC-15153
Introduction
This is a quick guide for the AccelTex

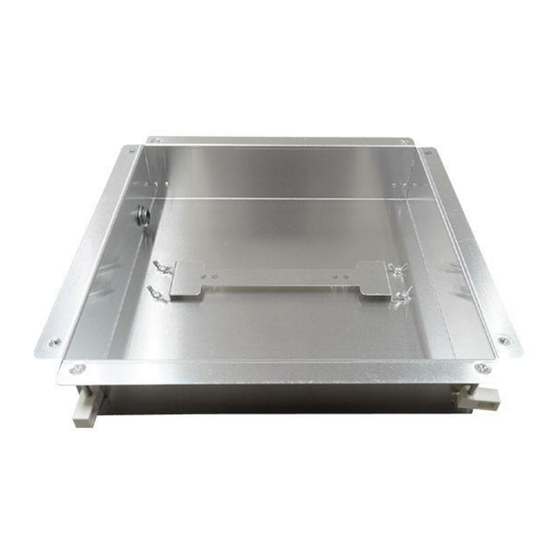

15"x15"x3" Non-Ligature Enclosure. This can
be flush mounted in a ceiling or a wall.
Step 2
Separate the cover from the metal AP
mounting box using the provided allen
wrench.
Step 1

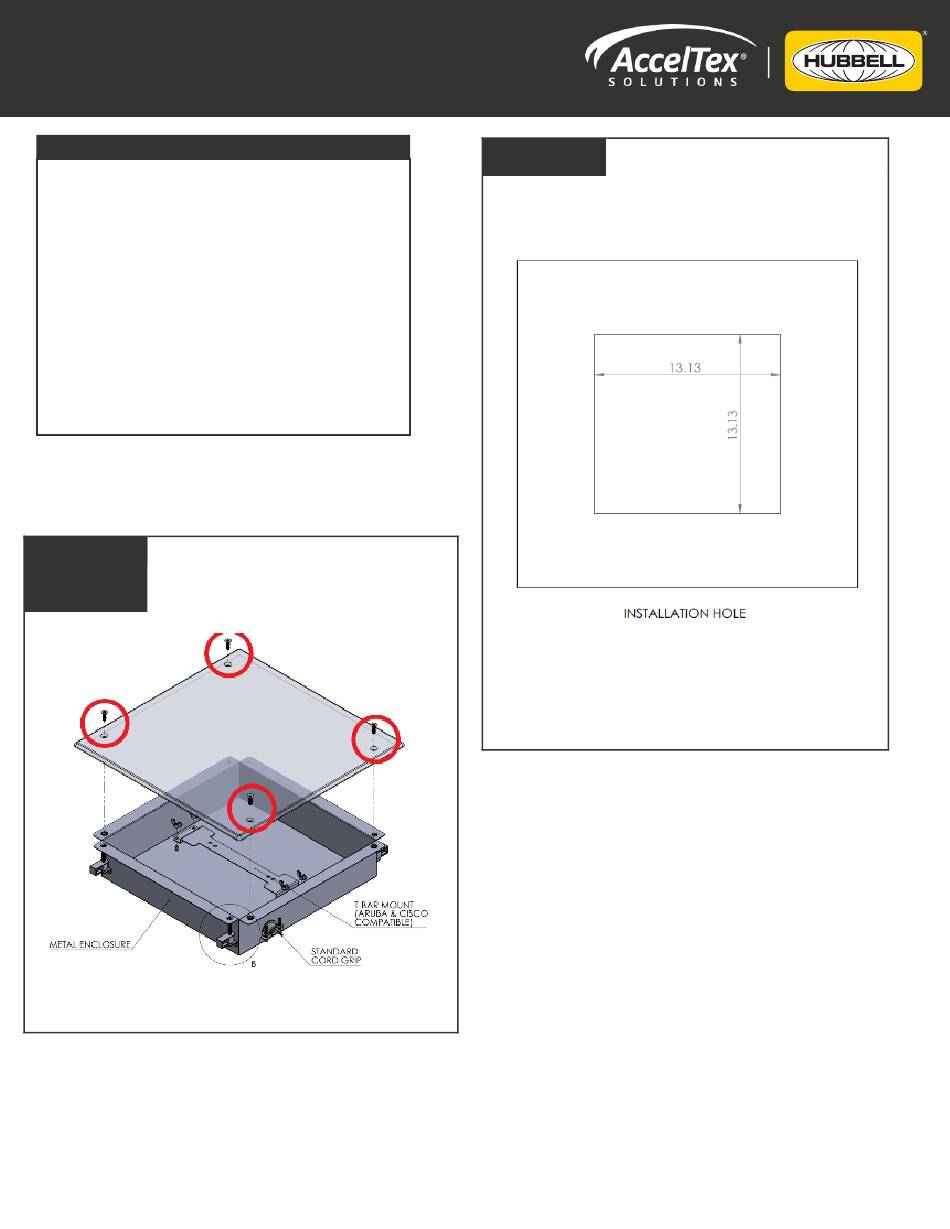

Cut a square hole in the ceiling according to the
dimensions in the drawing below.
The facts and figures herein are carefully compiled to the best of our knowledge and
are intended for general informational purposes only. Responsibility for the use and
application of AccelTex Solutions materials rests with the end user ©2023 AccelTex
Solutions. All Rights Reserved.
