Gravity-Discharge Toilet
EN
Operation manual

Table of contents

General safety instructions . . . . . . . . . . . . . . 2
Toilet model identification . . . . . . . . . . . . . . . 2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Winterization and storage . . . . . . . . . . . . 4 - 5
Deodorants and special tissue . . . . . . . . . . . 5
Customer service . . . . . . . . . . . . . . . . . . . . . 5
Troubleshooting . . . . . . . . . . . . . . . . . . . . 6 - 7
Limited warranty . . . . . . . . . . . . . . . . . . . . . . 8
500 Series
Toilets

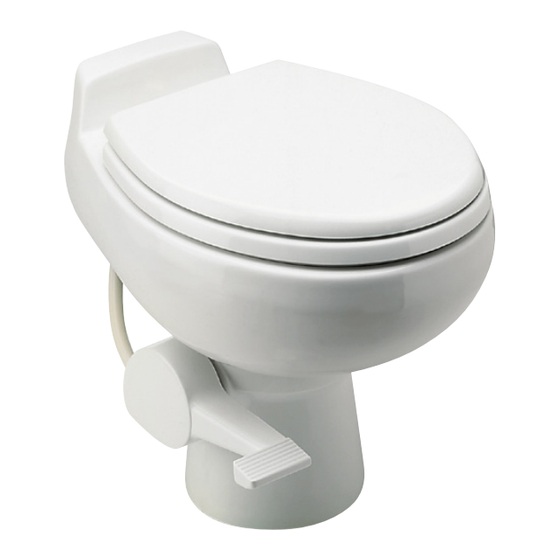

Model 111
Toilet
Specifications
Fitting
Water
Supply
Flow rate
Floor
Discharge
flange
Specifications subject to change without notice .
1
0 .5 in . NPT
2 .0 gpm / 9 .5 lpm
minimum
3 in ./76 mm ID ABS or
PVC flange connection
directly over waste
holding tank

Advertisement

Table of Contents
loading

Related Manuals for Dometic 111

Summary of Contents for Dometic 111

  • Page 1: Table Of Contents

    Gravity-Discharge Toilet Operation manual 500 Series Model 111 Toilets Toilet Table of contents General safety instructions . . . . . . . . . . . . . . 2 Specifications Toilet model identification .

  • Page 2: General Safety Instructions

    (see page 5) . Operation To prepare the Dometic toilet for use, check to be sure water supply to the toilet is connected . Turn on water supply and check system for leaks . Flush toilet and check for leaks .

  • Page 3: Installation

    3/4" wide bead of glazing compound around the circum- ference of the floor flange (Figure C) . 5 . Dometic toilet models 111, 510 and 511 will accept handicap Fig. C or household decorative seats . Remove existing seat and replace with new seat if desired .

  • Page 4: Cleaning

    . 2 . If step 1 does not fully clean the ball and seal, clean with a soft bristle brush and Dometic Toilet Bowl Cleaner . Turn off water supply to toilet . Fully clean the top of the flush ball and under the seal where it contacts the flush ball .

  • Page 5: Deodorants And Special Tissue

    “ultra-low flow” systems can cause system clogging . Dometic tissue is especially designed for use in low water toilet systems . Its rapid dissolving properties minimize the amount of residual paper in the holding tank and allow deodorizers to work more efficiently .

  • Page 6: Troubleshooting

    Service Instructio 1 . Toilet emits odor (flush ball a . Odor emitting from base of toilet . a . Use Dometic brand deodorants . open) . b . Plugged holding tank vent line . b . Clear obstruction from vent line .
  • Page 7 . (Applies to ball rotation . toilet base back . If this does not short-base units installed on solve issue, install a Dometic a step or riser.) Universal Mounting Kit (item no . 385310139 or 385319140) with existing floor flange .

  • Page 8: Limited Warranty

    90 days from the date of purchase . 1D . This warranty covers all parts of the Dometic toilet which is warranted to be free of defects in material and workmanship under normal use .
