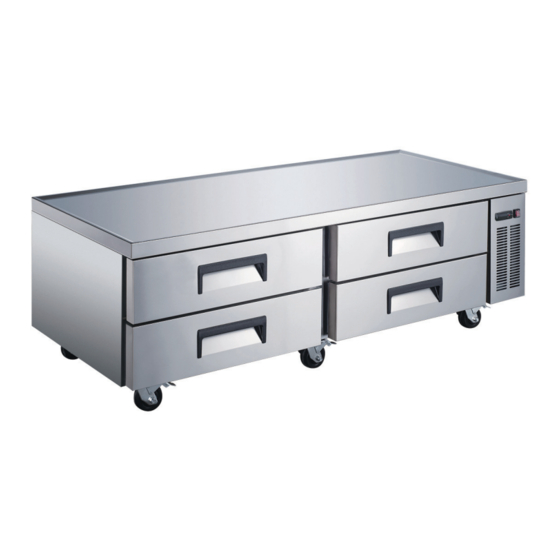

- Page 1 Refrigerated Cabinets Models RE-CN-0036-C, 0052-C, 0072-C Items 50070, 50071, 50072 Instruction Manual Revised - 08/31/2022 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model RE-CN-0036-C / Model RE-CN-0052-C / Model RE-CN-0072-C Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 7 Technical Specifications -------------------------------------------------------------------------- 7 Installation -------------------------------------------------------------------------------------- 7 - 11 Operation -------------------------------------------------------------------------------------------- 11... -
Page 3: Disclaimer
Disclaimer OMCAN IS NOT RESPONSIBLE FOR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO A FLOOR DRAIN. -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not...
-
Page 7: Technical Specifications
Safety and Warranty Please see https://omcan.com/disclaimer for complete info. WARNING: The packaging components are classified as normal solid urban waste and can therefore be disposed of without difficulty. In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms. -
Page 8: Installation
Installation plugging it in. • Make sure that the unit drops down to desired temperature before loading the unit with product. • Maker sure that there is proper ventilation around the unit in the area where it will operate. • Make sure all accessories are installed (i.e. - Page 9 Installation • Lamps must be replaced by identical lamps only. ELECTRICAL INSTRUCTIONS • Before your new unit is connected to a power supply, check the incoming voltage with a voltmeter. If anything less than 100% of the rated voltage for operation is noted, correct immediately. •...
- Page 10 Installation 3. Lift drawer and remove from channel. INSTALLATION 1. Lower rear rollers into channel slots. 2. Make two side tracks of drawer horizontal, lower front rollers into channel.
-
Page 11: Operation
Installation 3. Make sure drawer tracks are in the right position. Operation STARTUP • The compressor is ready to operate. Plug in the cooler. • DIGITAL THERMOSTAT are factory-set to give refrigerators an approximate temperature of 35°F, Allow unit to function several hours, completely cooling cabinet before changing the control setting. Temperature Control Location and Settings. - Page 12 Maintenance • For efficient operation, it is important that the condenser surface be kept free of dust, dirt, and lint. Condensers accumulate dirt and dust and require cleaning every 30 days. • We recommend cleaning the condenser coil and fins at least once per month. •...
-
Page 13: Troubleshooting
Maintenance 8. Regularly restore/passivate stainless steel. Troubleshooting Problem Cause Remedy Compressor not running. Fuse blown or circuit breaker Replace fuse or reset circuit tripped. breaker. Power cord unplugged. Plug in power cord. Thermostat set too high. Set thermostat to lower temperature. - Page 14 Troubleshooting Cabinet temperature is too warm. Thermostat set too warm. Set thermostat to lower temperature. Blocking air flow. Re-arrange product to allow for proper air flow. Excessive amount of warm product Make sure there is at least placed in cabinet. four inches of clearance from evaporator.
-
Page 15: Parts Breakdown
Parts Breakdown Model RE-CN-0036-C 50070... - Page 16 Parts Breakdown Model RE-CN-0036-C 50070 Item No. Description Position Item No. Description Position Item No. Description Position AA108 Cabinet for 50070 AA120 Blade of Evaporator Fan Motor for 50070 AF182 Compressor for 50070 Evaporator Fan Motor EM3020-28-C04 / AA109 Top Board for 50070...
- Page 17 Parts Breakdown Model RE-CN-0052-C 50071...
- Page 18 Parts Breakdown Model RE-CN-0052-C 50071 Item No. Description Position Item No. Description Position Item No. Description Position AA140 Cabinet for 50071 AA120 Blade of Evaporator Fan Motor for 50071 AF182 Compressor for 50071 Evaporator Fan Motor EM3020-28-C04 / AA141 Top Board for 50071 68809 AF087 Outer Drain Pan for 50071...
- Page 19 Parts Breakdown Model RE-CN-0072-C 50072...
- Page 20 Parts Breakdown Model RE-CN-0072-C 50072 Item No. Description Position Item No. Description Position Item No. Description Position AA161 Cabinet for 50072 AA120 Blade of Evaporator Fan Motor for 50072 AF088 Compressor for 50072 Evaporator Fan Motor EM3020-28-C04 / AA162 Top Board for 50072 68809 AF087 Outer Drain Pan for 50072...
-
Page 21: Electrical Schematics
Electrical Schematics Model RE-CN-0036-C 50070... - Page 22 Electrical Schematics Model RE-CN-0052-C 50071...
- Page 23 Electrical Schematics Model RE-CN-0072-C 50072...
-
Page 24: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 25 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
- Page 26 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 27: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 28 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
