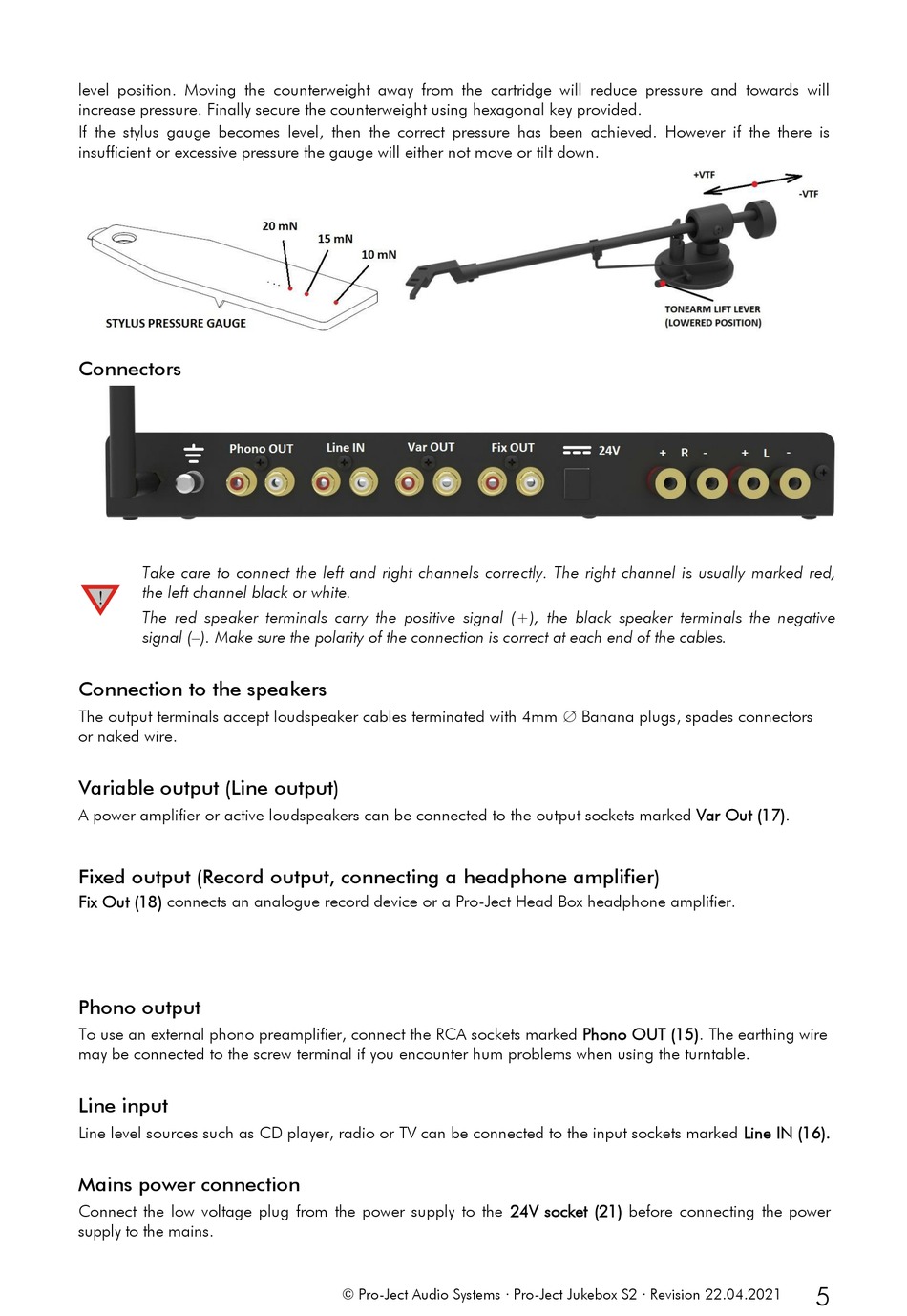

level position. Moving the counterweight away from the cartridge will reduce pressure and towards will

increase pressure. Finally secure the counterweight using hexagonal key provided.

If the stylus gauge becomes level, then the correct pressure has been achieved. However if the there is

insufficient or excessive pressure the gauge will either not move or tilt down.

Connectors

Take care to connect the left and right channels correctly. The right channel is usually marked red,

the left channel black or white.

The red speaker terminals carry the positive signal (+), the black speaker terminals the negative

signal (–). Make sure the polarity of the connection is correct at each end of the cables.

Connection to the speakers

The output terminals accept loudspeaker cables terminated with 4mm  Banana plugs, spades connectors

or naked wire.

Variable output (Line output)

A power amplifier or active loudspeakers can be connected to the output sockets marked Var Out (17).

Fixed output (Record output, connecting a headphone amplifier)

Fix Out (18) connects an analogue record device or a Pro-Ject Head Box headphone amplifier.

Phono output

To use an external phono preamplifier, connect the RCA sockets marked Phono OUT (15). The earthing wire

may be connected to the screw terminal if you encounter hum problems when using the turntable.

Line input

Line level sources such as CD player, radio or TV can be connected to the input sockets marked Line IN (16).

Mains power connection

Connect the low voltage plug from the power supply to the 24V socket (21) before connecting the power

supply to the mains.
