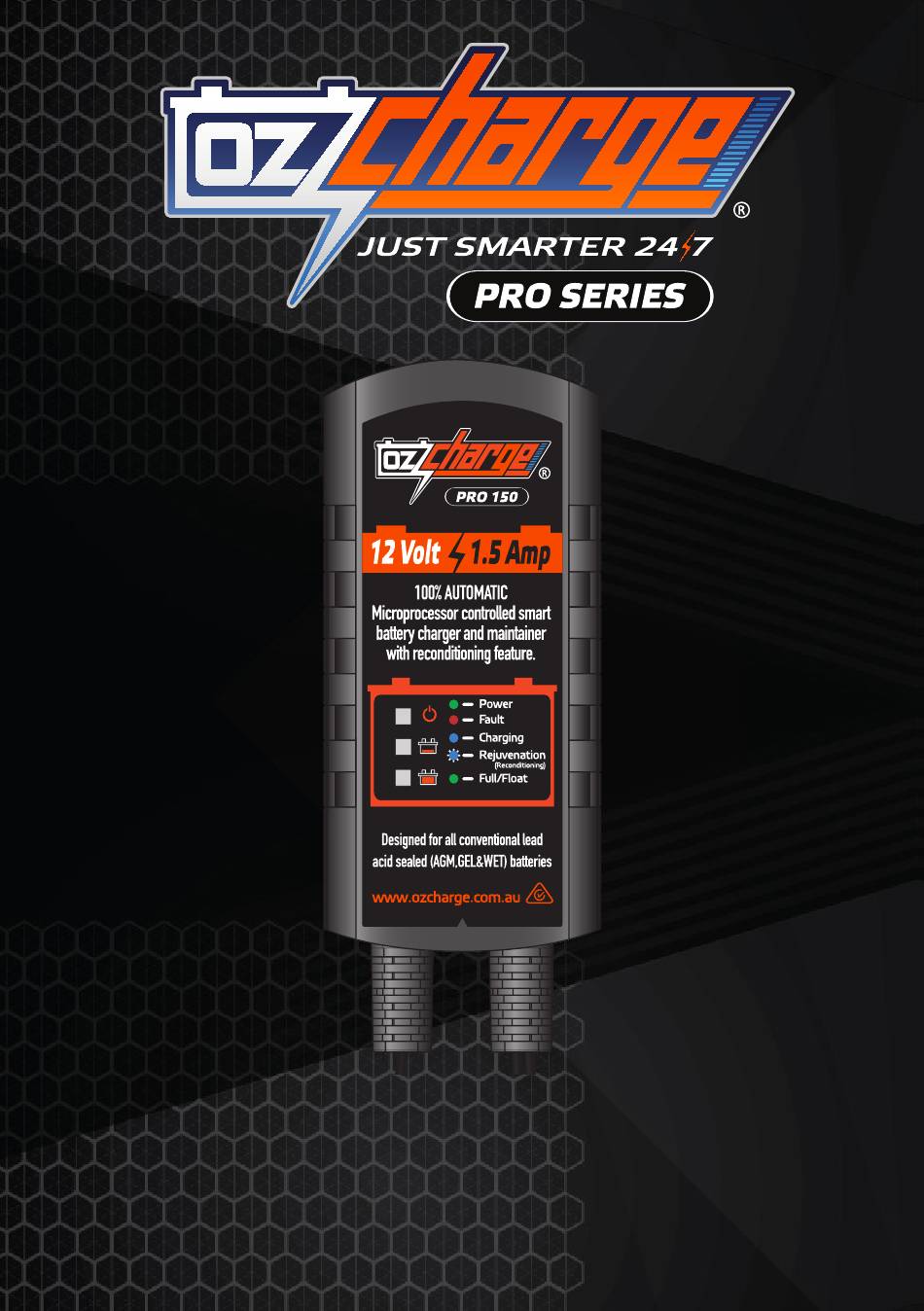

- Page 1 Model: OC-PRO150 OWNER’S MANUAL AUSTRALIAN & NEW ZEALAND STANDARD AS/NZS 60335.2.29 APPROVED...
-
Page 2: Important Safety Advice And Warnings

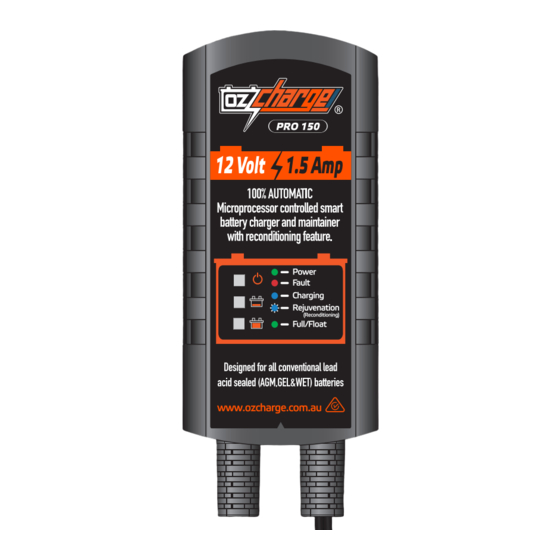

Congratulations on purchasing the Oz Charge OC-PRO150 fully automatic switched mode 12 Volt / 1.5 Amp battery charger, maintainer and rejuvenator. Please take the time to carefully read and understand this manual before using this product. IMPORTANT SAFETY ADVICE AND WARNINGS The charger is designed to charge 12V lead-acid batteries from 5Ah to 35Ah. - Page 3 This can be used to hang the charger on a wall or motorcycle handlebars. The mounting hook conveniently folds back into the unit when not in use. BLACK 2 • Oz Charge manual www.ozcharge.com.au...
-
Page 4: Temperature & Safety Protection
Some batteries may be able to handle a higher charge current. Refer to the battery manufacturers specifications and recommendations for your charging requirements. Battery Capacity: Charging 5 - 35Ah Battery Capacity: Maintaining 5 - 120 Ah 3 • Oz Charge manual www.ozcharge.com.au... -
Page 5: Electrical Parts & Accessories
1.2m with quick connect Charging Leads: Quick connect 60cm Crocodile Clip Harness Quick connect 60cm Ring Terminal Harness Accessory: State of charge indicator TECHNICAL SPECIFICATIONS: Model Number OC-PRO150 Output 1500mA @ 12V Input Voltage 100-240Vac / 0.4A(24W) Input Frequency 50/60Hz Charge Voltage 14.4V... - Page 6 The charger will automatically start when AC power is connected and switched on. Note: If the Fault Indicator LED illuminates Red, please check your connections as it’ s likely that the Positive and Negative Leads are reversed. Refer to Trouble Shooting Page for further information. 5 • Oz Charge manual www.ozcharge.com.au...
-
Page 7: The Charging Process
8) Long Term Maintenance - Full / Float Green LED ON During long term maintenance / float mode, the unit will apply a special pulse charge to ensure the battery is kept in optimal condition. 6 • Oz Charge manual www.ozcharge.com.au... - Page 8 Rejuvenation (Reconditioning) or Soft start charging Blue Bulk charge or Absorption charging Yellow Battery is flat (less than 3V) or Battery failed analysis test Full LED -Green Green Fully charged - Float / Maintenance mode 7 • Oz Charge manual www.ozcharge.com.au...
- Page 9 8 • Oz Charge manual www.ozcharge.com.au...
-
Page 10: Troubleshooting
- Battery is - Battery may need replacement. defective - Battery is severely sulphated REPLACEMENT PARTS For the full range of replacement parts and accessories, please visit our website: www.ozcharge.com.au. / www.ozcharge.co.nz 9 • Oz Charge manual www.ozcharge.com.au... -
Page 11: Year Product Warranty
Service help phone: Within Australia (03) 9482 2203 Outside of Australia: +61 3 9482 2203 Website: www.ozcharge.com.au / www.ozcharge.co.nz If the Authorised Supplier and / or Oz Charge service centre concludes that while under normal use, a product failure or malfunction occurred during the warranty period and was caused by a defect in material or workmanship (see Exclusions), the Customer will be asked to ship to the nearest service point for repair or replacement, at our discretion. - Page 12 SAA Approval No. GMA-506599-EA OC-PRO150 Owner’s Manual: Rev 1.1 - 10/20 - Specifications subject to change without notice.
