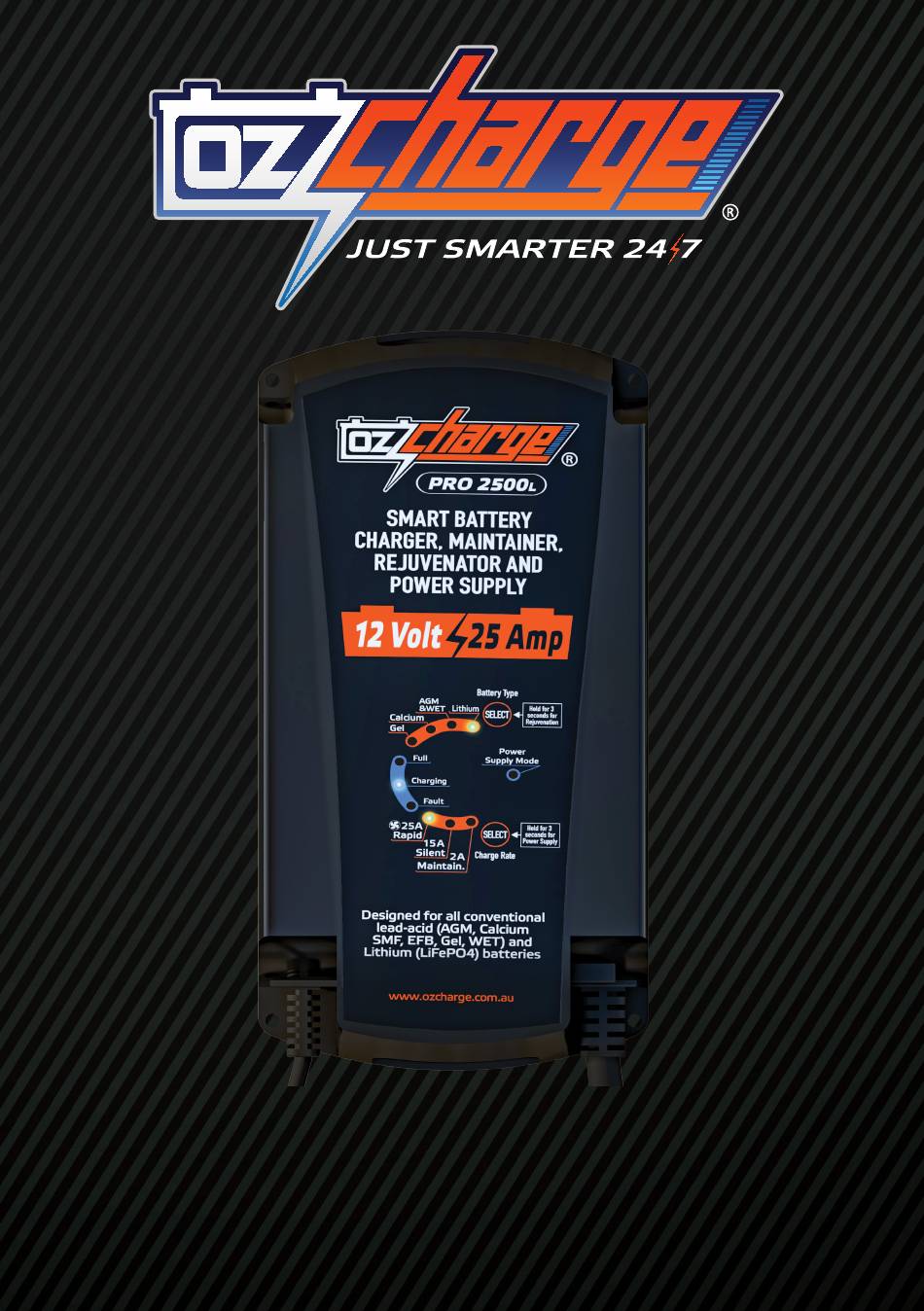

- Page 1 Model: OC1206U / OC1212U Model: OC-PRO2500L OWNER’S MANUAL OWNER’S MANUAL AUSTRALIAN & NEW ZEALAND STANDARD AS/NZS 60335.2.29 APPROVED AUSTRALIAN & NEW ZEALAND STANDARD AS/NZS 60335.2.29 APPROVED...
-
Page 2: Important Safety Advice And Warnings
The battery charger is easy to use and requires no technical experience. • • Fully microprocessor controlled with safety timers at every stage. • Battery condition analysis. • Selectable battery type. • Selectable charge rate / mode. 1 • Oz Charge manual www.ozcharge.com.au... - Page 3 Power Supply Mode: Press & Hold the Charge Rate button for 3 seconds to activate and de- activate Power Supply Mode. When in Power Supply Mode, the Power Supply Mode LED and 25A LED will be ON. Power supply mode is only required if you don’t have any batteries. 2 • Oz Charge manual www.ozcharge.com.au...
-
Page 4: Temperature & Safety Protection
The Ah (Ampere-hour) capacities shown below are to be used as a general guide only. Some batteries may be able to handle a higher charge current. Refer to the battery manufacturers specifications and recommendations for your charging requirements. OC-PRO2500L Charge Rate: Charging... -
Page 5: Electrical Parts & Accessories
1.5m Integrated Crocodile Clips / Ring Terminals with Temperature Compensation extension sensor. Note: To use the ring terminals you’ll need an Alan key to remove the bolts from the crocodile clips TECHNICAL SPECIFICATIONS: Model Number OC-PRO2500L Output 25A @ 12V DC Input Voltage 220-240Vac / 3.0A... - Page 6 Charge Rate is selected to suit your battery once the unit is turned on as per STEP 1. Note: If the Fault Indicator LED illuminates Red, please check your connections as it’s likely • that the Positive and Negative Leads are reversed. 5 • Oz Charge manual www.ozcharge.com.au...
- Page 7 100% fully charged. Float mode will maintain the battery at a constant 13.6V. 9) Long Term Maintenance - Full Green LED ON During long term maintenance / float mode, the unit will apply a special pulse charge to ensure the battery is kept in optimal condition. 6 • Oz Charge manual www.ozcharge.com.au...
- Page 8 (3) Remove the lead from the battery. Note: Check electrolyte levels if possible after charging as they may need topping up with distilled water. (This does not apply to Sealed Maintenance Free batteries and Lithium type batteries) 7 • Oz Charge manual www.ozcharge.com.au...
- Page 9 Reverse Polarity or Short Circuit Error Flash Final Analysis Sulphation / Shorted cell check fail. Over Temperature Protection Power Supply Mode Description LED Indicators Power Supply Fault Mode Power Supply Mode is ON. Reverse Polarity / Short Circuit 8 • Oz Charge manual www.ozcharge.com.au...
- Page 10 9 • Oz Charge manual www.ozcharge.com.au...
-
Page 11: Troubleshooting
2V) for the charger to start. Otherwise check all connections from the charger to the battery. OPTIONAL / REPLACEMENT PARTS This unit supports a wired LCD Remote Display. Model: OC-PRORDP. For the full range of replacement parts and accessories, please visit our website: www.ozcharge.com.au / www.ozcharge.co.nz 10 • Oz Charge manual www.ozcharge.com.au... - Page 12 It is recommended that returned products be sent by registered mail as OzCharge Australia Pty. Ltd. (Oz Charge) accepts no responsibility / liability for goods lost or damaged in transit.
