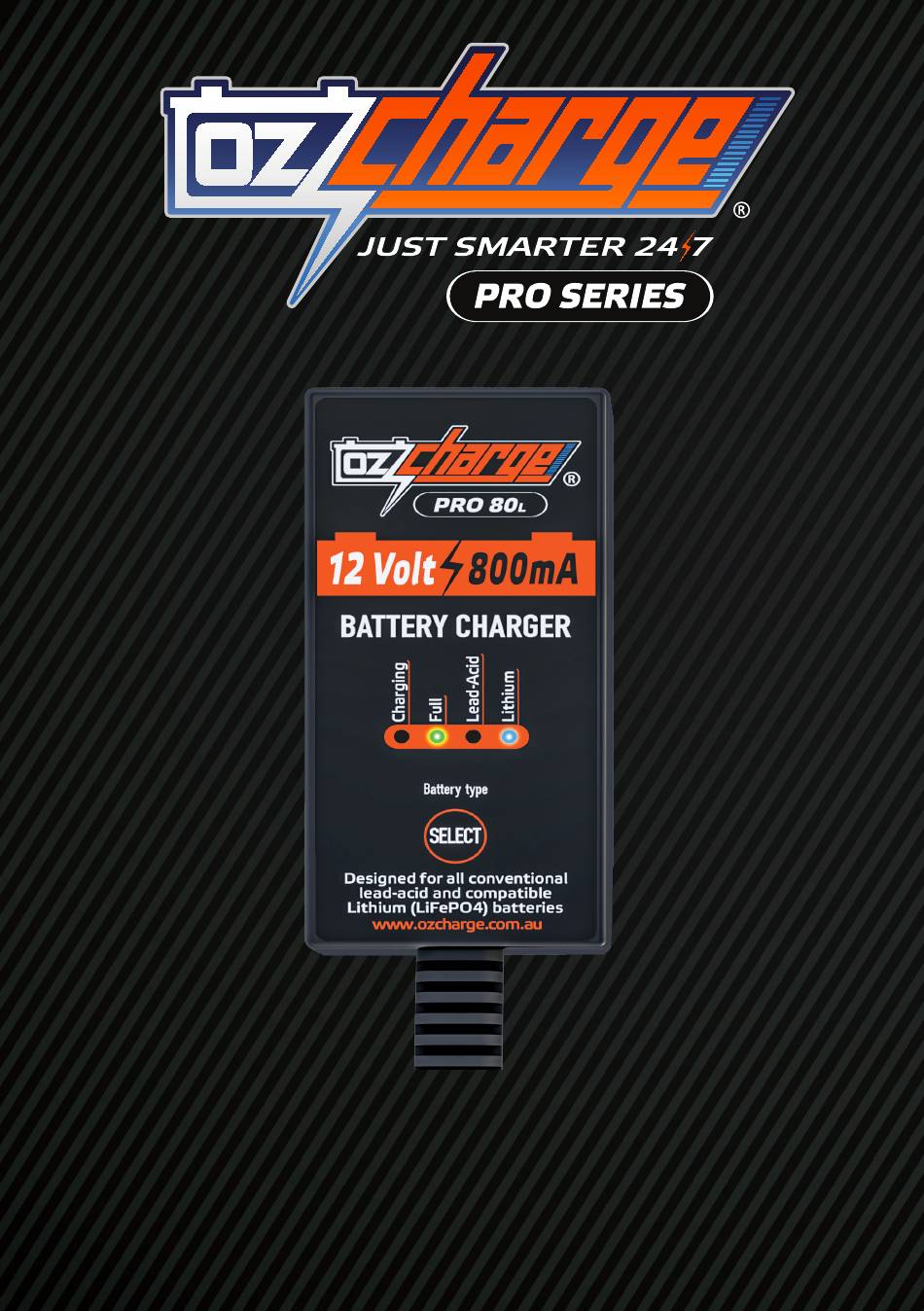

- Page 1 Model: OC-PRO80L OWNER’S MANUAL AUSTRALIAN & NEW ZEALAND STANDARD AS/NZS 60335.2.29 APPROVED...
-
Page 2: Important Safety Advice And Warnings
If using a generator, you must ensure you use a surge protector to protect the charger from voltage spikes. • The charger must not be used or played with by infirm persons or children. Also keep it away from any pets. 1 • Oz Charge manual www.ozcharge.com.au... -
Page 3: Main Features
To detach the crocodile clips from the ring terminal harness, use a phillips head screw driver and remove the screws. 2 • Oz Charge manual www.ozcharge.com.au... -
Page 4: Temperature & Safety Protection
Some batteries may be able to handle a higher charge current. Refer to the battery manufacturers specifications and recommendations for your charging requirements. Battery Capacity: Charging 2 - 20Ah (150 CCA) Battery Capacity: Maintaining 2 - 80 Ah (600 CCA) 3 • Oz Charge manual www.ozcharge.com.au... -
Page 5: Electrical Parts & Accessories
LED for Lead Acid type battery selection. For compatible Lithium-ion (LiFePO4) batteries, press the battery select button to illuminate the Blue LED for Lithium type battery selection. Charging Full Lead Acid Battery Select Button Lithium 4 • Oz Charge manual www.ozcharge.com.au... - Page 6 Red/Orange (+) Crocodile clip BLACK or ring terminal lead to the vehicle’s chassis or positive (+) battery termninal. DO NOT connect the Red /Orange (+) lead to the CONNECTION IN VEHICLE carburettor or fuel lines. POSITIVELY EARTHED 5 • Oz Charge manual www.ozcharge.com.au...
- Page 7 7) Float Mode - Full Green LED ON This stage allows you to keep the charger connected 24/7 to ensure your battery is well maintained and kept 100% fully charged. Float mode will maintain the battery at a constant 13.6V. 6 • Oz Charge manual www.ozcharge.com.au...
- Page 8 (3) Remove the lead from the battery. Note: Check electrolyte levels if possible after charging as they may need topping up with distilled water. (This does not apply to Sealed Maintenance Free batteries and Lithium type batteries) 7 • Oz Charge manual www.ozcharge.com.au...
- Page 9 AC Power on - no battery connected / detected Slow Flash Lithium Activation Flash Soft Start Charging Bulk Charging Absorption Charging Reverse Polarity, Soft Start or Bulk Charging time Flash Flash Flash out error Fully Charged 8 • Oz Charge manual www.ozcharge.com.au...
- Page 10 9 • Oz Charge manual www.ozcharge.com.au...
-
Page 11: Troubleshooting
Battery needs to be checked out or replaced. REPLACEMENT PARTS For the full range of replacement parts and accessories, please visit our website: www.ozcharge.com.au. / www.ozcharge.co.nz / www.ozcharge.com 10 • Oz Charge manual www.ozcharge.com.au... - Page 12 It is recommended that returned products be sent by registered mail as OzCharge Australia Pty. Ltd. (Oz Charge) accepts no responsibility / liability for goods lost or damaged in transit.
