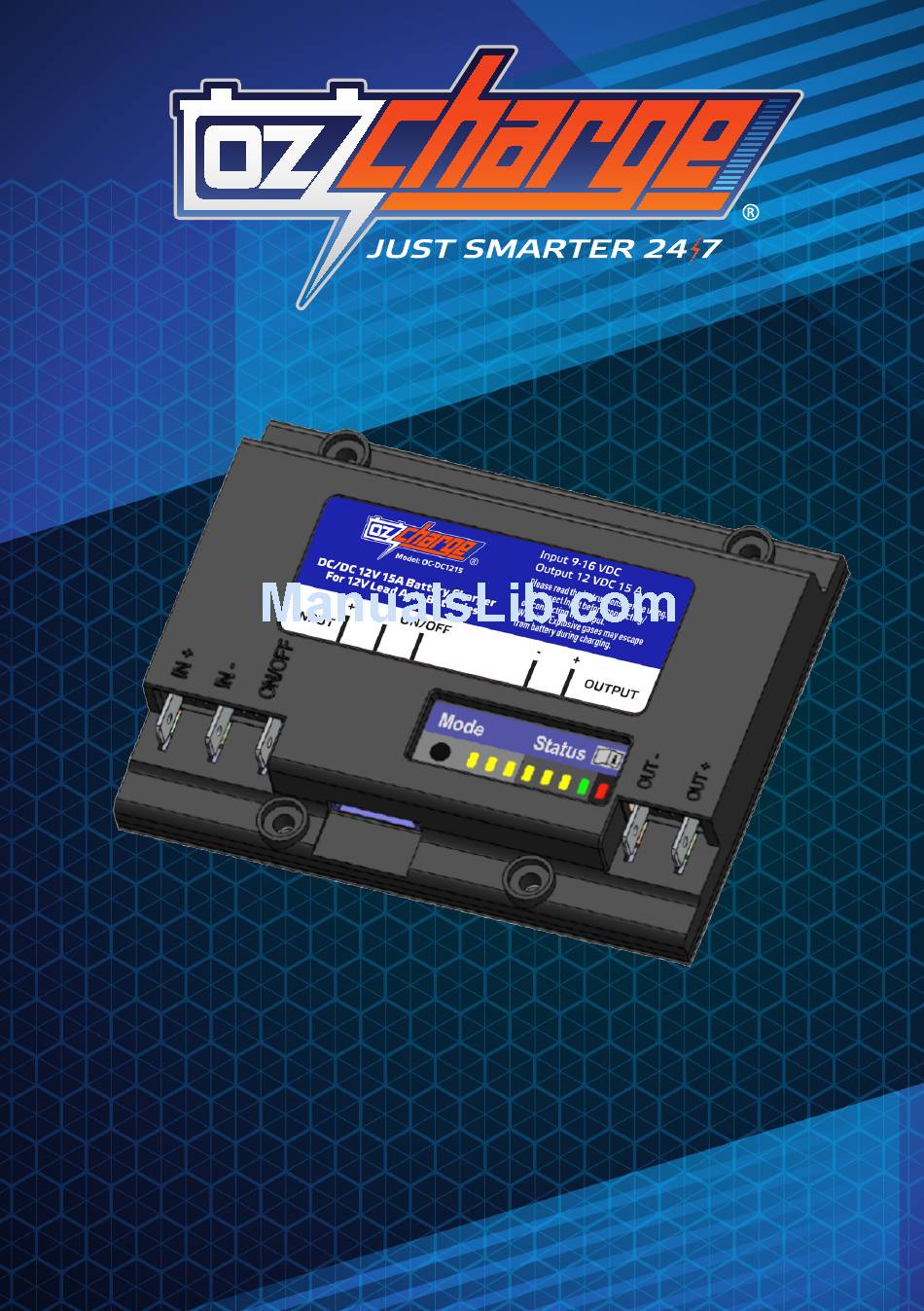

- Page 1 Model: OC-DC1215 OWNER’S MANUAL 12V / 15A DC/DC Battery Charger OWNER’S MANUAL Suitable for all Conventional lead-acid batteries (VRLA), AGM, CALCIUM, GEL & WET.
- Page 2 1 • Oz Charge manual www.ozcharge.com.au...
-
Page 3: Important Safety Advice And Warnings
• Fully microprocessor controlled with safety timers at every stage. • Selectable battery type. • Small and Compact. • Over temperature protection. • Short circuit and reverse polarity protection. • High Efficiency > 95%. 2 • Oz Charge manual www.ozcharge.com.au... -
Page 4: Technical Specifications
The Oz Charge OC-DC1215 DC/DC charger is designed to convert a DC voltage to a controlled charging algorithm. Note: The Negative ( -ive) Input and Output is isolated. If the system doesn’t require such isolation, please connect them to the same power source. -
Page 5: Wiring Diagram
< 0.5m 1.3mm / 16AWG < 2.0m 1.6mm / 15AWG < 1.0m 2.6mm / 14AWG < 3.0m 2.1mm / 14AWG < 1.5m 3.8mm / 12AWG < 6.0m 2.6mm / 13AWG < 2.0m 5.1mm / 11AWG 4 • Oz Charge manual www.ozcharge.com.au... -
Page 6: Temperature & Safety Protection

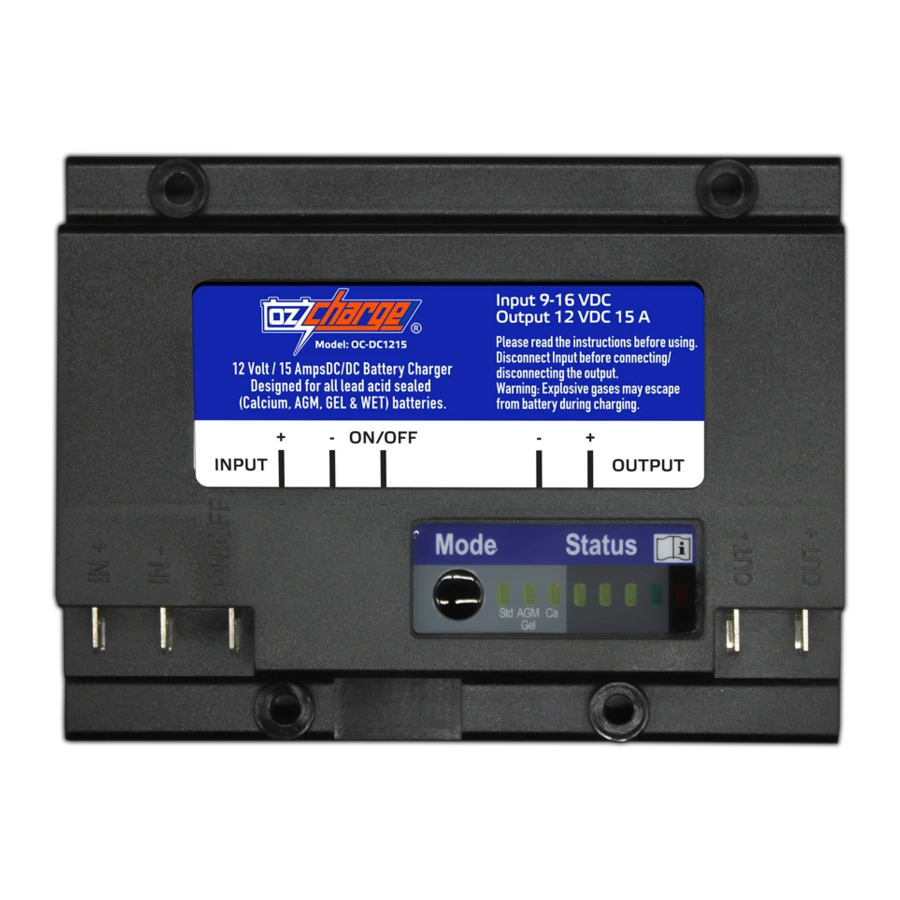

Input 9-16 VDC Output 12 VDC 15 A Please read the instructions before using. 5 • Oz Charge manual www.ozcharge.com.au Disconnect Input before connecting/ 12 Volt / 15 AmpsDC/DC Battery Charger disconnecting the output. Designed for all lead acid sealed Warning: Explosive gases may escape (Calcium, AGM, GEL &... -
Page 7: The Charging Process
4) Float Mode - Fully Charged This stage allows you to keep the charger connected 24/7 to ensure your battery is well main- tained and kept 100% fully charged. Float mode will maintain the battery at a constant 13.6V. 6 • Oz Charge manual www.ozcharge.com.au... -
Page 8: Led Table
5 - 7 Rolling 4 & 5 Absorption Charging 6 & 7 Rolling 4 - 6 Equalisation Charging Flashing Fully Charge / Float Mode Solid Reverse Polarity Solid Also with LED4 Flashing - Over Temperature 7 • Oz Charge manual www.ozcharge.com.au... -
Page 9: Charging Curves
CHARGING CURVES: 8 • Oz Charge manual www.ozcharge.com.au... -
Page 10: Troubleshooting
Eg. make sure battery charger and it has capacity is not too big for the time out charger. LED 8 is - Battery is - Battery may need replacement. Flashing defective - Battery is severely sulphated 9 • Oz Charge manual www.ozcharge.com.au... -
Page 11: Year Product Warranty
Service help phone: Within Australia (03) 9482 2203 Outside of Australia: +61 3 9482 2203 Website: www.ozcharge.com.au / www.ozcharge.co.nz If the Authorised Supplier and / or Oz Charge service centre concludes that while under normal use, a product failure or malfunction occurred during the warranty period and was caused by a defect in material or workmanship (see Exclusions), the Customer will be asked to ship to the nearest service point for repair or replacement, at our discretion. - Page 12 OC-DC1215 Owner’s Manual: Rev 1.2 - 04/15 - Specifications subject to change without notice.
