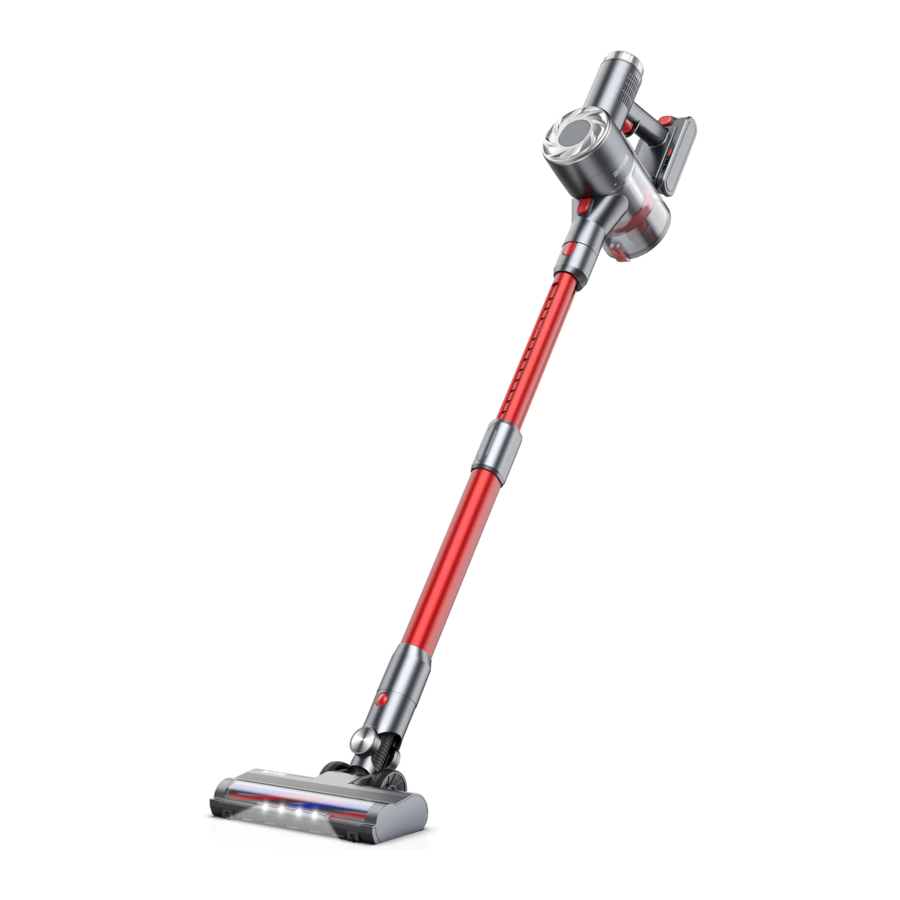

BUTURE VC30 - Cordless Vacuum Cleaner Manual

WARNING

Before using this machine, please read the following safety warning first and take safety protection measures to avoid malfunctions caused by improper operation.

1. This BuTure appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack ot experience and knowledge, unless they have been given supervision or instruction by a responsible person concerning use of the appliance to ensure that they can use it safety.
2. Suitable for dry locations only. Do not use or store outdoors with wet surfaces. Do not handle any part of the plug or appliance with wet hands. Store properly in a dry place indoors.
3. Do not use a damaged cable or plug. If the device or charger does not work properly, dropped, damaged, missed or dropped into water, please contact tech-support@ibuture.com, BuTure after-sales team for support.
4. Do not vacuum flammable or combustible liquids, such as petrol, or use in areas where liquids may be present.
5. Turn off the power switch before plug or unplug the adapter.
6. Do not vacuum anything that is burning or smoking, such as cigarettes, matches or hot ashes
7. Do not use without filters or dust cup to avoid damaging the motor and contaminating the air. Wash hands after using the vacuum cleaner.
8.
   FIRE: Do not place this product on or near a cooker or any other hot surface and do not incinerate this appliance even if it is severely damaged. The battery might catch fire or explode
9. Unplug the charger from the power outlet before performing routine cleaning or maintenance.
10. Battery leaks may occur under extreme conditions. If any liquid gets on your skin wash quickly with soap and water. t liquid gets into your eyes, rinse with water for at least 15 minutes immediately. Seek medical attention immediately.
11. Charge the unit with the charger we provided.
12. Avoid using this product to vacuum hard, sharp objects, as this may cause damage.

Note: The vacuum cleaner adopted thermal protection technology to prevent overheating, will stop working when the item is over-heated.

PACKAGE CONTENT

Please check and confirm the accessories and parts according to the following sheet before using.

KNOW THE PRODUCT

PRODUCT DETAILS

ACCESSORIES FUNCTION

1. 2 in 1 Upholstery Brush
   Easy to snap-on design, can help you remove dust and hair on the carpet.

2. Long crevice Nozzle
   Remove dust on the hard-to-reach areas like windows, bed feet gaps between sofa, etc.

3. Wall Mount Stand
   Hold the vacuum and accessories on the wall-mounted plate for easy storage and battery charging.

4. Soft rolling Brush
   Remove dust, debris, and hair from hard floors.

5. Carbon Fiber Rolling Brush
   Remove debris, dust, and hair in carpets, velvet.


PRODUCT ASSEMBLY

Install Vacuum Cleaner

1. Directly Install Cleaning Accessories

2. Install the extension tube and cleaning accessories
   Press and hold the extension tube length adjustment button, push forward or pull backward to select the appropriate length of the extension tube.


Wall-Mounted Plate Assembling Diagram

Please make sure there is no gas, water, or electrical cables and wires behind the mounting area. To avoid the dock dropping down, please make sure it must be installed firmly. Store appropriately indoors in a dry place. Do not expose the machine to sunlight or freezing temperature. Recommended temperature range: 39.2ºF (4ºC)-104ºF (40ºC)

HOW TO USE

Charging

• When using a new battery or using it for the first time after long-term storage, please fully charge the battery first.
• When storing and not using the vacuum cleaner for along time, please ensure that it is charged and discharged at least once every three months.

Charging Methods

1. Connect the main body to charge

2. Hang on the wall mount to charge

3. Charge the battery directly


Battery power indicator

Operating

Before each use, make sure that

• The battery is fully charged, and fixed in place.
• The dust cup and filters are cleaned, and fixed in place.

Start to Work

Press the switch button to turn it on and it will start Min mode suction Press again to turn itoff

Select Suction Level Min-Max

Press the button +/- to adjust the suction

HOW TO USE

Tip: Please clean the vacuum cleaner regularly to extend its lifespan.

Main Body Cleaning

• Turn off the power before cleaning the body.
• Please use a neutral detergent, wipe the body with half-wet cloth.
• Please avoid sun exposure and store in a cool and dry place

Empty Dust Cup

• When using, if the garbage in the dust cup exceeds MAX Line, please empty it in time.

• Press the dust empty button to empty the dust.


Wash the air inlet HEPA and filter cone

• Remove dust cup from main body.
  Press the dust cup release button. Rotate the dust cup clockwise to separate the dust cup from the main body.

• Take out the air inlet HEPA from the dust cup.

• Take out the tilter cone.

• Clean the air inlet HEPA and tilter cone with water.
  Make sure that the dust cup and filters have dried before use.

• Install the HEPA and filter cone
  First screw the fitter cone counterclockwise into the bottom of the dust bucket, and the bottom cover button resets and self-locks
  Then put the air inlet HEPA back into the dust bucket body. Rotate the dust bucket body counterclockwise and hear a "click", indicating that it has been fully installed in place.


Clean Air outlet HEPA

Rotate the end cap of the air outlet HEPA counterclockwise, take out the HEPA and clean it
To install the air outlet HEPA put the HEPA into the air outlet bucket, and then rotate the back end cover clockwise.

Brush Roller Cleaning

Tip: After long periods of use, the bristle may be jammed by hair or similar build-up. It's recommended to clean the brush roller periodically to ensure efficient operation and maintain suction.

• Push the button to the "unlock" sign, remove the brush roller.

• Remove the debris wrapped around the roller with your own brush, then flush the roller with water.

• Gently push the brush roller into the motored brush, until securely in place. Make sure the brush roller is completely dry before using.


SPECIFICATION

Model	VC30
Rated voltage	22.2V
Suction level	Min-Max
Charge time	4-5H

TROUBLESHOOTING

After-sales Service Email: tech-support@ibuture.com
