Summary of Contents for BUTURE JR700

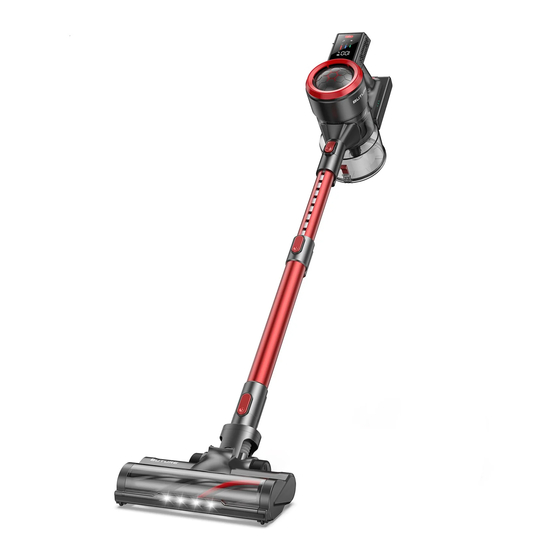

- Page 1 User Manual Stick Vacuum Cleaner JR700...
-
Page 2: Table Of Contents
sales@ibuture.com Content 1. INTRODUCTION 2. WARNING 2.1 Personal Safety 2.2 Electrical Safety 2.3 Battery Safety 3. CONTENT OF PACKAGE 4. KNOW YOUR PRODUCT 5. CHARGING 6. ASSEMBLING 7. USING 8. CLEANING 8.1 Clean the dust cup 8.2 Reinstallation 8.3 Clean the brush 9. -
Page 3: Introduction
1. INTRODUCTION Thank you for purchasing BUTURE JR700 stick vacuum cleaner. Please read the user manual carefully before using the product to avoid malfunctions caused by accidental operation. If the product is given to another person, please make sure the manual is conveyed. -
Page 4: Electrical Safety
sales@ibuture.com 2.2 Electrical Safety ① Only use batteries and chargers supplied by the manufacturer. ② Never modify the charger in any way. ③ Do not pull the cord to disconnect it from a socket, grasp the plug and pull to disconnect it. ④... -
Page 5: Content Of Package
sales@ibuture.com 3. CONTENT OF PACKAGE Part Name Quantity Part Name Quantity Main Body Charging Stand Battery Pack Charger Telescopic Tube Small Cleaning Brush Floor Brush Air Filter(Installed) Hard And Soft Bristle Integrated Hepa Dust Filter(one is installed Brush (Installed) in the main body) Screws set (Used to install wall Crevice Nozzle mount stand) -
Page 6: Know Your Product
sales@ibuture.com 4. KNOW YOUR PRODUCT Battery Release Button Battery LED Touch Screen ON/OFF Button Battery Indicator Dust Cup Release Button Round Brush Charging Stand Dust Cup Tube Release Button Telescopic Tube Length Adjustment Button Battery Charger Crevice Nozzle Indicator Suction Indicator Brush Roller Air Passage/ Tangled... -
Page 7: Charging
sales@ibuture.com 5. CHARGING Turn off the power before charging • Only charge with the original charger to avoid damage to the vacuum cleaner. • During overcurrent protection and overvoltage protection, the battery indicators flash at the same times and the screen goes out. 2 Charging ways ①... -
Page 8: Assembling
sales@ibuture.com 6. ASSEMBLING • Connect the telescopic tube Insert the telescopic tube into the main body and make sure it is secure. Press the release button, the telescopic tube can be removed. • Connect brush heads... -
Page 9: Using
sales@ibuture.com 7. USING Do not exceed the "MAX" dust collection capacity of the dust cup. Please keep the suction nozzle unobstructed and avoid blockage. Otherwise, the motor will overheat and cause danger. • Press the ON/OFF button to start work ON/OFF •... -
Page 10: Cleaning
sales@ibuture.com • According to different needs, the length of the tube can be adjusted 8. CLEANING 8.1 Clean the dust cup To maintain good suction power, please empty the dust cup and clean the filter after each use. ① ② ③... -
Page 11: Reinstallation
sales@ibuture.com ④ Sweep off the dust on the HEPA filter with the cleaning brush. The stainless steel filter and dust cup can be washed by water, and shall be installed after being dried for 24 hours. Do not use cleaning equipment (washing machine, etc.) to clean the filter, do not use drying equipment (dryer, iron, etc.) to dry the vacuum cleaner, natural drying only. -
Page 12: Clean The Brush
sales@ibuture.com 8.3 Clean the brush Ensure the appliance is disconnected from the charger before removing the roller brush. Be careful not to pull the ON button. ① ② Push up the switch to the “unlock” side, remove the Use the small cleaning brush to sweep away plug, then take out the roller brush. -
Page 13: Troubleshooting
sales@ibuture.com 9. TROUBLESHOOTING If there is any problem during use, please check the following troubleshooting table. If the problem can't be solved, please contact the after-sales email: sales@ibuture.com Warning: Turn off the vacuum cleaner before maintenance. Otherwise it may cause electric shock or other personal injury. 9.1 Blockage Protection ①... -
Page 14: Common Trouble
sales@ibuture.com 10. COMMON TROUBLE Problems Possible Causes Solutions 1. Low battery power. 1. Charge before use. 2. The floor brush, telescopic tube, dust cup, filter are 2. Clean thoroughly blockage in brush suction inlet, blocked by hair or other debris. extension tube, dust cup, HEPA filter and metal filter. - Page 15 sales@ibuture.com Problems Possible Causes Solutions 1. The charging cable is not fully inserted into the 1. Make sure the charger, battery, and power socket are in charging socket. good contact. 2. Foreign matter on the metal contact of the charger 2.
- Page 16 sales@ibuture.com Problems Possible Causes Solutions Display turns black Prompt that the current battery temperature is high. and shows E1 in the Over temperature protection Stop using/charge the vacuum cleaner until the battery temperature is normal (wait about 45 minutes). middle When the adapter voltage is too high or too low, the display will flash "E2"...
-
Page 17: Maintenance
sales@ibuture.com 11. MAINTENANCE ① The stainless steel filter and dust cup can be washed by water. After cleaning they must be thoroughly dried before putting it back into use. Do not immerse the HEPA filter and main unit in water or any liquid. ②... - Page 18 Federal Communication Commission Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,may cause harmful interference to radio communications.
- Page 19 Trade name: BUTURE Equipment: Vacuum Cleaner Model No. : JR700 To which this declaration relates is in conformity with the essential requirement set out in the Council Directive on the Approximation of the laws of the Member States relating to LVD Directive(2014/35/EU) & EMC Directive(2014/30/EU) & RoHS(2011/65/EU) product is responsible to affix CE marking, the...
- Page 20 Better Life, Better Future sales@ibuture.com...
