Summary of Contents for BUTURE VC30

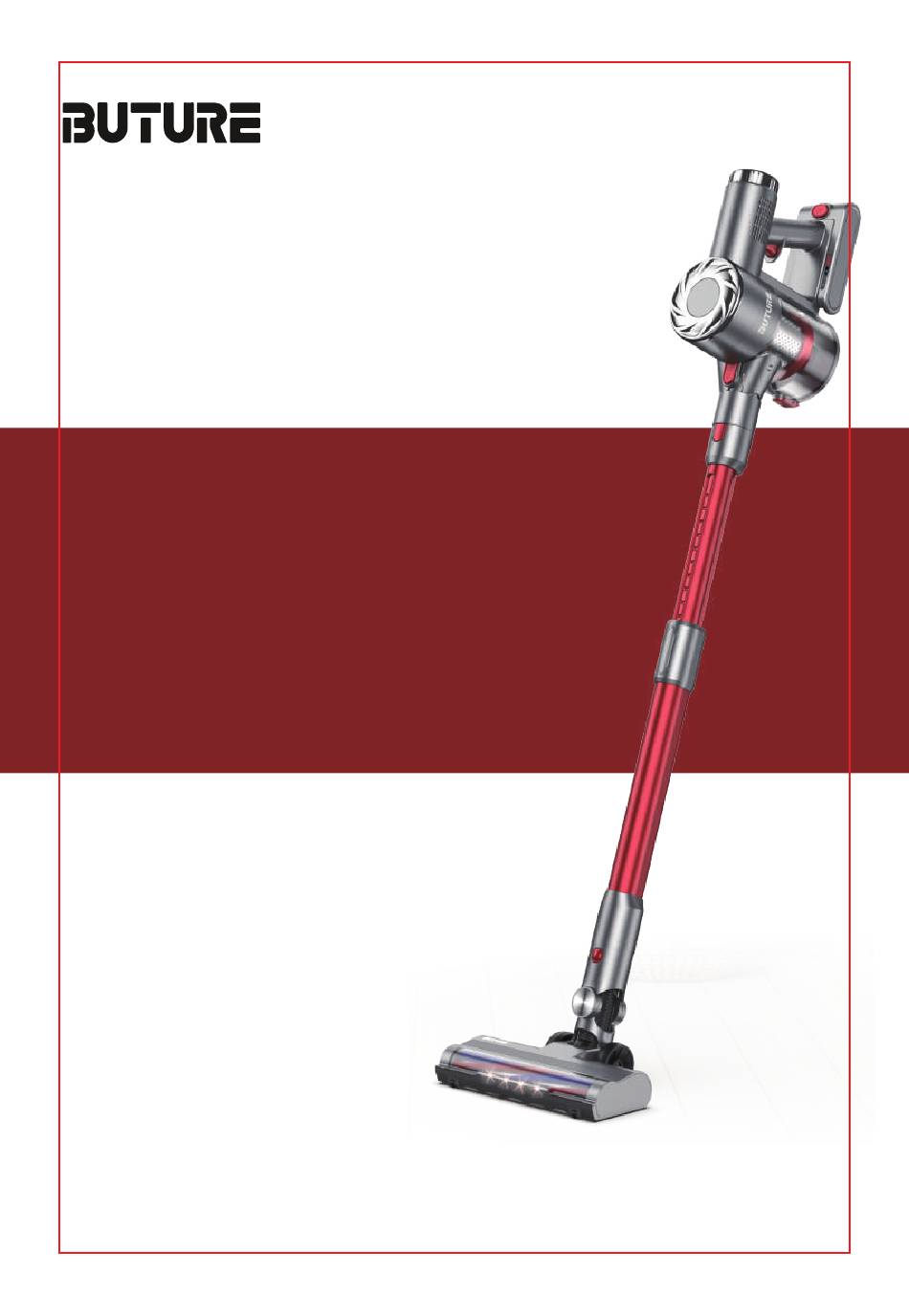

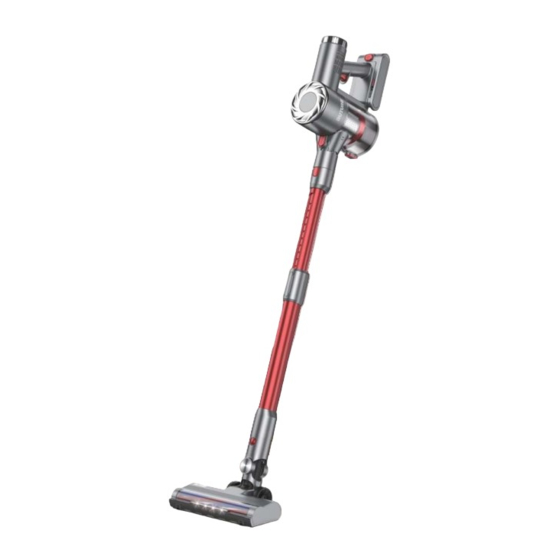

- Page 1 USER MANUAL Cordless Vacuum Cleaner Model: VC30 Email: tech-support@ibuture.com...
- Page 2 LANGUAGE English 01-14 Deutsch 15-28 Italiano 29-42 Français 43-56 Español 57-70 71-84 日本語...
-
Page 3: Table Of Contents
CONTENT 1. WARNING 2. PACKAGE LIST 3. KNOW THE PRODUCT 3.1 Product Details 3.2 Accessories Function 4. PRODUCT ASSEMBLY 4.1 Install Vacuum Cleaner 4.2 Install Wall Mount 5. HOW TO USE 5.1 Charging 5.2 Operating 6. MAINTENANCE 6.1 Main Body Cleaning 6.2 Empty Dust Cup 6.3 Wash the air inlet HEPA and filter cone 6.4 Clean Air outlet HEPA... -
Page 4: Warning
① This BuTure appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction by a responsible person concerning use of the appliance to ensure that they can use it safety. -
Page 5: Package List
After-sales Service Email: tech-support@ibuture.com 2.PACKAGE CONTENT Please check and confirm the accessories and parts according to the following sheet before using. Part Name Quantity Main Body Battery Pack Adjustable Extension Tube Motorized Brush Head Soft Rolling Brush (Installed) Carbon Fiber Rolling Brush Long Crevice Nozzle 2 in 1 Upholstery Brush Wall Mount Stand... -
Page 6: Know The Product
After-sales Service Email: tech-support@ibuture.com 3.KNOW THE PRODUCT 3.1PRODUCT DETAILS Battery Release Button Charging Port Battery Pack Suction Switch Button Adjustment Button Dust Cup Dust cup release button Dust Empty Button Telescopic Tube Release Button Adjustable Extension Tube Length Adjustment Button Wall Mount Stand Motorized Floor Brush Release Button Motorized Floor Brush... -
Page 7: Accessories Function
After-sales Service Email: tech-support@ibuture.com 3.2 ACCESSORIES FUNCTION ① 2 in 1 Upholstery Brush ② Long crevice Nozzle Easy to snap-on design,can help you remove Remove dust on the hard-to-reach areas like dust and hair on the carpet. windows, bed feet, gaps between sofa, etc. ③... -
Page 8: Product Assembly
After-sales Service Email: tech-support@ibuture.com 4.PRODUCT ASSEMBLY 4.1 Install Vacuum Cleaner ① Directly Install Cleaning Accessories Ka da Ka da Ka da ② Install the extension tube and cleaning accessories Press and hold the extension tube length adjustment button, push forward or pull backward to select the appropriate length of the extension tube. - Page 9 After-sales Service Email: tech-support@ibuture.com 4.2 Wall-Mounted Plate Assembling Diagram WARNING • Please make sure there is no gas, water, or electrical cables and wires behind the mounting area. • To avoid the dock dropping down, please make sure it must be installed firmly. •...
-
Page 10: How To Use
After-sales Service Email: tech-support@ibuture.com 5.HOW TO USE 5.1 Charging • When using a new battery or using it for the first time after long-term storage, please fully charge the battery first. • When storing and not using the vacuum cleaner for a long time, please ensure that it is charged and discharged at least once every three months. -
Page 11: Operating
After-sales Service Email: tech-support@ibuture.com 5.2 Operating Before each use, make sure that • The battery is fully charged, and fixed in place. • The dust cup and filters are cleaned, and fixed in place. • Start to Work Press the switch button to turn it on and it will start Min mode suction . Press again to turn it off. •... -
Page 12: Empty Dust Cup
After-sales Service Email: tech-support@ibuture.com 6.2 Empty Dust Cup • When using, if the garbage in the dust cup exceeds MAX Line, please empty it in time. × √ • Press the dust empty button to empty the dust. 6.3 Wash the air inlet HEPA and filter cone •... - Page 13 After-sales Service Email: tech-support@ibuture.com • Take out the air inlet HEPA from the dust cup. • Take out the filter cone. • Clean the air inlet HEPA and filter cone with water. Make sure that the dust cup and filters have dried before use. 1min •...
-
Page 14: Clean Air Outlet Hepa
After-sales Service Email: tech-support@ibuture.com 6.4 Clean Air outlet HEPA Rotate the end cap of the air outlet HEPA counterclockwise, take out the HEPA and clean it. To install the air outlet HEPA. Put the HEPA into the air outlet bucket, and then rotate the back end cover clockwise. -
Page 15: Specification
• Remove the debris wrapped around the roller with your own brush, then flush the roller with water. • Gently push the brush roller into the motored brush,until securely in place. Make sure the brush roller is completely dry before using. 7.SPECIFICATION Model VC30 Rated voltage 22.2V Suction level Min-Max... -
Page 16: Troubleshooting
②Battery pack not installed in place ②Battery pack installed in place not work or has failed ③Contact BuTure Team via email for ③Motor has failed replacing the battery or motor ①Empty the dust cup ①Dust cup is full of garbage ②Clear out any garbage that is... -
Page 17: Warranty
9.WARRANTY 9.1 The 2-Year Limited Warranty • Our BuTure machine has a 2-year warranty against original defects in material and workmanship, when used for private household purposes in accordance with the BuTure Instruction Manual. • This warranty provides, at no extra cost to you, all labor and parts necessary to ensure your machine is in proper operating condition during the warranty period. - Page 18 (Company address) declare under our sole responsibility that the product Trade name: BUTURE Equipment: VC30 Cordless Vacuum Cleaner Model No. : VC30 to which this declaration relates is in conformity with the essential requirement set out in the Council Directive on the Approximation of the laws of the Member States relating to LVD Directive(2014/35/EU) &...
- Page 19 Correct Disposal of this product This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
