ExacTemp
TM
DIGITAL
AIR FRYER+
USER GUIDE
• Safety Instructions
• Features
• Operating Instructions
• Special Functions
• Air Frying Tips
• Troubleshooting/FAQs
• Cleaning and Maintenance
• Notes
• Terms and Conditions
• Warranty Registration
RJ38-RDO-PV12
Multifunctional
START
STOP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ExacTemp DIGITAL AIR FRYER+ and is the answer not in the manual?

Questions and answers

Alma Martin
April 8, 2025

I have the ExactTemp Chefman, I have tried my best to slide the door to the right to remove it, but the door does not come off

1 comments:
Mr. Anderson
April 9, 2025

To remove the door from the Chefman ExacTemp DIGITAL AIR FRYER+, make sure the door is in the open position, then line up the hinges and slide the door to the left. It will detach from the unit.

This answer is automatically generated

Sheila
March 29, 2025

Does the glass also slide out for an easier clean?

1 comments:
Mr. Anderson
March 30, 2025

Yes, the Chefman ExacTemp Digital Air Fryer+ has a removable door with glass for easier cleaning. The door can be detached by sliding it to the right and reattached by sliding it to the left while in the open position.

This answer is automatically generated

William Bergquist
January 21, 2025

How to remove the door from chefman 5 & 1 airfryer

1 comments:
Mr. Anderson
February 10, 2025

To remove the door from the Chefman ExacTemp Digital Air Fryer+:

1. Open the door.
2. Slide the door to the right until it detaches from the unit.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Chefman ExacTemp DIGITAL AIR FRYER+

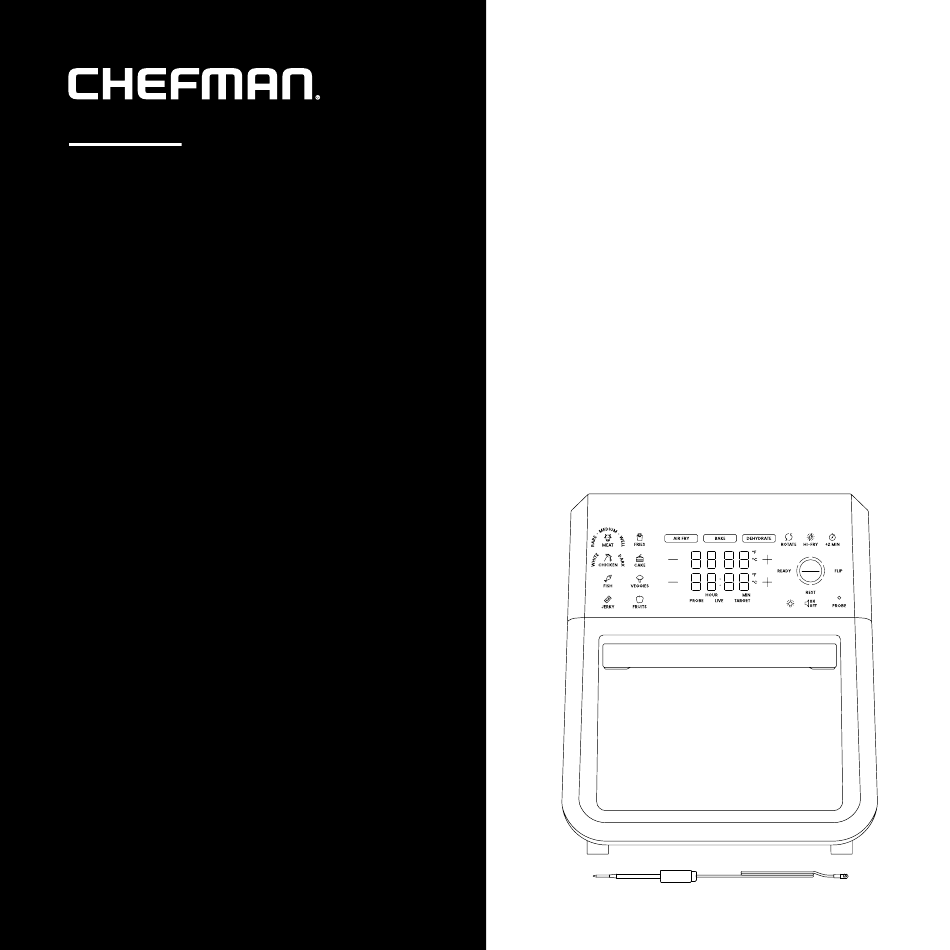

  • Page 1 ExacTemp Multifunctional DIGITAL AIR FRYER+ USER GUIDE • Safety Instructions • Features • Operating Instructions START STOP • Special Functions • Air Frying Tips • Troubleshooting/FAQs • Cleaning and Maintenance • Notes • Terms and Conditions • Warranty Registration RJ38-RDO-PV12...
  • Page 2 COOKING FORWARD Welcome! Whether this is your first Chefman® appliance or you’re already part of our family, we’re happy to be in the kitchen with you. With your new ExacTemp Multifunctional Digital Air Fryer+, you can air fry foods to crisp perfection with little to no oil for healthier eating.
  • Page 3: Table Of Contents

    CONTENTS Safety Instructions Features Operating Instructions Special Functions Air Frying Tips Troubleshooting/FAQs Cleaning and Maintenance Notes Terms and Conditions Warranty Registration...
  • Page 4: Safety Instructions

    6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. If this should occur, contact Chefman® Customer Support for examination, repair, or adjustment. The use of accessory attachments not recommended by Chefman® may cause injuries. 8. Do not use outdoors.
  • Page 5 SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS 14. When using this appliance, provide adequate ventilation above and on all sides for air circulation. Do not allow this appliance to touch curtains, wall coverings, clothing, dish towels or other flammable materials during use. Do not cover air fryer and ensure air vents, located on the back of the fryer, are not covered.
  • Page 6 SAFETY INSTRUCTIONS IMPORTANT SAFEGUARDS WARNING: This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit into a polarized outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.
  • Page 7 To disconnect appliance, grasp plug and remove it from outlet. Never use the product if the power cord shows signs of abrasion or excessive wear. Contact Chefman® Customer Support for additional guidance and support. Never wrap the cord tightly around the appliance, as this could place undue stress on the cord where it enters the appliance and cause it to fray and break.
  • Page 8: Features

    FEATURES Capacitive Touch Control Panel Rack Holders Removable Door with Viewing Window Cool-Touch Handle Spit Forks and Screws (2 of each) Rotisserie Spit Wire Cooking Racks (3) Drip Tray/Baking Pan Fetch Tool 10. Probe Thermometer Probe Winding Wheel 12. Integrated Probe Storage (on side) 13.
  • Page 9 FEATURES Control Panel Timed Cooking Presets Cook Function Buttons HI-FRY Button Set temperature and time Press to choose a desired Press to raise cooking for popular foods in Time cooking method. temperature to 450°F (235°C) for 2 minutes. Circular Progress Bars Cook Mode.
  • Page 10 FEATURES PRESET FUNCTION CHARTS The charts on pages 10 and 11 are guidelines only. They reflect the times and temperatures of the cook functions and presets available in Time Cook and Probe Cook Modes. Always check foods for doneness according to proper food safety guidelines. TIME COOK MODE Time Cook Mode allows you to cook your food for a certain length of time using three different cook functions (Air Fry, Bake, and Dehydrate).
  • Page 11 FEATURES DEHYDRATE PRESETS* Preset Default Time Default Temp Rotate Option Flip? Jerky 4 hours 165˚F (75°C) Veggies 6 hours 130˚F (51°C) Fruit 8 hours 135˚F (55°C) * When dehydrating, follow a trusted recipe and follow food safety guidelines. NOTE: The temperature for Dehydrate ranges from 95°F (35°C) to 200°F (90°C), and the time ranges from 30 minutes to 24 hours.
  • Page 12: Operating Instructions

    OPERATING INSTRUCTIONS BEFORE FIRST USE 1.  Remove all packaging materials. Check to ensure that all parts and accessories are accounted for. 2.  Read and remove any stickers on the air fryer except for the rating label, which should remain on the unit. 3. ...
  • Page 13 OPERATING INSTRUCTIONS    To use the presets, press the appropriate icon for the food you’re cooking. The button will turn blue, and the programmed temperature and time will appear on the display. NOTE: Changing the temperature or time once a preset is selected will cancel the preset.   ...
  • Page 14 OPERATING INSTRUCTIONS HOW TO COOK BY PROBE 1.  Place the unit on a hard, flat surface away from all sources of heat and plug it in. 2.  Insert the probe horizontally into the thickest part of your food (see drawings below). Be sure the tip of the probe isn’t touching bone.
  • Page 15 OPERATING INSTRUCTIONS 6.   Set the oven temperature by pressing the top set of + and – buttons. Next, set the target probe temperature by pressing the bottom set of + and – buttons OR by choosing the MEAT, CHICKEN, or FISH preset. For meat, choose your preferred doneness (rare to well- done) by pressing the MEAT button repeatedly.
  • Page 16 OPERATING INSTRUCTIONS HOW TO USE THE ROTISSERIE SPIT (Max: 4 lb) Using the spit with the rotate feature is perfect for roasting a whole chicken to even, crisp perfection and for slowly cooking whole, boneless pieces of meat, such as beef or pork tenderloins.
  • Page 17 OPERATING INSTRUCTIONS HOW TO USE THE FETCH TOOL The fetch tool is handy for removing the hot spit from the air fryer. 1.  Hold the fetch tool by its handle with one hand. Have a potholder in or an oven mitt on the other hand.
  • Page 18: Special Functions

    SPECIAL FUNCTIONS ROTATE The ROTATE button is automatically selected for certain presets but should be used when cooking with the rotisserie spit. When selected, it will continuously rotate food 360˚ for perfect, even cooking. If not using the spit, make sure the button is deselected. The ROTATE button is not available for Dehydrate or Probe Cooking.
  • Page 19: Air Frying Tips

    AIR FRYING TIPS For a crisp exterior, oil foods lightly. Some foods, especially if fresh, benefit from being • tossed with a little oil in a separate bowl before frying. However, high-fat foods, like a well- marbled steak, or prepared foods usually require no additional oil. Avoid wet batters.
  • Page 20: Troubleshooting/Faqs

    TROUBLESHOOTING/FAQS Why is there white smoke coming from my unit? White smoke can be a sign that there’s too much fat in the fryer. Avoid cooking very fatty foods, such as sausages, in the air fryer, and be sure that the accessories and interior of the air fryer are clean before cooking.
  • Page 21: Cleaning And Maintenance

    CLEANING AND MAINTENANCE The air fryer is easy to clean and should be cleaned frequently. Follow the directions below. 1. Unplug the unit, unplug the probe (if used), and let the unit cool completely before cleaning. 2. Wipe down the exterior and interior of the unit with a clean, damp cloth and dry thoroughly.
  • Page 22: Notes

    NOTES...
  • Page 23 NOTES...
  • Page 24: Terms And Conditions

    . Any changes to the Terms and ® Conditions of this Warranty must be in writing, signed by a representative of Chefman ® No other party has the right or ability to alter or change the Terms and Conditions of this Warranty.
  • Page 25 ® and workmanship, under normal household use, for a period of 1 year from the date of purchase when used in accordance with the directions listed in the Chefman User ® Guide. If your product does not work as it should, please contact Customer Support at support@chefman.com so that we may assist you.
  • Page 26 NOTE: Label depicted here is an example. How do I register my product? All you need to do is fill out a simple Chefman® registration form. You can easily access the form in one of the two ways listed below: Visit Chefman.com/register.
  • Page 27 FAILURE TO PERFORM THIS WARRANTY OBLIGATION. THE REMEDIES PROVIDED HEREIN ARE THE EXCLUSIVE REMEDIES UNDER THIS WARRANTY, WHETHER BASED ON CONTRACT, TORT OR OTHERWISE. Chefman® is a registered trademark of RJ Brands, LLC. ExacTemp is a trademark of RJ Brands, LLC.
  • Page 28 FREE COOKBOOK! Scan for a digital cookbook of delicious recipes created just for your ExacTemp Multifunctional Digital Air Fryer+. ©CHEFMAN 2023 RJ38-RDO-PV12_UG_FINAL_OTP_031723...
