Page 1
Manufacturer specifications indicate a 20m range. As the name suggests these are Microphones only and do not include a speaker for ease of hearing at range. To use the Yealink CPW65 your CP965 device must be on Firmware version 143.86.0.10 at a minimum.
Page 2

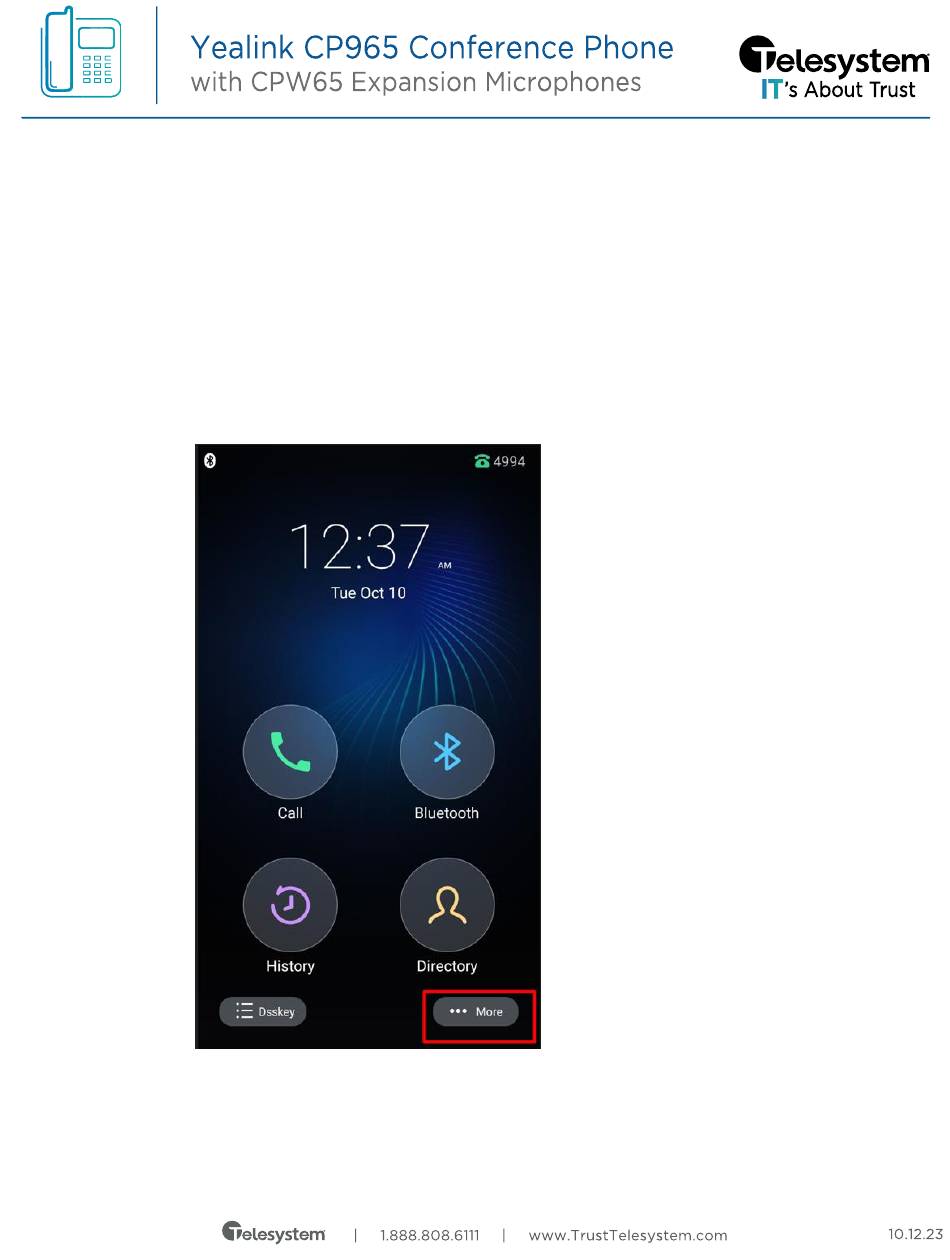

2. Then press MIC. 3. Then press the Pairing Button on the CP965...
Page 3
4. The CP965 Conference Phone will then enter pairing mode. 5. Next, do a long press and hold of the Mute button on the CPW65 Expansion Microphone until the light begins to rapidly flash yellow. 6. After about 10-15 seconds of flashing the devices should be in sync.
Page 4
Microphone Unbinding 1. The Unbinding process should be utilized if you need to replace a microphone or have a scenario with multiple bases sharing microphones near each other. 2. Utilize the Find feature outlined below if you are unsure which microphone is which. 3.
Page 5
4. This page includes a variety of information about the selected microphone.
Page 6
5. The unbind button is found at the bottom of Details. 6. Selecting Unbind presents you with a prompt to confirm you wish to unbind that microphone.
Page 7
7. Press OK and the microphone will become unbound allowing you to perform the pairing process on a new microphone if required. Microphone Find Feature This allows a user to visually determine which Microphone is MIC1 and which is MIC2 due to the flashing green/red Mute button.
