Summary of Contents for Jura 744

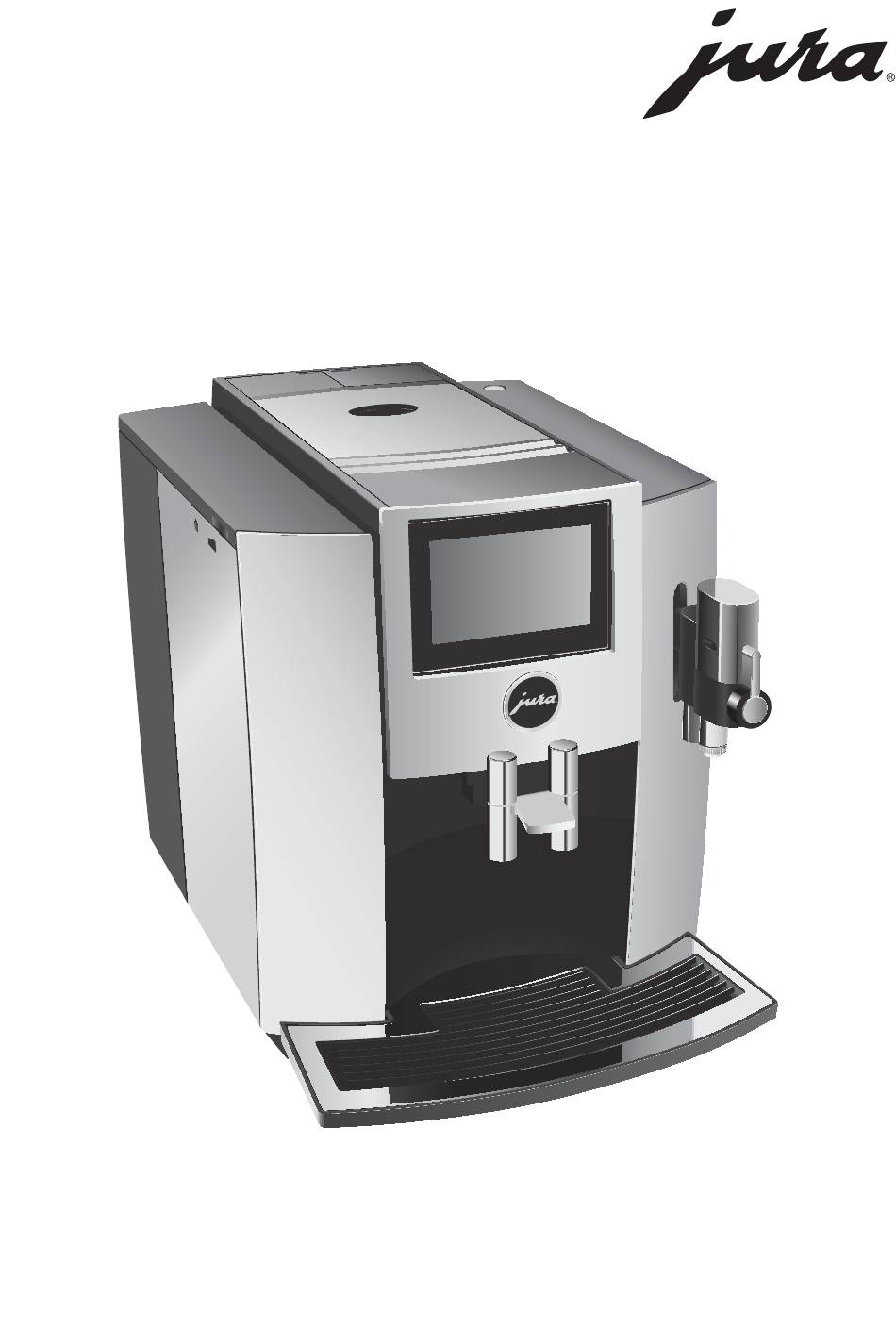

- Page 1 S8 Instructions for Use Type 744...
-
Page 2: Table Of Contents
Important information Proper use ..............................6 For your safety ............................... 6 1 Preparing and using for the first time JURA on the Internet ............................10 Operation with touchscreen display ......................10 Setting up the machine ..........................10 Filling the bean container ..........................11 Determining the water hardness .......................11 First-time use ..............................11... - Page 3 8 Transport and environmentally friendly disposal Transport / Emptying the system ......................42 Disposal .................................42 9 Technical data 10 Index 11 JURA contact details / Legal information Symbol description Warnings Always take note of any information marked with the words CAUTION or J WARNING WARNING and a warning sign.
-
Page 4: Control Elements
Control elements Control elements Bean container with aroma preservation Touchscreen display cover Milk system with professional fine foam Water tank cover frother Water tank Height-adjustable coffee spout Plug-in mains cable Cup grille (back of the machine) Coffee grounds container Drip tray... - Page 5 Control elements Filler funnel cover Cover cap for grinder adjustment switch Filler funnel for ground coffee Grinder adjustment switch On/Off button Q Service socket for optional JURA Smart Connect Accessories Container for milk system Measuring spoon for ground Hot-water nozzle cleaning...
-
Page 6: Important Information
The machine is designed and intended for private domestic use. It should only be used for coffee preparation and to heat milk and water. Use for any other purpose will be deemed improper. JURA Elektroapparate AG cannot accept any responsi- bility for the consequences of improper use. - Page 7 The machine contains live parts. If opened, there is a danger of potentially fatal injury. Repairs may only be carried out by authorised JURA service centres, using original spare parts and accessories. To completely and safely disconnect the machine from the power supply, first switch off the S8/S80 using the On/Off button.
- Page 8 Please only use original JURA maintenance products. Use of products that are not explic- itly recommended by JURA could damage the machine. Do not use any coffee beans treated with addi- tives or caramelised coffee beans.
- Page 9 Important information Children aged 8 and over may only operate the machine without supervision if they have been instructed in how to use it safely. Chil- dren must be able to recognise and under- stand the potential dangers arising from incor- rect use.
-
Page 10: Preparing And Using For The First Time
JURA on the Internet Visit us on the Internet. You can download short operating instruc- tions for your machine from the JURA website (www.jura.com). You will also find interesting and up-to-date information on your S8/S80 and on every aspect of coffee. -
Page 11: Filling The Bean Container
1 Preparing and using for the first time Filling the bean container CAUTION Coffee beans which have been treated with additives (e.g. sugar), ground coffee or freeze-dried coffee will damage the grinder. T Only use roasted, untreated coffee beans to fill the bean con- tainer. - Page 12 1 Preparing and using for the first time Precondition: The bean container has been filled. T Connect the mains cable to the machine. T Insert the mains plug into a power socket. T Press the On/Off button Q to switch the S8/S80 on. ‘Sprachauswahl’...
-
Page 13: Connecting Milk
1 Preparing and using for the first time T Fill the water tank with fresh, cold water and reinsert the tank. E The machine automatically detects that you have just inserted the filter cartridge. ‘Filter operation’ ‘Saved’ ‘Filter is being rinsed’, the filter is rinsed. -
Page 14: Connect Accessory (With Wireless Connection)
You have the option of connecting your S8/S80 wirelessly to a com- wireless connection) patible accessory (e.g. the Cool Control Wireless milk cooler). To do this, the receiver of the Cool Control or the JURA Smart Connect must be plugged into the service socket. Precondition: The start screen is displayed. -
Page 15: Preparation
– and impairs the taste. We therefore recommend prewarming the cups. The full coffee aroma can develop only in prewarmed cups. You can purchase a JURA cup warmer from your specialised dealer. You can make permanent settings for all products in programming mode (see Chapter 4 ‘Permanent settings in programming mode –... -
Page 16: Ristretto, Espresso And Coffee
2 Preparation Move your finger across the display to bring the desired product into focus. Touch the product to start preparation. The following addi- tional products are shown in the product selector view: ‘Milk’ ‘Caffè latte’ ‘Hot water for green tea’ ‘2 x Ristretto’... -
Page 17: Two Ristretti, Two Espressi And Two Coffees
2 Preparation Two ristretti, two Example: Proceed as follows to prepare two ristretti (using product espressi and two coffees selector view). Precondition: The start screen is displayed. T Place two cups under the coffee spout. T Touch the product selector symbol (top right) to go to the product selector view. -
Page 18: Warm Milk And Milk Foam
2 Preparation E 15 minutes after preparation, the fine foam frother is automat- ically rinsed (see Chapter 5 ‘Maintenance – Automatic milk system rinsing’). Therefore always place a receptacle under the fine foam frother after preparing milk. To ensure that the fine foam frother always works properly, you must clean it daily when you have been preparing milk (see Chapter 5 ‘Maintenance –... -
Page 19: Adjusting The Grinder
2 Preparation E Use ground coffee which is not ground too finely. Very fine coffee can block up the system so that the coffee only comes out in drips. E If you did not fill the machine with a sufficient amount of ground coffee, ‘Not enough ground coffee’... -
Page 20: Hot Water
2 Preparation Precondition: The start screen is displayed. T Place a cup under the coffee spout. T Open the cover of the grinder adjustment switch. T Touch ‘Espresso’ to start preparation. T Turn the grinder adjustment switch to the desired position while the grinder is running. -
Page 21: Daily Operation
Switching on the machine T Place a receptacle under the coffee spout. T Press the On/Off button Q to switch the S8/S80 on. ‘Welcome to JURA’ ‘Machine is heating’ ‘Machine is rinsing’, the system is rinsed. The rinse stops automatically. Your S8/S80 is ready for use. -
Page 22: Regular Maintenance
3 Daily operation T Clean the milk system (see Chapter 5 ‘Maintenance – Clean- ing the milk system’). T Remove the milk pipe and rinse it thoroughly under running water. T Dismantle and rinse the milk system (see Chapter 5 ‘Main- tenance –... -
Page 23: Switching Off The Machine
3 Daily operation Switching off the When the S8/S80 is switched off, the system is automatically rinsed machine if a speciality coffee has been prepared. If milk has been prepared, you will also be prompted to clean the milk system. T ... -
Page 24: Permanent Settings In Programming Mode
‘Demo mode’ You cannot prepare any products in demo mode. ‘Connect accessory’, T Connect the S8/S80 wirelessly to a JURA accessory or ‘Disconnect accessories’ disconnect the connection again. (Only displayed if the JURA Smart Connect is being used.) -
Page 25: Product Settings
4 Permanent settings in programming mode Product settings Touch a product on the start screen for about 2 seconds to view the list of setting options: ‘Product settings’: Specify individual settings such as coffee strength, amount of water, etc. ‘Product name’: Change the name of the product. -
Page 26: Automatic Switch-Off
4 Permanent settings in programming mode Product Coffee Amount More settings strength Milk foam, – Milk: 1 sec. – 120 sec. Product name, delete/replace/copy milk product Hot water, – Water: 25 ml – 450 ml Temperature (low, normal, high), hot water for product name, delete/replace/copy green tea product Permanent settings in programming mode always follow the same model. -
Page 27: Energy-Saving Mode
4 Permanent settings in programming mode T Touch ‘Switch off after’. ‘Switch off after’ T Now move your finger to the left or right to change the switch-off time. T Touch ‘Save’. ‘Saved’ appears briefly on the display. ‘Switch off after’ T ... -
Page 28: Operating Instructions
4 Permanent settings in programming mode Operating instructions In the programme item ‘Machine settings’ / ‘Operating instructions’ you can define whether the operating instructions on how to use the professional fine foam frother and hot-water nozzle should be dis- played during preparation. Example: How to stop the operating instructions from being dis- played. -
Page 29: Unit For Amount Of Water
4 Permanent settings in programming mode Unit for amount of water In the programme item ‘Machine settings’ / ‘Units’ you can select the unit used for the amount of water. Example: Proceed as follows to change the unit for the amount of water from ‘ml’... -
Page 30: Setting The Water Hardness
4 Permanent settings in programming mode T Touch ‘Back’ the number of times needed to display the start screen again. Setting the water The harder the water is, the more frequently the S8/S80 needs to be hardness descaled. It is therefore important to set the water hardness accu- rately. -
Page 31: Querying Information
4 Permanent settings in programming mode T Move your finger across the display until ‘Choose language’ is displayed in the centre. T Touch ‘Choose language’. ‘Choose language’ T Move your finger across the display until the desired lan- guage, e.g. ‘Deutsch’, is displayed in the centre. T ... -
Page 32: Maintenance
5 Maintenance 5 Maintenance Your S8/S80 has the following integrated maintenance programmes: Rinsing the machine (‘Rinse’) Cleaning the milk system (‘Clean the milk system’) Changing the filter (‘Change filter’) (only if filter is fitted) Cleaning the machine (‘Clean’) Descaling the machine (‘Descale’) E Clean the machine, descale the machine or change the filter when you are prompted to do so. -
Page 33: Cleaning The Milk System
T Use only original JURA maintenance products. E JURA milk system cleaner is available from specialised dealers. E To clean the milk system, use the container supplied. Precondition: The start screen is displayed. -
Page 34: Dismantling And Rinsing The Professional Fine Foam Frother
T Rinse all the parts under running water. If there are severely dried-on milk residues, firstly immerse the individual parts in a solution of 250 ml cold water and 1 capful of JURA milk system cleaner. Then rinse the parts thoroughly. -
Page 35: Changing The Filter
5 Maintenance T Remove and empty the water tank. T Fit the filter cartridge extension supplied on top of a CLARIS Smart filter cartridge. T Insert the filter cartridge with its extension into the water tank. T Turn the filter cartridge clockwise until it audibly clicks into place. -
Page 36: Cleaning The Machine
E The cleaning programme lasts approximately 20 minutes. E Do not interrupt the cleaning programme. The quality of cleaning will be impaired if you do so. E JURA cleaning tablets are available from specialised dealers. Precondition: The start screen is displayed. ‘Clean machine’... -
Page 37: Descaling The Machine
The operation is interrupted, ‘Add cleaning tablet’. T Open the cover of the filler funnel for ground coffee. T Insert a JURA cleaning tablet into the filler funnel. T Close the cover of the filler funnel. T Touch ‘Next’. ‘Machine is being cleaned’, water flows repeatedly out of the... - Page 38 If the descaling agent comes into contact with sensitive surfaces (e.g. marble), damage cannot be ruled out. T Clean up any splashes immediately. E The descaling programme lasts approximately 45 minutes. E JURA descaling tablets are available from specialised dealers. Precondition: The start screen is displayed. ‘Decalcify machine’ displayed.
-
Page 39: Cleaning The Bean Container
T Remove the water tank. T If you use a CLARIS Smart filter cartridge, remove this. T Completely fill the water tank and dissolve 3 JURA descaling tablets in it. T Leave the water tank with the descaling solution for several hours (e.g. -
Page 40: Display Messages
6 Display messages 6 Display messages Message Cause/Result Action ‘Fill water tank’ The water tank is empty. You T Fill the water tank (see Chapter 3 cannot prepare any products. ‘Daily operation – Filling the water tank’). ‘Empty coffee The coffee grounds container is full. T Empty the coffee grounds grounds container’... -
Page 41: Troubleshooting
Q. Contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’). E If you were unable to solve the problem, contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’). -
Page 42: Transport And Environmentally Friendly Disposal
8 Transport and environmentally friendly disposal 8 Transport and environmentally friendly disposal Transport / Emptying the Keep the packaging for your S8/S80. It should be used to protect the system machine during transport. In order to protect the S8/S80 from frost during transport, the sys- tem must be emptied. -
Page 43: Technical Data
9 Technical data 9 Technical data Voltage 220–240 V ~, 50 Hz Power 1450 W Conformity mark Pump pressure static, max. 15 bar Holding capacity of water tank 1.9 l (without filter) Holding capacity of bean container 280 g Holding capacity of coffee grounds max. 16 portions container Cable length approx. - Page 44 10 Index 10 Index Addresses 48 Daily maintenance 21 Adjusting the product settings 25 Descaling Aroma preservation cover Machine 37 Bean container with aroma preservation Water tank 39 cover 4 Display Automatic switch-off 26 Touchscreen display 4, 10 Display brightness 29 Display messages 40 Bean container Disposal 42...
- Page 45 Coffee 16 Instant coffee Espresso 16 Ground coffee 18 Espresso macchiato 17 Internet 10 Flat white 17 Green tea 20 JURA Ground coffee 18 Contact details 48 Hot water 20 Internet 10 Latte macchiato 17 Milk 18 Language 30 Milk foam 18...
- Page 46 10 Index Regular maintenance 22 Rinsing Machine 32 Ristretto 16, 17 Two ristretti 17 Rotary Selection 15 Safety 6 Safety information 6 Settings Permanent settings in programming mode 24 Setting up Setting up the machine 10 Short operating instructions 10 Smart Connect 14 Switching off 23 Switching on 21...
-
Page 48: Jura Contact Details / Legal Information
J73423/S8-S80/en/201708 11 JURA contact details / Legal information 11 JURA contact details / Legal information JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Tel. +41 (0)62 38 98 233 @ You will find additional contact details for your country at www.jura.com. @ If you need assistance with using your machine, you can find this at www.jura.com/service.
