Summary of Contents for Jura 735

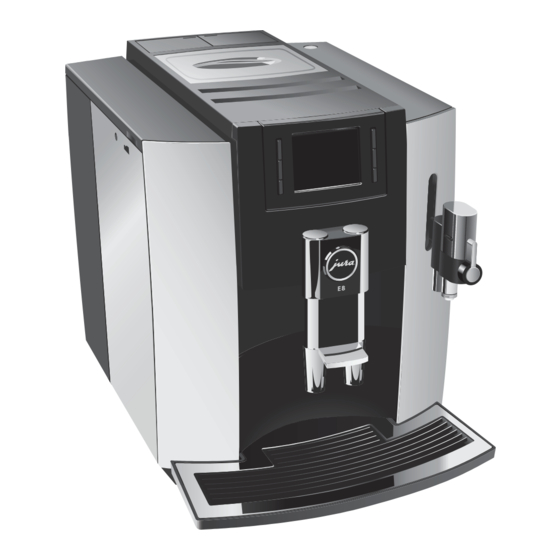

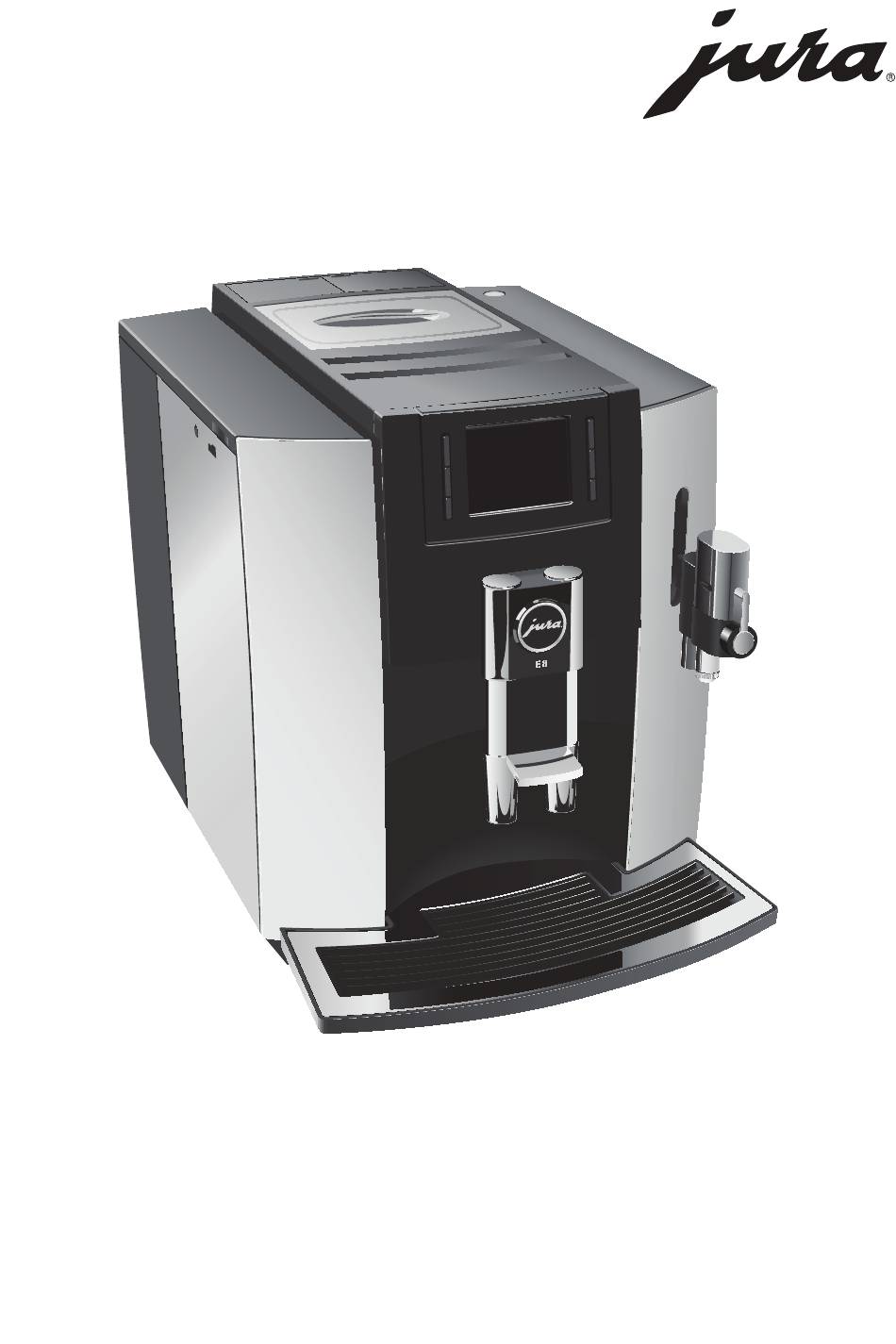

- Page 1 INSTRUCTION FOR USE FOR JURA E8 Type 735...
-
Page 2: Table Of Contents
Important information Proper use ..............................6 For your safety ............................... 6 1 Preparing and using for the first time JURA on the Internet ............................10 Setting up the machine ..........................10 Filling the bean container ...........................10 Determining the water hardness ......................10 First-time use ..............................11 Connecting milk ............................ - Page 3 Transport / Emptying the system ......................38 Disposal .................................38 9 Technical data 10 Index 11 JURA contact details / Legal information Scope of validity These instructions for use apply to the following models: In the interests of clarity, however, the instructions for use only refer to the ‘E8’...
-
Page 4: Control Elements
Control elements Control elements Filler funnel cover Cover cap for grinder adjustment switch Filler funnel for ground coffee Grinder adjustment switch Bean container with On/Off button Q aroma preservation cover Milk system with Water tank cover professional fine foam frother Water tank Height-adjustable coffee spout Mains cable (back of the machine) - Page 5 Control elements Display Multi-function buttons (button function depends on what is shown in the display) Service socket for JURA Smart Connect (Smart Fine foam frother (used in different Connect is not included in all model variants) model variants) Accessories Container for milk system cleaning...
-
Page 6: Important Information
For models with a permanently connected mains cable: If the mains cable of this machine is damaged, it must be repaired either directly by JURA or by an authorised JURA service cen- tre. For models with a disconnectable mains cable:... - Page 7 Important information which is available directly from JURA or from authorised JURA service centres. Make sure that the E8 and the mains cable are not located close to hot surfaces. Be careful to ensure that the mains cable is not trapped and does not rub against sharp edges.
- Page 8 Please only use original JURA maintenance products. Use of products that are not explic- itly recommended by JURA could damage the Do not use alkaline cleaning agents when cleaning, use a soft cloth and a mild detergent.
- Page 9 Important information Do not allow children to play with the machine. Keep children under the age of 8 away from the machine, or supervise them constantly. Children aged 8 and over may only operate the machine without supervision if they have been instructed in how to use it safely.
-
Page 10: Preparing And Using For The First Time
JURA on the Internet Visit us on the Internet. You can download short operating instruc- tions for your machine from the JURA website (www.jura.com). You will also find interesting and up-to-date information on your E8 and on every aspect of coffee. -
Page 11: First-Time Use
1 Preparing and using for the first time T You will then be able to read the degree of water hardness from the discolouration of the Aquadur® test strip and the description on the packaging. First-time use WARNING If the machine is operated with a defective mains cable, there is a danger of potentially fatal electric shock. - Page 12 1 Preparing and using for the first time T Place a receptacle (at least 300 ml) under the fine foam frother. T Remove the water tank and rinse it with cold water. T Fit the filter cartridge extension supplied on top of a CLARIS Smart filter cartridge.
-
Page 13: Connecting Milk
(e.g. the Cool Control Wireless milk cooler). To do this, the receiver of the Cool Control or the JURA Smart Connect must be plugged into the service socket. E The Smart Connect can be protected against unauthorised access using a PIN. -
Page 14: Preparation
– and impairs the taste. We therefore recommend prewarming the cups. The full coffee aroma can develop only in prewarmed cups. You can purchase a JURA cup warmer from your specialised dealer. You can make permanent settings for all products in programming mode (see Chapter 4 ‘Permanent settings in programming mode –... -
Page 15: Ristretto, Espresso And Coffee
2 Preparation T If you are using the professional fine foam frother, turn the selector switch to the Milk Foam position (see image). T Press the ‘Latte macchiato’ button. ‘Latte macchiato’ appears and the preset amount of milk foam flows into the glass. E There is a short interval while the hot milk separates from the milk foam. -
Page 16: Two Ristretti, Two Espressi And Two Coffees
2 Preparation Two ristretti, two espressi To prepare two speciality coffees, press the appropriate preparation and two coffees button twice (within approximately 1 second). Example: Proceed as follows to prepare two espressi. Precondition: The start screen (‘1/3’) is displayed. T Place two cups under the coffee spout. T ... -
Page 17: Ground Coffee
2 Preparation To ensure that the fine foam frother always works properly, you must clean it daily when you have been preparing milk (see Chap- ter 5 ‘Maintenance – Cleaning the fine foam frother’). Ground coffee You can choose to use a second coffee variety, for example decaf- feinated coffee, with the filter funnel for ground coffee. -
Page 18: Permanently Setting The Amount Of Water For The Cup Size
2 Preparation Permanently setting the It is easy to permanently adjust the amount of water for all single amount of water for the products to the cup size. Adjust the amount once as shown in the cup size following example. Every time you prepare a drink in the future, this amount will be dispensed. -
Page 19: Hot Water
2 Preparation T Place a cup under the coffee spout. T Open the cover of the grinder adjustment switch. T Press the ‘Espresso’ button to start preparation. T Turn the grinder adjustment switch to the desired position while the grinder is running. The preset amount of water flows into the cup. -
Page 20: Daily Operation
T Close the water tank cover. Switching on the machine T Place a receptacle under the coffee spout. T Press the On/Off button Q to switch the E8 on. ‘Welcome to JURA’ ‘Machine is heating’ ‘Machine is rinsing’, the system is rinsed. The rinse stops automatically. -
Page 21: Regular Maintenance
3 Daily operation T Clean the fine foam frother (see Chapter 5 ‘Maintenance – Cleaning the fine foam frother’). T Remove the milk pipe and rinse it thoroughly under running water. T Dismantle and rinse the fine foam frother (see Chapter 5 ‘Maintenance –... -
Page 22: Permanent Settings In Programming Mode
4 Permanent settings in programming mode 4 Permanent settings in programming mode Press the ‘ Pc ’ button to enter programming mode. You can navi- gate through the programme items and permanently save the required settings using the multi-function buttons. The following settings can be made: Programme item Sub-item... - Page 23 4 Permanent settings in programming mode Product Coffee strength Amount Temperature Cappuccino, 8 levels Coffee: 25 ml – 240 ml normal, high Flat white Milk: 3 sec. – 120 sec. Latte macchiato 8 levels Coffee: 25 ml – 240 ml normal, high Milk: 3 sec. – 120 sec. Interval: 0 sec. – 60 sec. Espresso macchiato 8 levels Coffee: 15 ml – 80 ml normal, high Milk: 3 sec. – 120 sec.
-
Page 24: Automatic Switch-Off
4 Permanent settings in programming mode Automatic switch-off By instructing your E8 to automatically switch itself off, you can cut down your energy consumption. If this function is activated, your E8 switches off automatically after the preset time following the last action on the machine. -
Page 25: Milk System Rinsing
4 Permanent settings in programming mode Milk system rinsing In the programme item ‘4/5’ ‘Rinse the milk system’ you can make the following settings: ‘Manual’: You are prompted to perform milk system rinsing 10 minutes after preparation of a speciality coffee with milk. ‘Automatic’: The milk system rinsing is automatically initiated 10 minutes after preparation of a speciality coffee with milk. -
Page 26: Language
4 Permanent settings in programming mode Language Example: Proceed as follows to change the language from ‘English’ to ‘Deutsch’. T Press the ‘ Pc ’ button. T Press the ‘ > ’ button several times until ‘4/5’ is displayed. T Press the ‘Choose language’ button. ‘Choose language’... -
Page 27: Maintenance
5 Maintenance 5 Maintenance Your E8 has the following integrated maintenance programmes: Rinsing the machine (‘Rinse the coffee system’) Rinsing the fine foam frother (‘Rinse the milk system’) Cleaning the fine foam frother (‘Clean the milk system’) Changing the filter (‘Change the filter’) Cleaning the machine (‘Clean’) -
Page 28: Cleaning The Fine Foam Frother
T Use only original JURA maintenance products. E JURA milk system cleaner is available from specialised dealers. E To clean the milk system, use the container supplied. E This chapter applies to the professional fine foam frother and the fine foam frother. -
Page 29: Dismantling And Rinsing The Professional Fine Foam Frother
T Rinse all the parts under running water. If there are severely dried-on milk residues, firstly immerse the individual parts in a solution of 250 ml cold water and 1 capful of JURA milk system cleaner. Then rinse the parts thoroughly. -
Page 30: Dismantling And Rinsing The Fine Foam Frother
T Rinse all the parts under running water. If there are severely dried-on milk residues, firstly immerse the individual parts in a solution of 250 ml cold water and 1 capful of JURA milk system cleaner. Then rinse the parts thoroughly. -
Page 31: Inserting/Changing The Filter
5 Maintenance T Re-assemble the fine foam frother. E Ensure that all individual parts are correctly and firmly connected to ensure optimum operation of the fine foam frother. T Re-fit the fine foam frother on the milk system. Inserting/changing the Your E8 no longer has to be descaled if you are using the CLARIS filter Smart filter cartridge. -
Page 32: Cleaning The Machine
The operation is interrupted, ‘Add cleaning tablet’. T Open the cover of the filler funnel for ground coffee. T Insert a JURA cleaning tablet into the filler funnel. T Close the cover of the filler funnel. T Press the ‘Next’... -
Page 33: Descaling The Machine
If the descaling agent comes into contact with sensitive surfaces (e.g. marble), damage cannot be ruled out. T Clean up any splashes immediately. E The descaling programme lasts approximately 40 minutes. E JURA descaling tablets are available from specialised dealers. Precondition: ‘Decalcify machine’ is displayed. T Press the ‘ Pc ’... - Page 34 5 Maintenance T Completely dissolve the contents of one blister (3 JURA des- caling tablets) in a receptacle holding 500 ml of lukewarm water. This may take several minutes. T Pour the solution into the empty water tank and insert it into the machine.
-
Page 35: Cleaning The Bean Container
T Remove the water tank. T If you use a CLARIS Smart filter cartridge, remove this. T Completely fill the water tank and dissolve 3 JURA descaling tablets in it. T Leave the water tank with the descaling solution for several hours (e.g. -
Page 36: Display Messages
6 Display messages 6 Display messages Message Cause/Result Action ‘Fill water tank’ The water tank is empty. You T Fill the water tank (see Chapter 3 ‘Daily cannot prepare any products. operation – Filling the water tank’). ‘Empty coffee The coffee grounds container T Empty the coffee grounds container grounds container’... -
Page 37: Troubleshooting
Q. Contact customer support in played. your country (see Chapter 11 ‘JURA contact details / Legal information’). E If you were unable to solve the problem, contact customer support in your country (see Chapter 11 ‘JURA contact details / Legal information’). -
Page 38: Transport And Environmentally Friendly Disposal
8 Transport and environmentally friendly disposal 8 Transport and environmentally friendly disposal Transport / Emptying the Keep the packaging for your E8. It should be used to protect the system machine during transport. In order to protect the E8 from frost during transport, the system must be emptied. -
Page 39: Technical Data
9 Technical data 9 Technical data Voltage 220–240 V ~, 50 Hz Power 1450 W Conformity mark Pump pressure static, max. 15 bar Holding capacity of water tank 1.9 l (without filter) Holding capacity of bean container 280 g Holding capacity of coffee grounds max. 16 portions container Cable length approx. -
Page 40: Index
10 Index 10 Index Addresses 44 Descaling Adjusting the product settings 22 Machine 33 Aroma preservation cover Water tank 35 Bean container with aroma preservation Display 5 cover 4 Display messages 36 Automatic switch-off 24 Disposal 38 Double product 16 Drip tray 4 Bean container Bean container with aroma preservation... - Page 41 Latte macchiato 14 Instant coffee Milk 16 Ground coffee 17 Milk foam 16 Internet 10 Ristretto 15 Two coffees 16 JURA Two espressi 16 Contact details 44 Two ristretti 16 Internet 10 Two speciality coffees 16 Problems Language 26 Troubleshooting 37...
- Page 42 10 Index Technical data 39 Tel 44 Transport 38 Troubleshooting 37 Two products 16 Unit for amount of water 25 Use, First-time 11 Warm milk 16 Water hardness Determining the water hardness 10 Setting the water hardness 24 Water tank 4 Descaling 35 Filling 20 Website 10...
-
Page 44: Jura Contact Details / Legal Information
J73888/E8/en/201805 11 JURA contact details / Legal information 11 JURA contact details / Legal information JURA Elektroapparate AG Kaffeeweltstrasse 10 CH-4626 Niederbuchsiten Tel. +41 (0)62 38 98 233 @ You will find additional contact details for your country at www.jura.com. @ If you need assistance with using your machine, you can find this at www.jura.com/service.
