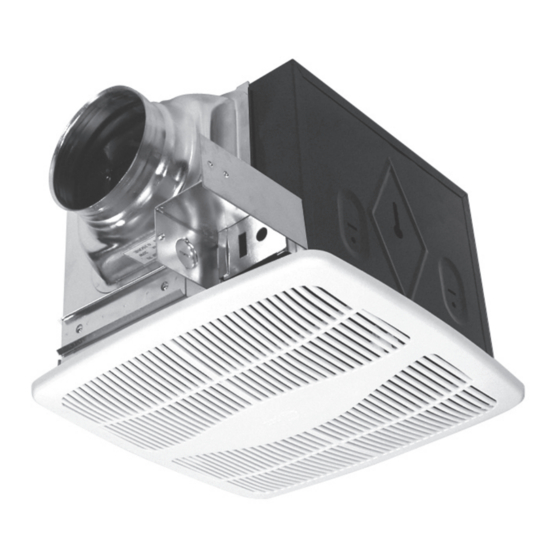

WARNING VERY IMPORTANT WARNING VERY IMPORTANT WARNING Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future reference. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibil- ity for this product.
3 INSTALLATION METHODS INSTALLATION USING WOODEN HEADERS (not included) • Method used only on unfinished ceilings (see also alternate method B). • Requires the installation of headers between ceiling joists. p. 4 INSTALLATION USING SLIDING BRACKETS (included) • Method used only on unfinished ceilings (see also alternate method A). p.
A) INSTALLATION USING WOODEN HEADERS Note: When using this method, the housing flange will rest flush against the wood frame in the ceiling. PREPARATION Before proceeding with the installation, plan ahead by taking into consideration the required clearances, ductwork and electrical wiring involved.
Page 5
POSITIONING THE FAN HOUSING Slide the fan housing into place so that its side is set against header C (Fig. 4.1). Positioning of the housing must allow sufficient room for wiring and duct work. Fig. 4.1 SECURING THE FAN HOUSING Secure the housing to the adjacent ceiling joist and header using 6 x 1 1⁄2 inch screws.
Page 6
B) INSTALLATION USING SLIDING BRACKETS PREPARATION Before proceeding with the installation, plan ahead by taking into consideration the required clearances, ductwork and electrical wiring involved. Make sure it will not impact the existing wiring. SPACING Where joist spacing is between For installation using slid- 16 inch on center to 24 inch on ing brackets (included)
ELECTRICAL WIRING WARNING A) Before installing, switch off the appropriate circuit breaker in the electrical service panel. B) Installation must comply with local and national electrical codes. C) Must be installed by a certified electrician. D) Unit must be properly grounded. Fig.
Page 8
C) INSTALLATION USING A MOUNTING BRACKET SEARCHING FOR SPACE BETWEEN CEILING JOISTS Use an electronic stud/joist locator to determine the exact location of the ceiling joists. Oth- erwise, drill a small hole in the ceiling and poke a bent coat hanger through the hole to feel where the joists are located.
Page 9
INSTALLATION OF THE MOUNTING BRACKET (continued) Fan housing centered between the ceiling joists • If there is no sufficient room to insert the bracket through the cut-out, then break off side A of the bracket (break along the fold lines where side A borders side B and D). (Fig. 5.2 & 5.3) •...
Page 10
ADAPTOR REMOVAL Since the complete assembly (housing and adaptor) cannot fit through the cut-out opening, you will need to remove the adaptor from the housing as follows. Disconnect electrical plug from Remove and keep the 2 screws the receptacle. securing the adaptor to the housing.
Page 11
ADAPTOR INSTALLATION Position the adaptor through the cut-out opening with its flange resting against the finished ceiling. (Fig. 9.1 & 9.2) Secure the adaptor to the ceiling by screwing 2 screws through the screw holes on the adaptor flange. With the adaptor secured to the ceiling, tilt it inward at a 25 degree angle. This angle will facilitate the snap-on of the housing onto the adaptor.
(other than that provided by Stelpro) will not be covered by this warranty. Stelpro Design disclaims any responsibility for bodily injuries, losses of in- come and material damages caused directly or indirectly by the product. Some States and provinces do not allow the exclusion or limitation of incidental or consequential damages and some States do not allow limitations on how long an implied warranty lasts, so these exclusions or limitations may not apply to you.
