Stelpro BFQ Series Installer And User Manual

installer/user's Guide
BFQ & BFQl series
BAThRoom fAN
WarninG
READ AND SAVE THESE INSTRUCTIONS.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
2. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heat-
ing equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society
for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. If this unit is to be installed over a tub or shower, it must be marked as appropriate for the application and be connected to a GFCI (Ground Fault Circuit Interrupter)
– protected branch circuit.
8. Ensure the ceiling thermal insulation where the unit is installed is less than R40. (For installation in Canada only.)
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED
CONTROL DEVICE.
CAUTION:
1. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapours.
2. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this product.
3. If the installer or the user modifies the unit, he will be held responsible for any damage resulting from this modification.
4. For connexions, use only 15A @ 120V certified switches.
5. This unit must be properly grounded.
6. Not for use in kitchen.
7. This unit is for ceiling installation only.

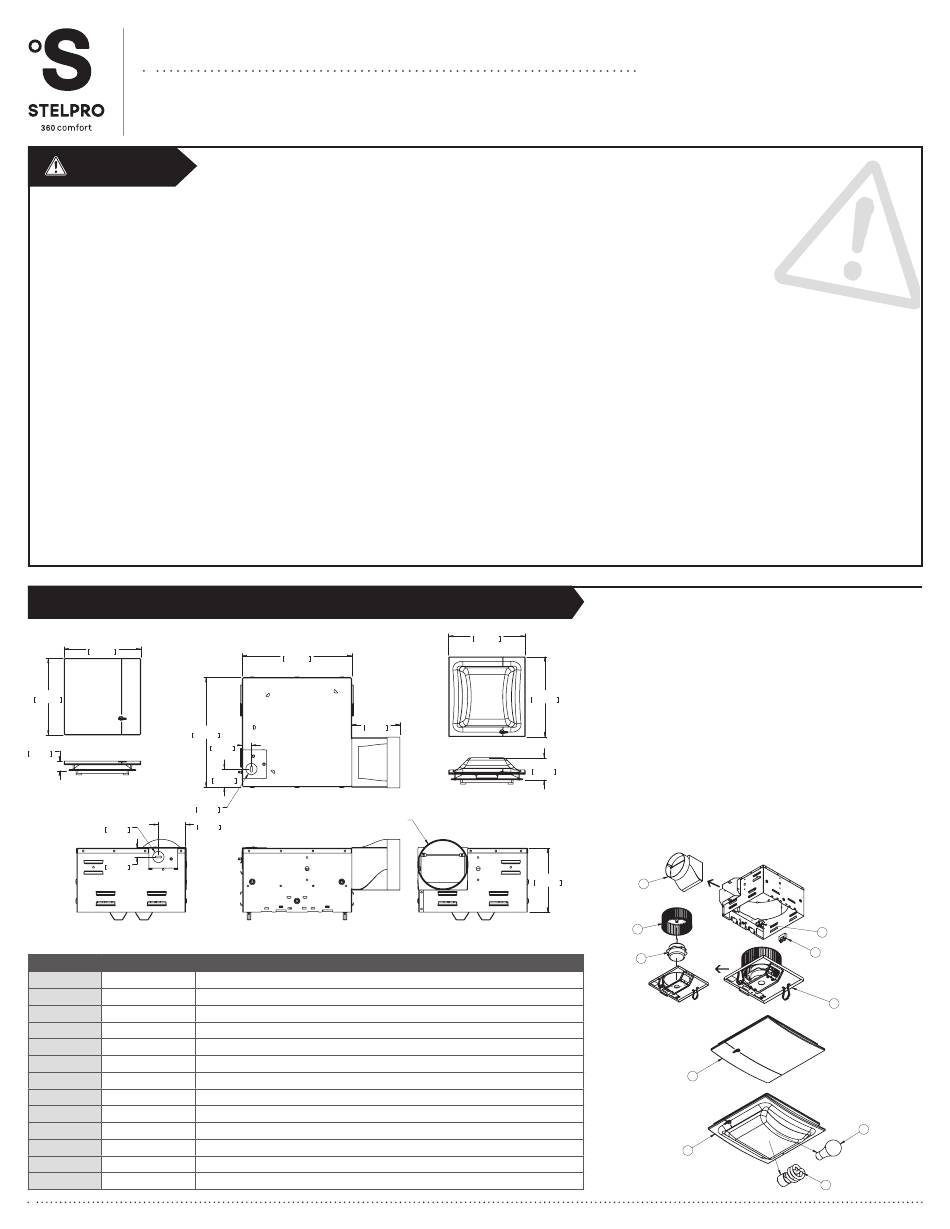

TEchNIcAL DRAWINg AND REpLAcEmENT compoNENT LIST

12''
305mm
12''
305mm
8 9/16''
218mm
1 1/2''
39mm
BFQ GRILL
7/8''
KOE O
22mm
2 1/8''
7/8''
KOE O
54mm
22mm
11/16''
17mm
SIDE
#DIAGRAM #PART
1 SA-BFQ-0007 MOTOR PLATE FOR BFQ SUB ASSEMBLY
2 MO-061 MOTOR 44W 1 SPEED 120V 60HZ CCW (WITH 3 PINS CONNECTOR)
2 MO-061-1 MOTOR 32W 1 SPEED 120V 60HZ CCW (WITH 3 PINS CONNECTOR)
3 P-BFQ80Z0 BFQ IMPELLER
4 P-BFQ00B0 4 INCH BFQ OUTLET & DAMPER ASSEMBLED
5 CAP-XXX ASK YOUR STELPRO REP FOR PART NUMBER
6 HAR-020 HARNESS, BFQL CUSTOMER INTERFACE
6 HAR-022 HARNESS, BFQ CUSTOMER INTERFACE
7 SA-BFSQ-0001 SUB ASSEMBLY OF THE GRILLE WITHOUT LIGHT
8 SA-BFQL-0001 SUB ASSEMBLY OF THE GRILLE WITH LIGHT FOR GU24 LIGHT
8 SA-BFQL-0002 SUB ASSEMBLY OF THE GRILLE WITH LIGHT FOR A19 BULB
9 FLL-001 FLUORESCENT LIGHTBULB SPIRAL 23W SOFT WITH GU24 BASE
10 INL-001 LIGHTBULB A19 75W INCANDESCENT E26 BASE
Stelpro DeSign inc. | Saint-Bruno-de-Montarville | Québec | J3V 6l7
8 9/16''
218mm
3 3/4''
96mm
3/4''
18mm
1 7/16''
36mm
TOP
DUCT ADAPTOR
O 4'' [101.6mm]
FRONT
DESCRIPTION
12''
305mm
12 1/2''
318mm
3 1/2''
88mm
BFQL(X) GRILL
5''
127mm
SIDE
4
3
5
2
7
8
6
1
10
9
INSBFQ0213
