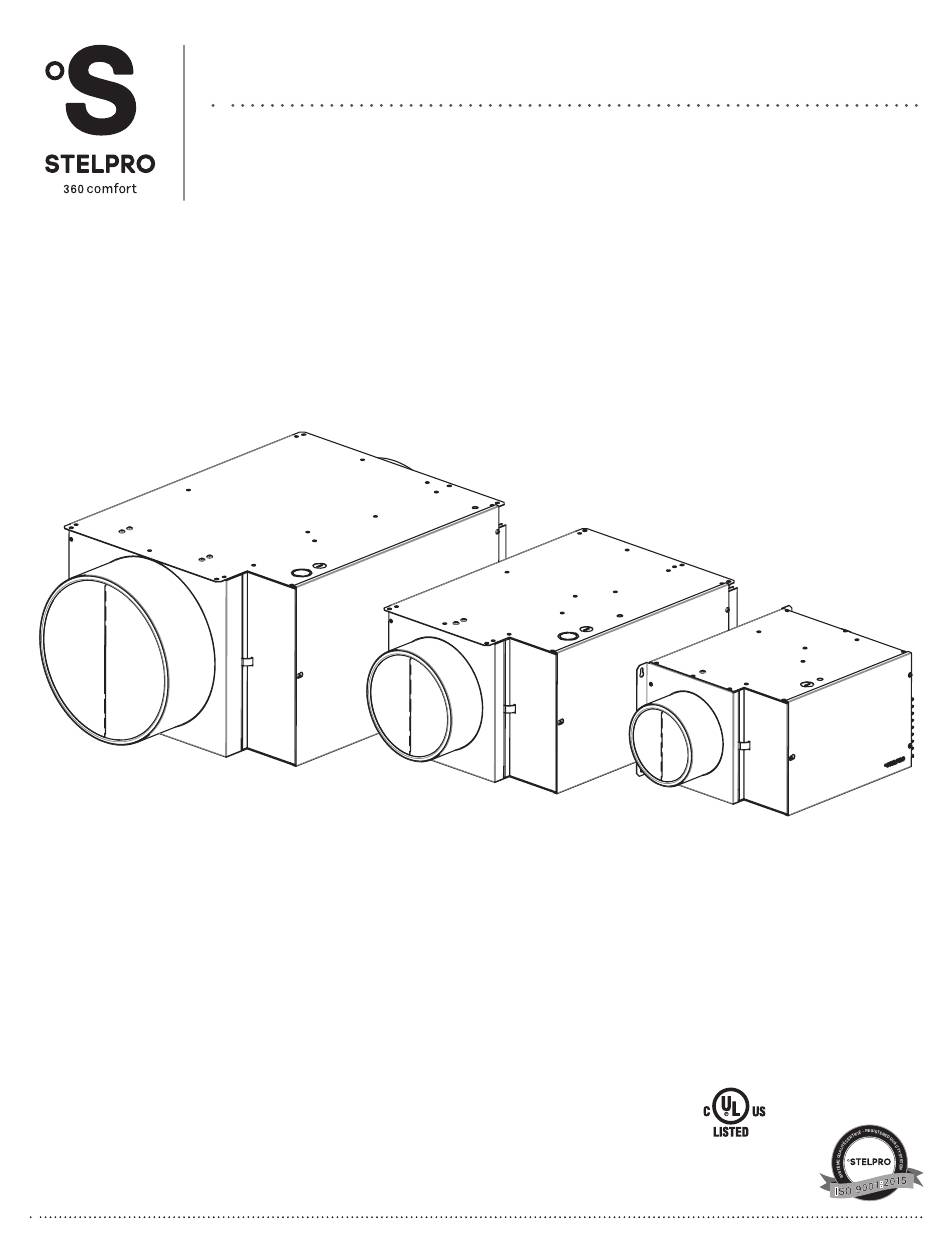

- Page 1 INSTALLATION GUIDE MUAA SERIES MAKE UP AIR REPLACEMENT COMPONENT LIST INCLUDED This unit complies with CSA and UL standards For further information or to consult this guide online, please visit our website at www.stelpro.com INSMUAA0220...
- Page 2 WARNING Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future reference. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further responsibility for this product. This product must be installed by a qualified person and connected by a certified electrician, according to the electrical and building codes effective in your region.
- Page 3 LIST OF MODELS COLLAR MODEL POWER VOLTAGE FLOW WEIGHT DIA. CODE VOLTS 1,5 | 2,0 120-1P 45 | 60 ⁄ ⁄ ⁄ 1,5 | 2,0 | 3,0 240/208-1P 45 | 60 | 90 ⁄ ⁄ ⁄ 208-3P | 347-1P 1,5 | 2,0 | 3,0 45 | 60 | 90 ⁄...
-
Page 4: Mechanical Installation
MECHANICAL INSTALLATION INSTALLING THE DEVICE This unit was designed to be positioned horizontally for all FLOW models and designed to be positioned vertically for air upflow or downflow on 6” to 10” models. Depending on the model, securely attach the device to a solid support or mounted from the ceiling using studs (not included). - Page 5 ELECTRICAL INSTALLATION POWER CONNECTION CONNECTING THE LOW POWER CONTROL • Using a screw driver, pierce the perforated hole and pass the wire For 6’’ 120V-1P et 240/ 208V-1P models, through it. For models with plenum kit, there is no perforated hole. the unit is conveniently connected to a Drill the box at the desired location.
-
Page 6: Maintenance
PLENUM TEMPERATURE CONTROL POTENTIOMETER The make up air is equipped with a plenum temperature sensor. You can select the plenum temperature set point with a potentiometer installed on the control card as shown below. The default factory set point is 20°C (68°F). To change the temperature set point, turn the potentiometer with a screwdriver. - Page 7 REPLACEMENT COMPONENT LIST MUAA06 120V-1P & # REF. PART # DESCRIPTION 240/208V-1P MODELS CIR-049 ELECTRONIC CARD PROGRAMMED FOR MUAA CONT-3002 CONTACTOR 2P/24V/30A RESISTIVE CONT-3503 CONTACTOR 3P/24V/35A RESISTIVE CONT-5002 CONTACTOR 2P/24V/50A RESISTIVE ELF- ASSEMBLED ELEMENT DEPENDING ON THE MODEL MUAAXXXXXX 7 7/8 X 7 5/8 X 1/2 WASHABLE ALUMINUM FILTER FILTRE-MUAA06 WITH PLASTIC PULL FILTRE-...
-
Page 8: Troubleshooting
Stelpro reserves the right to examine or to ask one of its representatives to examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price or repair a defective part.
