Installation guide
''SBF'' & "SPBF" series

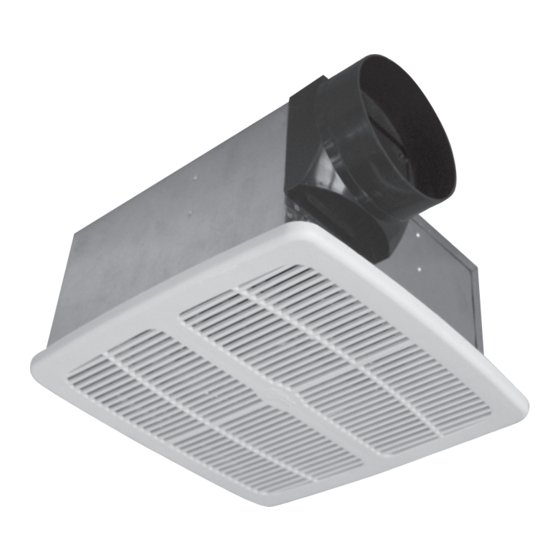

Bathroom fan
Models: SBF050 – SBF070 – SBF090 – SBF120 – SPBF050 – SPBF070
WARNING
WARNING
WARNING
WARNING
Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy
for future reference. If these instructions are not followed, the warranty will be considered null and void and the manufacturer deems no further
responsibility for this product.
This product must be installed by a qualified person and connected by a certified electrician, according to the electrical and building codes
effective in your region.
The following instructions must be adhered to in order to avoid personal injuries or property damages, serious injuries and potentially fatal electric
shocks.
Switch off the power at the circuit breaker/fuse before installing, repairing and cleaning the unit.
Make sure the unit is appropriate for the intended use (if needed, refer to the product catalog or a representative).
If the installer or the user modifies the unit, they will be held responsible for any damage resulting from this modification and the ETL certification
could be void.
This unit must not be installed in wet locations such as, but not limited to, a shower.
When cutting or drilling into a wall or ceiling, do not damage electrical wiring and other hidden utilities.
To ensure proper air exhaust and to reduce the risk of fire, make sure all exhaust ducts lead outside. Do not exhaust air into walls, ceilings, attics,
crawl spaces or garages.
Use a specially designed dimmer to control fan speed.
Sufficient air is needed for proper combustion and exhausting of gases to prevent back drafting.
For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapours.
INSSBF0708
Advertisement
Table of Contents
Related Manuals for Stelpro SBF050
Summary of Contents for Stelpro SBF050
- Page 1 Installation guide ‘‘SBF’’ & “SPBF” series Bathroom fan Models: SBF050 – SBF070 – SBF090 – SBF120 – SPBF050 – SPBF070 WARNING WARNING WARNING WARNING Before installing and operating this product, the user and/or installer must read, understand and follow these instructions and keep them handy for future reference.
-
Page 2: Before You Begin
BEFORE YOU BEGIN Ductwork may have a direct impact on fan performance. Therefore, we are proposing the following recommendations. Ducts We highly recommend the use of rigid ducts. Flexible ducts increase air restriction, resulting in poor fan performance and increased noise levels (sones). - Page 3 SECURING THE FAN Locate the joist or truss. On the joist or truss, mark the place where the screws will be secured. Secure the bottom screws first (Fig. 3.1 and 3.2). Secure the top screws (Fig. 3.3). Fig. 3.1 Fig. 3.2 ELECTRICAL WIRING WARNING A) Before installing, switch off the appropriate circuit breaker/fuse in the electrical service...
-
Page 4: Troubleshooting
3) Stelpro’s customer service department. In all cases, you must have a copy of the invoice and provide the information written on the product nameplate. Stelpro reserves the right to examine or to ask one of its representatives to examine the product itself or any part of it before honoring the warranty. Stelpro reserves the right to replace the entire unit, refund its purchase price or repair a defective part.
