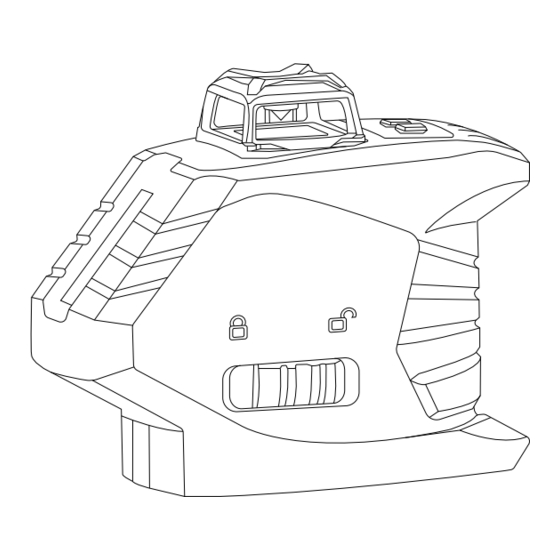

Ronix RH-9503 Manual

Line laser with dot

THE LINE LASER WITH DOT

RH-9503 (WITH RED LASER)

Table of Contents

Need help?

Do you have a question about the RH-9503 and is the answer not in the manual?

Page 1 THE LINE LASER WITH DOT RH-9503 (WITH RED LASER)
Page 2: Specifications
SPECIFICATIONS Model RH-9503 Accuracy ±2mm/5m Leveling range ±3 ˚ Working range/ with 15m & 50m(with detector) detector 1/4” & 5/8” Tripod thread Laser type laser class II Line Width 3.5mm @ 10m Operating temperature -10° c to 50° c Wavelength for Red Beam 635 nm...
Page 3: Parts List
PARTS LIST horizontal line Setting panel vertical line On/Off switch HOW TO OPERATE THE UNIT? RIGHT SIDE: PENDULUM LOCK The Line Laser is a precision instrument and should be treated with care. When not in use, the pendulum should always be in the OFF position To lock the pendulum allows the cross line laser to better withstand vibration and trauma incurred during transportation or if the unit is dropped LEFT SIDE –...
Page 4 KEYPAD Pulse Low Battery Indicator Indicator Line Selection Pulse Key TURN ON WHEN LASER IS SWITCHED ON -With turning on the laser, H ON , V ON, with 2 laser dots on top and down. - Press line button for one time, just H ON. -Press line button for 2nd time,V on, H off -Press line button for 3rd time, just the dots will be ON.
Page 5: Alarm Function
BENEFIT FEATURE LOCK EMITTING When our the line laser witout dot is in the mode of pendulum lock (switch bar at the left side) By pressing/holding line selection botton for 3 seconds to activate lock emitting mod. Line will come out from laser but be aware at this mode the laser itself is out of accuracy as the pendulum is locked.
