Summary of Contents for Ronix RH-9540G

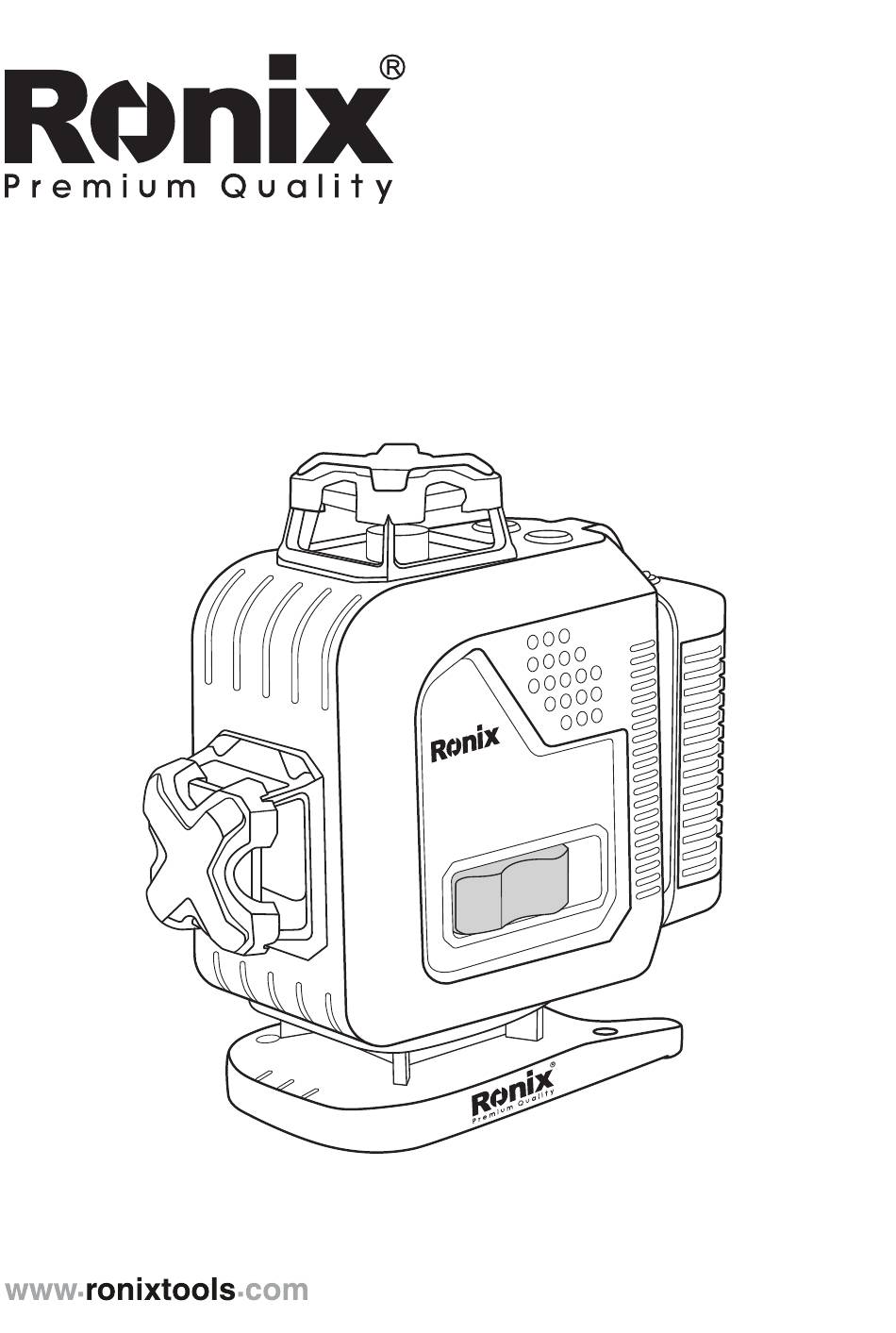

- Page 1 MULTIFUNCTIONAL 4D LASER LEVEL RH-9540G...
-
Page 3: Specification
SPECIFICATION RH-9540G Model Accuracy of V&H line ±2mm/5m Leveling method Gravity pendulum Leveling range ±3° Min distance of bottom 13mm H to the grand Working range / 15m(indoor)-60m (Working with laser receiver) With detector 1/4 ̎ a t metal base... -
Page 4: Basic Function
BASIC FUNCTION LINE LASER PULSE Battery Capacity Switch ▪ SWITCH ON/OFF When it is on, the pendulum of laser is unlocked, laser is under the status of self leveling. When it is off, the pendulum is locked and there has no line comes out. Manual lines/slope function: When switch is off, by pressing “Laser”... -
Page 5: Other Functions
▪ PULSE Whatever laser at self-leveling or slope mode, laser will enter into pulse mode after pressing “Pulse” key. BATTERY PACK REMOVE Press battery release button at the laser and push the battery upward to remove it from the laser. Press this button then pull up the battery pack from the laser level... - Page 6 1- After laser is on, H1 will be on. By pressing “Laser”key, lines of the laser will be on and off under below sequence: H1→V1→V1+V2→H1+V1+V2→H2+V1+V2→ H1+H2+V1+V2 Afterward will like circulation. 2- When laser is out of leveling, all lasers which are on will blink quickly as a warn.
-
Page 7: Optional Accessory
OPTIONAL ACCESSORY Remote Control: Available remote distance 20m. V1key V2key Pulse H1+H2 keys USER MANUAL... - Page 8 CAUTION LI- ION BATTERY: - Make sure keep the laser off if no operation within a long time. - When battery’s led turns out less quantity, the battery is required to be charged. - Be care do not drop the Li-ion battery. Do not throw it into the fire. - Make sure to always let battery have power.
