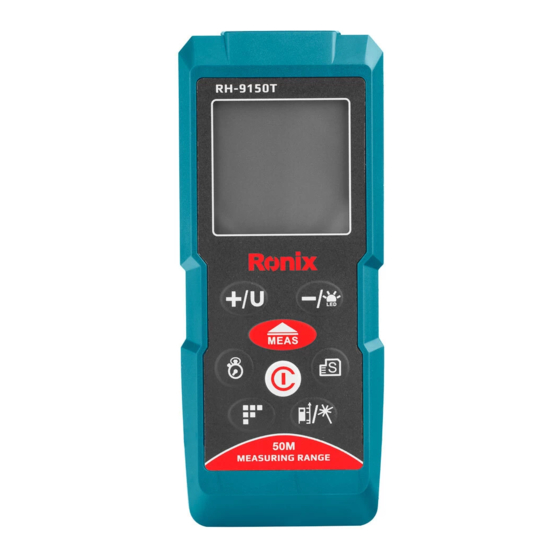

Ronix RH-9150T Quick Start Manual

Laser distance meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LASER DISTANCE METER
RH-9150T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RH-9150T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ronix RH-9150T

Summary of Contents for Ronix RH-9150T

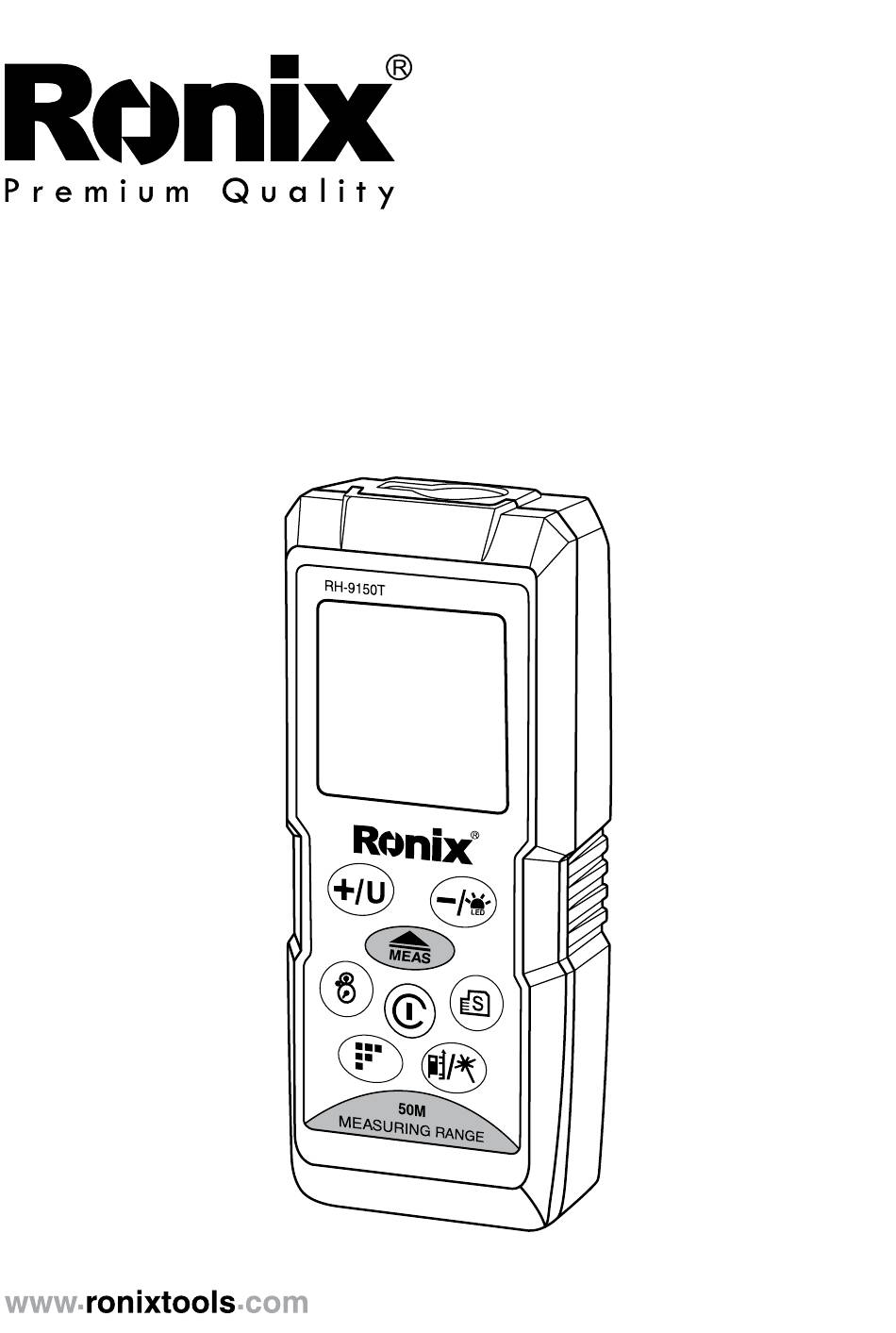

  • Page 1 LASER DISTANCE METER RH-9150T...

  • Page 2: Specification

    Measuring Unit m/in/ft/ft+in Storage Temperature -20°Cto 60°C Operating Temperature -5°Cto 40°C Dimensions 113×47.5×30.2 Battery Life 10,000 Times Distance/Area/ Volume/Pythagorean/ Continuous Measurement/Add and Functions Subtract/Min&Max Reading/Timer Countdown/Stake out Supplied in Ronix Color box Includes AAA 3×1.5V, Textile Pouch PART LIST USER MANUAL...

  • Page 3: Inside The Box

    A) LCD B) Additional /Unit C) Measure Key D) Timer /Bluetooth E) Functions (Area, Volume, Indirect measure I.II.III, Stake out setup) F) Subtraction /backlight G) Measurement records H) Clear /Power I) Reference /Laser point J) Pin tail K) Laser receiving window L) Laser emitted window M) Tripod Thread N) Battery cap...
  • Page 4 650 nanometers. - The total continuous output of the beams never exceeds 1.0mW. -Product complies with EMC Test according to EN61000-6- 3:2001+A11:2004, EN61000-6-1:2001, EN61326-1:2013, IEC 61326:2012 and FCC Test according to PART 15. Laser Radiation do not stare into beam. 650 mm / Power<1mW Class II laser product EN 60825 1:2007 OVERVIEW FOR SCREEN 1) Laser indicator...

  • Page 5: Switch On/Off

    2) Replace batteries when low battery icon flash on screen. 3) To change new batteries, when install new batteries, then close back lid. SWITCH ON/OFF 1) Be sure to check battery status before start. 2) Click the to turn on the device. The device will process the initial procedure and get ready to measure by turn on the laser dot.

  • Page 6: Stake-Out Measurement

    the top of screen. - To lookup stored measurements, press and hold to enter the lookup mode. - Press to move the index up and Press to move index down. - To clear all stored measurements, press and hold again in lookup mode to clear all memory.

  • Page 7: Measuring Functions

    SETUP STAKE-OUT DISTANCE 1) Click six time to enter setup of stake-out distance. 2) Click to increase the value. 3) Click to decrease your value. 4) Click to shift between numbers. 5) Click to save the value and exit the setup mode. 6) Click to restore zero.

  • Page 8: Measurement Reference

    and is recommend to use for seeking proper distance. 2) Move the laser dot onto the target. 3) Keep your position stable and tap and hold ,the laser dis- tance meter will enter continuous measurement mode. 4) Move the device back and forward to proper distance. 5) Click to pause the measurement .

  • Page 9: Error Code

    on screen. INDIRECTLY HEIGHT I, II & III MEASUREMENT (BASE ON PYTHAGOREAN) 1) Click thrice, four and five times to enable Indirectly Measurement. 2) Laser will be activated when entering indirectly measurement mode. 3) Follow the instructions on main screen to measure the LENGTH OF HYPOTENUSE(S) and BASE.
  • Page 10 CARE & RECYCLING - Cleansing - Clean the device with a damp, soft cloth. - Never immerse the device in water. - Never use aggressive cleaning agents or solvents. RECYCLING Batteries must not be disposed of with household waste. Care for the environment and take them to the collection points provided in accordance with national or local regulations.
