Summary of Contents for Teka AEH-600

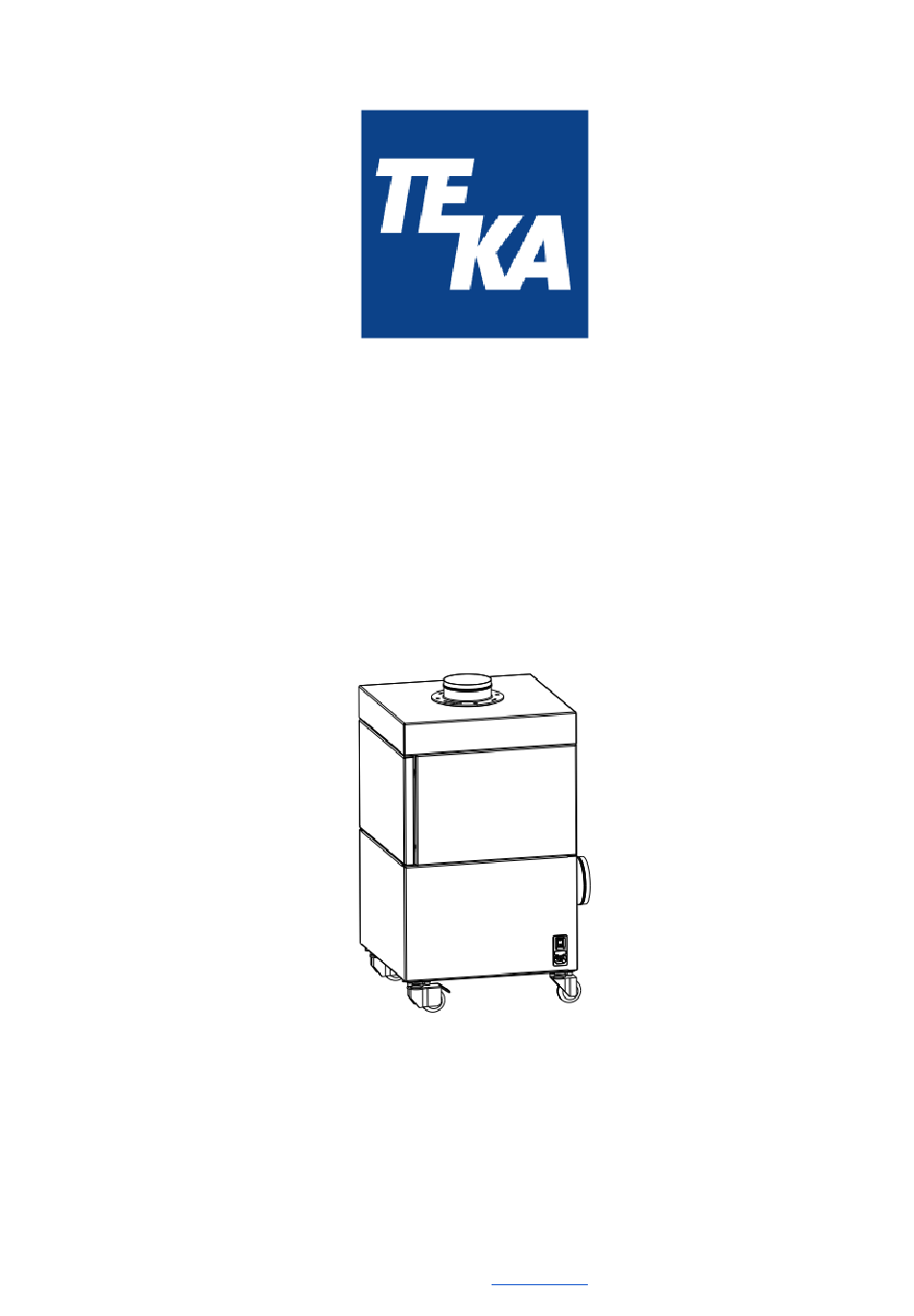

- Page 1 Operating instructions (Translation of the original operating instructions) AEH-600 TEKA Absaug- und Entsorgungstechnologie GmbH, Millenkamp 9, D-48653 Coesfeld, Tel.: +49 2541-84841-0, E-Mail: info@teka.eu, www.teka.eu...
-
Page 2: Table Of Contents
Table of contents 1. General 2. Description of the system elements 2.1. Illustration of the system elements 2.2. Functionality of the system 2.3. Intended use 2.4. Residual risk 3. Safety instructions 3.1. Definition of the hazard symbols 3.2. General safety instructions 4. -
Page 3: General
1. General Congratulations on purchasing the product from TEKA. Our engineers ensure that our devices reflect the state of the art through continuous development. Nevertheless, misuse or misconduct can endanger your safety. Please observe the following for a successful use of the device: Only authorised and instructed personnel can carry out transport, operation, maintenance and repair of the device. -
Page 4: Description Of The System Elements
2. Description of the system elements 2.1. Illustration of the system elements Installation example: Z.Nr. 18311701 Pos.1 Pocket filter housing Pos.4 Exhaust air nozzle Pos.2 Fan housing Pos.5 Connection for mains cable Pos.3 Suction nozzle Pos.6 Swivel castor 2.2. Functionality of the system The filter unit serves to suck off and filter polluted air (according to the intended use). -
Page 5: Intended Use
2.3. Intended use The device is intended for commercial use. If the device is made publicly accessible, it must never be operated unsupervised by authorized personnel, authorized by the operator. The filter unit is intended as suction and pre-filtration unit of fumes that result from lasers jobs. WARNING Improper use can damage parts and be a danger to life and limb! The device must not be used for the extraction of oil-laden welding fume, explosive dust... -
Page 6: Safety Instructions
3. Safety instructions 3.1. Definition of the hazard symbols The device is constructed according to the state of the art and the recognised safety regulations. Nevertheless, during use threats to life and limb of the user or other persons may arise. The impairment of the machine or other property are also possible. -
Page 7: Storage, Transport And Installation Of The Device
WARNING Dangers arising from electricity. The operator must ensure that electrical plants and equipment are only built, modified and maintained by a qualified electrician or under the direction and supervision of a qualified electrician. Do not work on components if you are not sure that these are disconnected. If necessary, disconnect the device from the electric power supply and secure it against unauthorized restarting. -
Page 8: Commissioning
Only operate the system if the necessary suction line is fitted. The suction line must be dimensioned according to the application in such a way that, if possible, no dust deposits occur in the suction line. If this has not already been carried out by TEKA, a suitably qualified employee must be consulted. -
Page 9: Electrical Connection
5.2. Electrical connection NOTICE Electric malfunction possible in cause of an incorrect power supply. Pay attention to the admissible supply voltage. Please observe the specifications on the type plate. ● Connect the mains cable (see chapter 2.1) to the power supply. 6. -
Page 10: Maintenance
7. Maintenance In accordance with national regulations, the operator is obliged to carry out repeat and functional tests. Unless otherwise specified by national regulations, we recommend regular visual inspections and functional tests of the device as described in the chapter “Maintenance intervals”. You find the chapter “Maintenance intervals”... -
Page 11: Recplacing The Pocket Filter
Carefully pull the frame (B) with the pocket filter out of the housing. ● Replace the pocket filter (C) out of the frame (B), and insert the new pocket filter. Only use TEKA spare filters. Otherwise the proper functioning of the unit is not guaranteed. ●... -
Page 12: Dismantling / Disposal
8. Dismantling / Disposal Only authorised personnel may disassemble the machine. WARNING Dangers arising from electricity. Before the dismantling of the machine it has to be disconnected from the power supply and all supply lines. CAUTION Whirling up dust is possible due to the deposited dust. During all work a suitable respiratory protection and protective clothing have to be worn. -
Page 13: Diagnostics And Troubleshooting
A recommissioning of the device must only occur if it is ensured that the system is functionally equivalent to the original state. Repairs may only be carried out by TEKA personnel or, after consultation with TEKA GmbH, by the personnel authorised by the operator. -
Page 14: Technical Data
11. Technical data Version 230 V 115 V Supply voltage Frequency Type of current Engine power 0,315 0,315 Current intake 2,15 4,15 Air flow volume max. m³/h Negative pressure max. 2800 Protection class IP54 ISO class Width Depth Height Weight Sound pressure level dB(A) Allowed ambient temperature... -
Page 15: Ec Declaration Of Conformity
This declaration will become void if the device is exposed to modifications that are not approved by the manufacturer in written form. Authorized representative for the technical documentation: TEKA Absaug- und Entsorgungstechnologie GmbH, Millenkamp 9, D-48653 Coesfeld (Jürgen Kemper, managing director) Coesfeld, 3rd january 2023 BA_AEH-600_20230808_EN 08.08.2023... -
Page 16: Training Protocol
13. Training protocol Designation of the device: AEH-600 (This form can be used by the operator to document the training of the employees. Training should be performed by authorized personnel only. Refer to the instructions in Chapter "Safety Instructions") By his signature, the employee confirms that he has been instructed regarding the following items:... -
Page 17: Maintenance Intervals
Maintenance work must always be documented by means of a protocol. The approach of the maintenance measures is described in chapter "Maintenance". Maintenance interval Maintenance work Chapter recommended by TEKA determined by the operator Replacing the pocket filter monthly (or check the degree of pollution) 14.2. -
Page 18: Visual Inspection Of The Device
14.2.1. Visual inspection of the device Visual inspection: Observation that there are no visible safety-related defects. WARNING Danger arising from the ready to operate condition of the device. Follow the procedure as described in the chapter “Set to maintenance state”. The following steps must be carried out in the course of the visual inspection: ●... -
Page 19: Electrical Test Of The Electrical Lines And Earthing Connections
14.2.3. Electrical test of the electrical lines and earthing connections WARNING Danger arising from electricity. The operator is responsible for ensuring that all work on electric components is carried out by authorised and qualified personnel. The device is subject to regular electrical checks by the operator of the device, and are subject to national standards of the different countries.
