Section 15
4. Pry the fuse housing out from the power entry module.
5. Replace the blown fuse(s) with the proper type and rating.
6. Reinstall the fuse housing. When positioning the housing into the power entry module make sure that it
is oriented correctly. Press the fuse housing back into the power entry module.
7. Close the fuse access door and verify that the proper mains operating voltage is displayed.
114
SMO User's Manual
CO
2

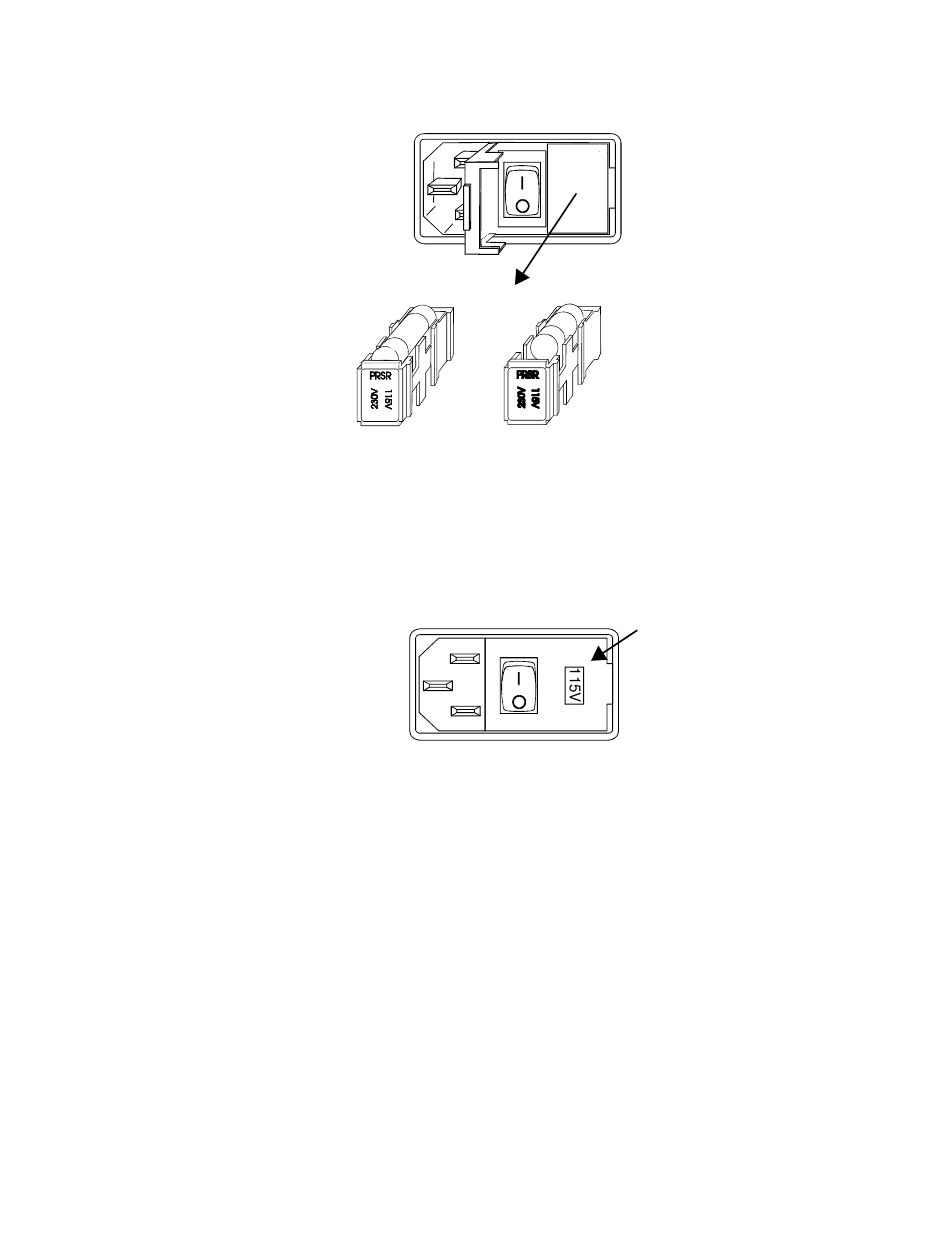

Fuse housing
3AG type
NOTE: 5 mm X 20 mm fuses are
installed toward the "back" of the
OR
fuse housing as shown
5 X 20mm type
Line operating voltage
Mains Voltage Configuration
Rev. 04
