Running the Software
Connect the USB programmer cable to the Smart Switch. Hold a magnet to the indicated MAVT™ point on the
Smart Switch. Wait about 2 seconds. While keeping the magnet against the Smart Switch, connect the USB
programmer cable to a USB port on the PC. Run the software from the Start | All Programs | PCB EE225
Software menu item.
Initially the screen will appear as in Error! Reference source not found. with a yellow bar and status indicating
'Initializing...' followed by the message: "Connecting to USB Dongle...".

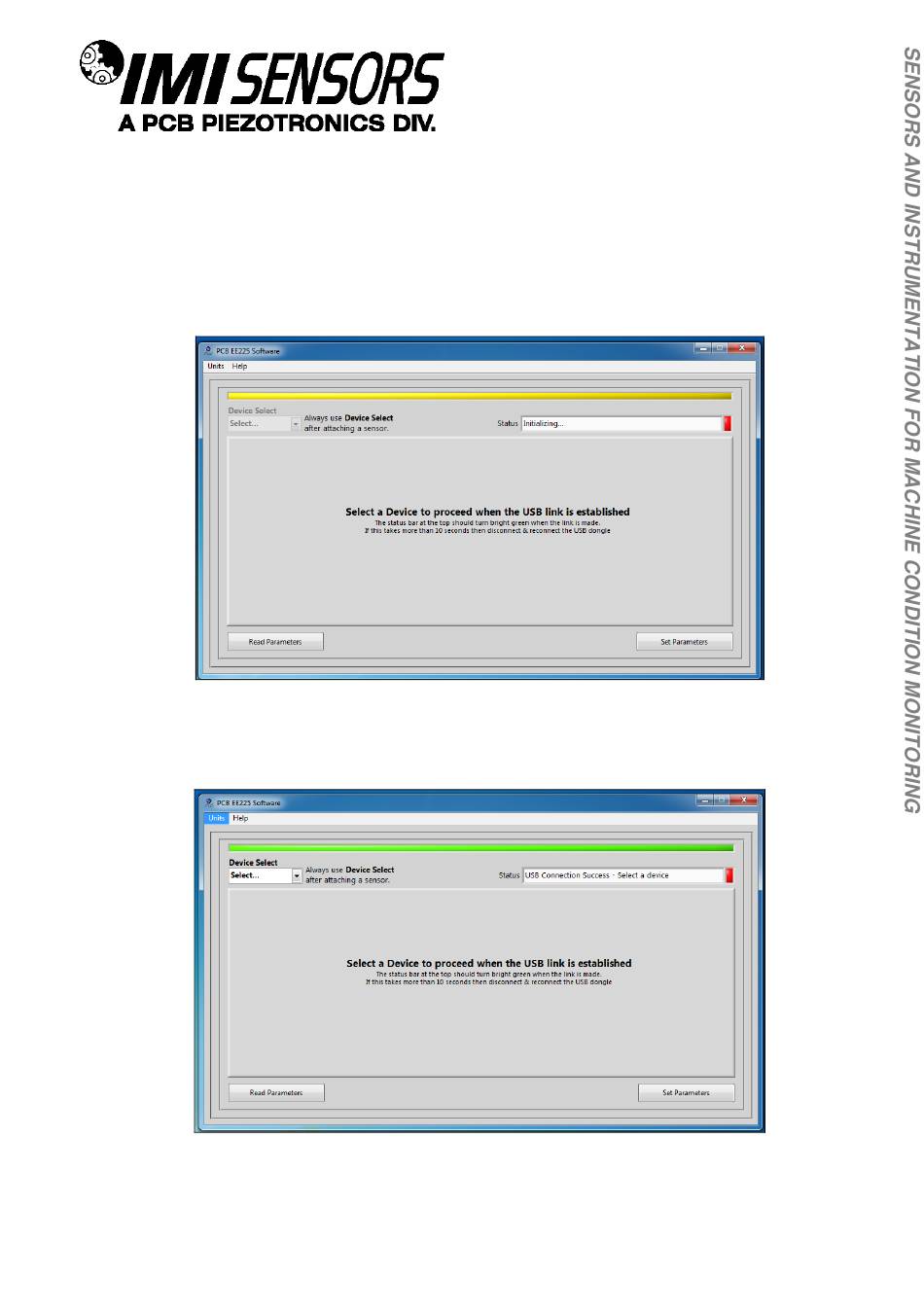

Figure 32 – Software While Connecting to USB Programmer Cable
Once the connection is made the bar at the top of the screen will turn green and the status will indicate "USB
Connection Success - Select a device". If the software and USB programmer cable fail to connect, remove and
reinsert the USB programmer cable.
Figure 33 – Software After Connecting to USB Programmer Cable
