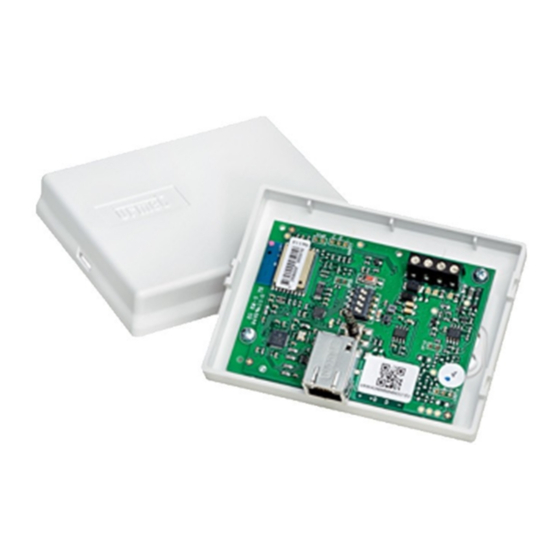

urmet domus 1061/014 Instruction Manual

Iotc interfaces
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

Download this manual

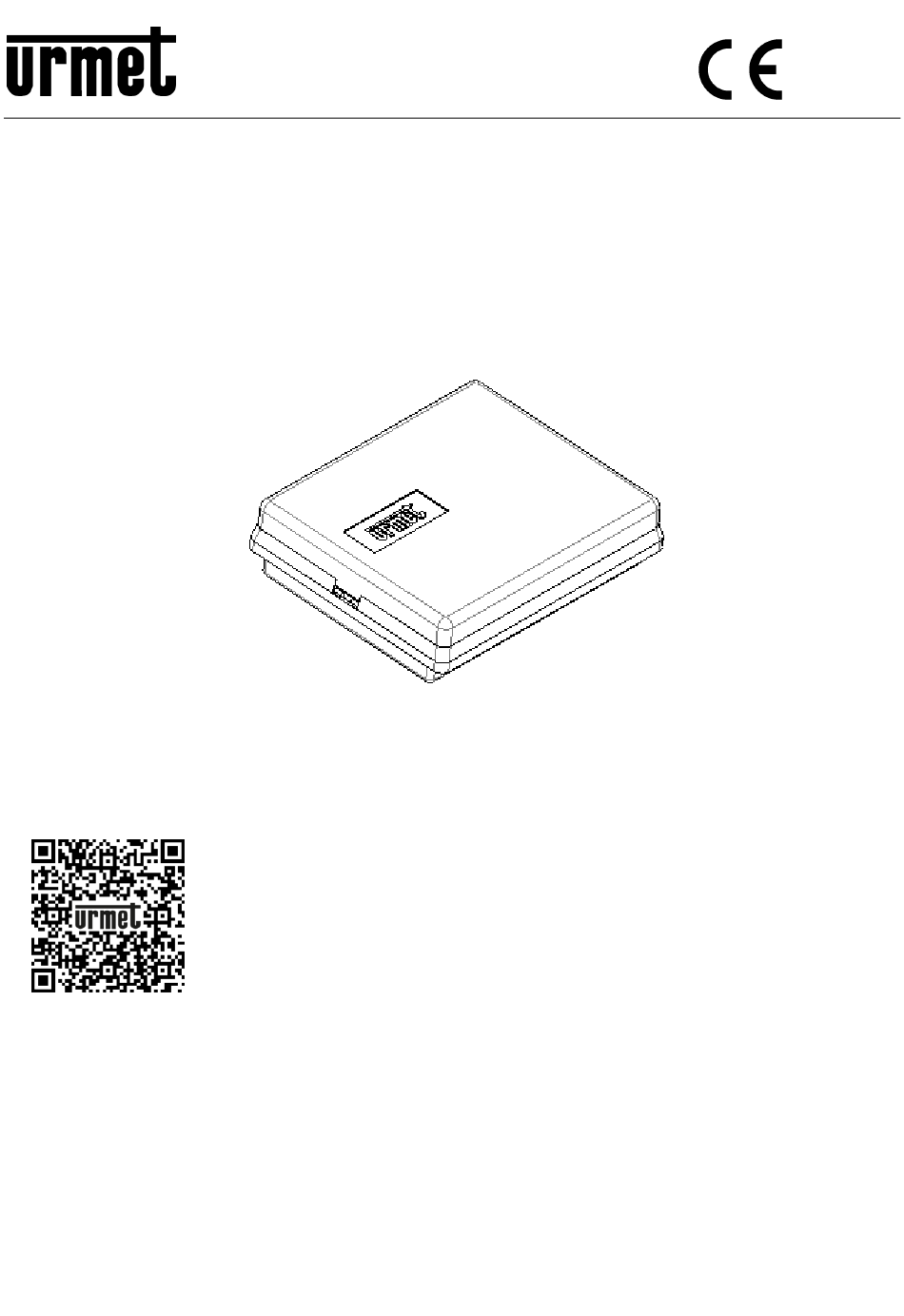

Mod.
1061
DS1061-043B
LBT20658
IOTC INTERFACES
INTERFACE IOTC
Ref./Réf. 1061/014
Through the following QR Code, it is possible to download the eventual new version of the
booklet in English and French language
http://qrcode.urmet.com/default.aspx?prodUrmet=135937&lingua=en
INSTRUCTION MANUAL
LIVRET D'INSTRUCTIONS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1061/014 and is the answer not in the manual?

Questions and answers

Related Manuals for urmet domus 1061/014

Summary of Contents for urmet domus 1061/014

  • Page 1 Mod. 1061 DS1061-043B LBT20658 IOTC INTERFACES INTERFACE IOTC Ref./Réf. 1061/014 Through the following QR Code, it is possible to download the eventual new version of the booklet in English and French language http://qrcode.urmet.com/default.aspx?prodUrmet=135937&lingua=en INSTRUCTION MANUAL LIVRET D'INSTRUCTIONS...

  • Page 2: General Description

    GENERAL DESCRIPTION The IOTC 1061/014 interface is an optional device, which can be used to remotely manage the control units Ref. 1061/006 and Ref. 1061/006A using a mobile device and/or tablet via a modem router.

  • Page 3: Installation

    INSTALLATION DS1061-043B...

  • Page 4: Bus Connection

    The module can be installed in two different ways:  Wall fitted by means of screws and bolts (see Fig. 5)  In a flush-mounting box. Place the device in a place:  At a height not exceeding 2 metres from the floor ...
  • Page 5 CONFIGURATION After having positioned and wired the device to the bus of the control unit (operation to be performed with the control unit not powered) proceed with: Bus address configuration There are 4 dip-switches on the board to set the desired address (see table below): DIP3 DIP2 Address of the device...

  • Page 6: Led Operation

    RESET NETWORK PARAMETERS Proceed as follows to reset the network parameters:  Power the device from the bus (disconnect and reconnect the negative supply of the bus).  Immediately hold down the reset button for at least 5 seconds until the green LED lights up fixed. Now release the button.

  • Page 7: Technical Specifications

    TECHNICAL SPECIFICATIONS ⎓ Nominal power voltage ........................9 ÷ 15V ⎓ Rated Current ......................70mA ±30% @ 13,8 V Frequency band ......................2400 ÷ 2483.5 MHz Output power (Max) .......................... 20 dBm LAN baud rate ..........................10Mbps WiFi baud rate ..........................54Mbps Operation temperature......................

  • Page 8: Description Générale

    Urmet Secure, téléchargeable à l’adresse www.urmet.com. DESCRIPTION GÉNÉRALE L’interface IOTC 1061/014 est un dispositif optionnel qui permet de gérer à distance via des dispositifs mobiles et/ou des tablettes, les centrales Réf. 1061/006 et Réf. 1061/006A par un modem routeur.
  • Page 9 INSTALLATION DS1061-043B...
  • Page 10 Le module peut être installé de deux manières différentes :  En apparent par des vis et des chevilles (voir Fig. 5)  A l’intérieur d’une boîte encastrée. Placer le dispositif dans un endroit :  A une hauteur ne dépassant pas 2 mètres du sol ...
  • Page 11 CONFIGURATION Après avoir positionné et connecté le dispositif au bus de la centrale (opération à effectuer lorsque la centrale est hors tension), procéder comme suit : Configuration de l'adresse du bus La carte présente 4 commutateurs DIP ; pour définir l’adresse souhaitée, se reporter au tableau ci- dessous : DIP3 DIP2...
  • Page 12 RAZ DES PARAMÈTRES DU RÉSEAU Si on souhaite réinitialiser les paramètres du réseau, il faut :  Alimenter le dispositif à partir du bus (déconnecter et reconnecter le négatif d’alimentation du bus).  Maintenir le bouton de réinitialisation immédiatement enfoncé pendant au moins 5 secondes, jusqu’à...

  • Page 13: Caracteristiques Techniques

    CARACTERISTIQUES TECHNIQUES ⎓ Tension nominale d’alimentation....................9 ÷ 15V ⎓ Absorption nominale ....................70mA ±30% @ 13,8 V Bande de fréquence ...................... 2400 ÷ 2483.5 MHz Puissance de sortie (Max) ........................ 20 dBm Débit en bauds connexion LAN ......................10Mbps Débit en bauds connexion WiFi ......................54Mbps Température de fonctionnement ...................
  • Page 14 SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, Urmet S.p.A. declares that the radio equipment type: IOTC Interfaces – Ref. 1061/014 is in compliance with Directive 2014/53/UE. The full text of the EU declaration of conformity is available at the following internet address: www.urmet.com...
  • Page 15 ENGLISH DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE) The symbol of the crossed-out wheeled bin on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.
  • Page 16 DS1061-043B LBT20658 URMET S.p.A. Area tecnica 10154 TORINO (ITALY) servizio clienti +39. 011.23.39.810 VIA BOLOGNA 188/C http://www.urmet.com DS1061-043B Telef. +39. 011.24.00.000 (RIC.AUT.) e-mail: info@urmet.com +39. 011.24.00.300 - 323 MADE IN ITALY...
