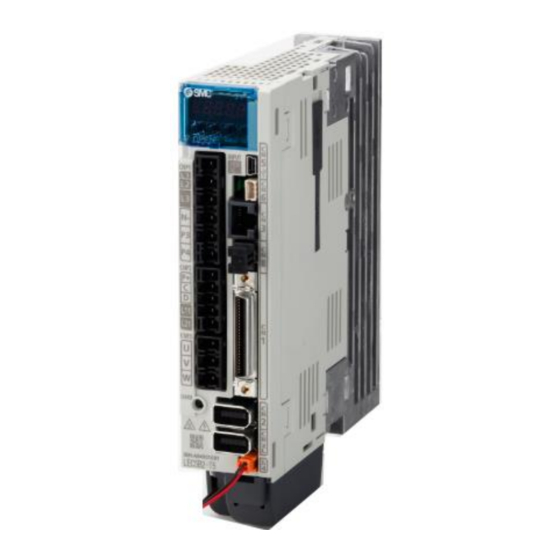

SMC Networks LECSB2-T Series Operation Manual

Ac servo motor driver
Hide thumbs Also See for LECSB2-T Series:

Advertisement

Quick Links

Download this manual
Doc No. DOC1015792
NN57170400
(Simplified Edition)
PRODUCT NAME
AC Servo Motor Driver
(Pulse input type/Positioning type)
MODEL / Series / Product Number
LECSB2-T□ Series
This product can be used by adding "MR Configurator2 dedicated file for LECSB-T"
TM
to Setup software (MR Configurator2
:LEC-MRC2□).
TM
This is an additional file that is absolutely necessary when setting the LECSB-T with MR Configurator2
.
Please download the dedicated file from SMC website.
, select MR-J4-A-S099(□) as the model.
TM
When connecting LECSB-T with MR Configurator2
For SMC products and SMC purchased products, please contact the SMC sales office.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LECSB2-T Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SMC Networks LECSB2-T Series

Summary of Contents for SMC Networks LECSB2-T Series

  • Page 1 Doc No. DOC1015792 NN57170400 (Simplified Edition) PRODUCT NAME AC Servo Motor Driver (Pulse input type/Positioning type) MODEL / Series / Product Number LECSB2-T□ Series This product can be used by adding "MR Configurator2 dedicated file for LECSB-T" to Setup software (MR Configurator2 :LEC-MRC2□).
  • Page 2 Contents Contents..................... 1 Introduction ....................6 Terms ......................6 1. Configuration ..................7 2. Pre-Operation Procedure ..............8 2.1 Flow chart ......................8 3. Wiring ..................... 9 3.1 Power Supply Wiring..................9 3.2 Connection of I/O signals ................10 3.2.1 Position control mode (sink input/output interface) ..........10 3.2.2 Speed control mode (sink input/output interface) ..........
  • Page 3 5.5.2 Signals required for operation within the input signal automatic ON selectable range .......................... 37 5.5.3 Initial allocation of I/O signals ................... 41 5.5.4 Signal Allocation using Setup Software ..............43 5.5.5 Allocation Examples for Position Control Mode (Pulse Input) ......44 5.5.6 Setting example when changing the number of point tables in positioning (point table) ..........................
  • Page 4 7.5.1 How to Set ........................89 7.5.2 Commands in Program Method ................90 7.5.3 Program-based Operation Instruction Method ............91 7.6 Positioning Mode (Pushing Operation) ............92 7.6.1 How to Set ........................92 7.6.2 Point Table-based Operation Instruction Method ........... 93 7.6.3 Timing Chart ........................
  • Page 5 LECSB2-T□ Series / Driver Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger”. They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC), Japan Industrial Standards (JIS) *1.) and other safety regulations*2.).
  • Page 6 LECSB2-T□ Series / Driver Safety Instructions Caution The product is provided for use in manufacturing industries. The product herein described is basically provided for peaceful use in manufacturing industries. If considering using the product in other industries; consult SMC beforehand and exchange specifications or a contract if necessary.
  • Page 7 Introduction When using the LECSB2-T□, prepare the "LECSB2-T□ Operation Manual" and use it together. For the handling and details of equipment other than this driver, please refer to the manual of the equipment you are using. Check that the main circuit power supply (AC200V) and control power supply (AC200V) are wired. . For wiring, refer to "...
  • Page 8 1. Configuration Equipment and wiring needed to get started. Provided by customer Provided by customer 200 V AC Ｌ1 Ｌ2 Ｌ3 N(-) Ｐ3 Ｐ4 Ｐ(+) Ｌ11 Ｌ21 Electric Actuators Ex) LEF Provided by customer Driver LECSB2-T* Motor cable LE-CSM-*** Encoder cable LE-CSE-*** I/O connector LE-CSNB...
  • Page 9 2. Pre-Operation Procedure 2.1 Flow chart Wiring See “3. Wiring” Parameter setting See “4. List of Parameters for each Mode” Parameter Settings using the Setup Software (MR Configurator2 See “5. Parameter Settings using the Setup Software (MR )” Configurator2 Signal Assignment Configuration See “5.5 Changing I/O Signal Allocation”...
  • Page 10 3. Wiring 3.1 Power Supply Wiring Connect the actuator and driver power supply. This wiring diagram is common for each mode. (1) LECSB2-T□ (Absolute encoder) Example) When the power supply voltage is AC200V single-phase/sink input/output interface [1] Power supply input terminals: Supply specified power (single -phase AC200 to 240V) to L and L [2] - Connect the power input terminals (U, V, W ) of the motor to the power terminals (U, V, W ) of the driver.
  • Page 11 3.2 Connection of I/O signals An example of connecting the input/output signals of the driver is shown. 3.2.1 Position control mode (sink input/output interface) (1) Connection example An example of connection in position control mode is shown below. This connection example is for use with Mitsubishi Electric Corporation's PLC/positioning unit (RD75D/LD75D/QD75D) when used in position control mode.
  • Page 12 (2) Input signal Position control mode: P, Speed control mode: S, Torque control mode: T, Positioning mode (Point table method): CP, Positioning mode (Program method): CL ●: Automatic ON can be set ○: Initial setting △: Assignment is available with parameter －: Assignment is not available Automatic Symbol Device name...
  • Page 13 ●: Automatic ON can be set ○: Initial setting △: Assignment is available with parameter －: Assignment is not available Automatic Symbol Device name Function Point table No/ ● ○ Program No. selection 1 Point table No/ ● ○ Program No selection 2 Point table No/ ●...
  • Page 14 3.2.2 Speed control mode (sink input/output interface) (1) Connection example An example of a connection for the speed control mode is shown below. Connect wires as necessary. For the source I/O interface, refer to "LECSB2-T□ Operation Manual Chapter 3.2.2 (2)". For notes and wiring details, refer to "LECSB2-T□...
  • Page 15 3.2.3 Torque control mode (sink input/output interface) (1) Connection example An example of a connection for the torque control mode is shown below. Connect wires as necessary. For the source I/O interface, please refer to "LECSB2-T□ Operation Manual Chapter 3.2.3 (2)". For notes and wiring details, refer to "LECSB2-T□...
  • Page 16 3.2.4 Positioning Mode (Sink I/O Interface) (1) Connection example An example of a connection for the positioning mode (point table) is shown below. Connect wires as necessary. For the source input/output interface, refer to "LECSB2-T□ Operation Manual Chapter 3.9". For notes and wiring details, refer to "LECSB2-T□ Operation Manual Chapter 16.2.1 (1)". For programming method, please refer to "LECSB2-T□...
  • Page 17 4. Parameter List for each Mode This is a parameter that needs to be set in each control mode. Set as necessary. For details, refer to "LECSB2-T□ Operation Manual, Chapter 5" and "LECSB2-T□ Operation Manual (Simplified Edition), Chapter 5.3". For parameters other than this item, refer to "LECSB2-T □ Operation Manual, Chapter 5 ". Setup software (MR Configurator2 : L EC-MRC2*) is always required to set parameters.
  • Page 18 4.3 Speed control mode (1) [Basic setting parameter (No. PA□□)] № Abbreviation name initial value unit PA08 Auto tuning mode 0001h PA09 Auto tuning responsiveness (2) [Extended setting parameter (No. PC□□)] № Abbreviation name initial value unit PC01 STAs Velocity acceleration time constant PC02 STBs speed deceleration time constant...
  • Page 19 4.5 Positioning mode (1) [Basic setting parameter (No. PA□□)] № Abbreviation name initial value unit PA03 * ABS Absolute position detection system 0000h PA06 Electronic gear numerator (command input pulse magnification numerator) PA07 Electronic gear denominator (command input pulse magnification denominator) PA08 Auto tuning mode...
  • Page 20 5. Parameter setting from setup software (MR Configurator2 The procedure for setting typical parameters from the setup software (MR Configurator2 : LEC-MRC2*) is explained. For details of parameters, refer to "LECSB2-T Operation Manual, Chapter 5 ". 5.1 Setup software (MR Configurator 2 *1 Setup software version 1.52E or higher is required.
  • Page 21 5.2.1 Starting the setup software (1) Connect the PC and LECSB2-T with a USB cable. (2) Turn on the power of LECSB2-T. (3) Start “ MR Configurator2 ”. When it was started, the following window will be displayed. - 20 -...
  • Page 22 5.2.2 System Settings (1) Click "Project" - "New" in the setup software to display the "New" window. 5.2.3 Model Selection (1) Select " MR-J4-A-S099(□) " for the model. - Select "Standard" in "Operation mode". - Set the "station" for USB connection in "station". Match the station number set in parameter [PC20]. The initial value of parameter [PC20] is "0".
  • Page 23 5.2.4 Driver ON LINE Check Check that the driver is enabled (ONLINE). Check that the “ONLINE/OFFLINE” icon is displayed “ ”. ” is displayed, it is offline. If“ * If it is "Offline", communication between the PC and the driver is not possible. Please check the following points. - Is the power of the driver turned on? - Is the PC and the driver connected with a USB cable? - Is the USB driver installed?
  • Page 24 5.3 Parameter setting (Driver side) Setup software (MR Configurator2 : L EC-MRC2*) is always required to set parameters. *1 Setup software 1.52E or higher is required. *2 Prepare the setup software (MR Configurator2 : LEC-MRC2*) separately. *3 Prepare the USB cable (LEC-MR-J3USB) separately. (1) Click "Parameter"...
  • Page 25 5.3.1 Change Parameter Block Enable setting of all parameters. (1) "PA19" to "00AB" in "Basic Settings" (2) the cursor to " PA19" and click the "Selected Items Write" button. (3) Turn off the power and then turn it on again. parameters will be enabled. ②...
  • Page 26 5.3.3 How to set parameters (Example: Operation mode change) Set the parameters for each actuator. Change the parameter value according to your company's usage. For details of each parameter, refer to "LECSB2-T□ Operation Manual, Chapters 5,16.21 and 16.22 ". "LECSB2-T□ Operation Manual Appendix 11 " for recommended parameter values for each actuator. For position control mode (pulse input), do not change PT03/PT04/PT05/PT08/PT10/PT11 and do not change from the initial value.
  • Page 27 5.3.4 Recommended Parameter Values by Actuator "LECSB2-T□ Operation Manual Appendix 11 " for recommended parameter values for each actuator. 5.3.5 Absolute position detection system * When using the absolute position detection system in the position control mode (pulse), an input/output unit is required in addition to the positioning unit.
  • Page 28 5.3.6 Electronic Gears It is necessary to set the electronic gear to convert the number of command pulses from the positioning unit (PLC) into the movement amount of the actuator. Refer to "LECSB2-T□ Operation Manual Appendix 11 " for the recommended value of the electronic gear for each actuator.
  • Page 29 5.3.7 Control mode selection (1) To use position control mode (pulse input), navigate to the "Basic" tab of the "Parameter Setting" window - "Control mode selection" - Please select "Position control mode". (“PA01” parameter in the "Basic" tab of the List display also automatically changes to "1000".) To use positioning mode (point table), navigate to the "Basic"...
  • Page 30 5.3.8 Set the parameter of command pulse input form (position control mode (pulse input) only) For position control mode (pulse input), set the command pulse input form from the host device (positioning unit). - Input form (3 types) (1) Forward rotation pulse train / Reverse rotation pulse train (2) Pulse train / Sign (3) A-phase pulse train / B-phase pulse train - Logic (2 types)
  • Page 31 Command input pulse train form selection Forward rotation Reverse rotation Setting value Pulse train form (positive direction) command (negative direction) command Forward rotation pulse train (Positive direction pulse train) _ _ 1 0 Reverse rotation pulse train (Negative direction pulse train) Negative _ _ 1 1 Pulse train + sign...
  • Page 32 (1) Change "PA13 " to " 0301 " in the "Basic (List display)" tab. (2) Click the "Axis Writing" button. (3) Turn off the power and then turn it on again. The parameters will be enabled. ② ① - 31 -...
  • Page 33 5.3.9 Verify of parameters To compare the "parameters" set in the setup software with the "Parameters set in the driver" / "Initial value parameters" / "Saved parameters", perform “Verify”. (1) Click the “Verify” button on the “Parameter Setting” window to display the “Verification Setting” window. (2) Select the comparison target.
  • Page 34 5.3.10 Parameter initialization To initialize the parameters in the driver, perform "Set to Default". Initializing a parameter is irreversible. Be sure to save the parameters in use. (Refer to "LECSB2-T□ Operation Manual (Simplified Edition), Chapter 5.8.1" for how to save parameters.) (1) On the “Parameter Setting”...
  • Page 35 5.4 JOG operation by setup software (1) Click "Test Mode" - "JOG Mode" in the setup software to display the "JOG Mode" window. (2) Click "OK". (When using this function, external input signal operation will be disabled. When controlling from a PLC or host device, be sure to turn the power OFF and then ON again before using.) ①...
  • Page 36 5.4.1 JOG operation (1) Check the actuator at low speed to avoid accidental collision with the end of the stroke. Refer to "LECSB2-T□ Operation Manual (Simplified Edition), section 5.6.2" for setting the motor speed. For setting the acceleration/deceleration time constant, refer to "LECSB2-T□ Operation Manual (Simplified Edition), section 5.6.3".
  • Page 37 5.5 How to change the allocation of I/O signals Input/output signal assignment can be changed as appropriate from initial settings. When operating the actuator, it may be necessary to change the allocation of I/O signals. Please allocate according to your system specifications. Please note that the signal that is included in the initial setting will be changed when setting.
  • Page 38 5.5.2 Signals required for operation within the input signal automatic ON selectable range (1) Other than positioning mode (a) PD01: Input signal automatic ON selection 1 SON, LSP, and LSN to turn ON automatically, set "PD01 " to "0C04". OFF: Servo OFF Servo ON ON: Servo ON (operable) OFF: Forward rotation stroke end...
  • Page 39 (2) Positioning mode (a) PD01: Input signal automatic ON selection 1 SON, LSP, LSN, and EM2 to turn ON automatically, set "PD01" to "1C04". OFF: Servo OFF Servo ON ON: Servo ON (operable) OFF: Forward rotation stroke end Forward rotation stroke end ON: Forward rotation stroke end release (B contact) (operable)
  • Page 40 (b) PD41: Input signal automatic ON selection 3 MD0 to turn ON automatically, set "PD41" to "0001". PD41 Operation mode selection 1 OFF: Manual operation mode → JOG operation available. ON: Automatic operation mode → Home position return/positioning mode operation available. PD 41 : Input signal automatic ON selection 3 Initial value When turning on the MD0 to...
  • Page 41 * When enabling "Servo ON" (SON), "Stroke end" (LSP, LSN), and "Forced stop 2" (EM2) signals (1) "PD01" to "1C04" in the "I/O" tab of the List display. * Input signal automatic ON selection can also be performed from the "Basic" tab of the Digital I/O. For details, refer to "LECSB2-T□...
  • Page 42 5.5.3 Initial allocation of I/O signals (1) Position control mode (Pulse input) The initial allocation of I/O signals is as follows. - PD03 ~ PD14, PD17 ~ PD22 Input signal assignment (CN1-15 ~ CN1-19, CN1-41, CN1-43 ~ CN1-45) - PD23 ~ PD26, PD28, PD47 Output signal assignment (CN1-22 ~ CN1-25, CN1-49, CN1-13/CN1-14) nput signal points (10): (Position control mode) and initial assignment...
  • Page 43 (2) Positioning mode (Point table) The initial allocation of I/O signals is as follows. - PD03 ~ PD14, PD17 ~ PD22, PD43 ~ PD46 Input signal assignment (CN1-15 ~ CN1-19, CN1-41, CN1-43 ~ CN1-45, CN1-10/CN1-37, CN1-35/CN1-38) - PD23 ~ PD26, PD28, PD47 Output signal assignment (CN1-22 ~ CN1-25, CN1-49, CN1-13/CN1-14) Input signal points (12): (Positioning mode) and initial assignment...
  • Page 44 5.5.4 Signal Allocation using Setup Software (1) Click "Parameter" - "Parameter Setting" in the setup software to display the "Parameter Setting" window. (2) Click the "I/O" tab in the List display. * Allocation of I/O signals can also be performed from the "Basic" tab of the Digital I/O. For details, refer to "LECSB2-T□...
  • Page 45 5.5.5 Allocation Examples for Position Control Mode (Pulse Input) (1) Example of Internal torque limit selection (TL1) Setting When changing CN1-16 pin " Non " to "Internal torque limit selection" (TL1) ① (1) Set "PD05" from "2100" to "2109". PD05 Any input device can be assigned to CN1-16 pin.
  • Page 46 (2) Example of signal assignment by setup software When changing CN1-16 pin from " Non " to "internal torque limit selection" (TL1) (1) “PD05 " from " 2100 " to " 2109 " on the " I/O" tab in the List display. * Allocation of I/O signals can also be performed from the "Basic"...
  • Page 47 5.5.6 Setting example when changing the number of point tables in positioning (point table) A maximum of 255 points can be set for the point table using input signals DI0 ~ DI7. Initially, only four signals are assigned to DI0 (CN1-19), DI1 (CN1-41), DI2 (CN1-10), and DI3 (CN1-35). A table of 256 points can be specified, but only 255 points of the point table can be specified because one of them is used for home position return...
  • Page 48 (1) Set PD10 from 0808 to 3C08. PD10 Any input device can be assigned to the CN1-18 pin. *DI4H _ _ x x Not used with the positioning mode. Input device x x _ _ Positioning mode Device selection selection 4H set value Input device (Note1) 0 2 _ _...
  • Page 49 (2) Example of signal allocation by setup software When changing CN1-18 pin "Reverse rotation start" (ST2) to "Point table No./Program No. selection 5" (DI4). (1) Set " PD10 " from "0808 " to " 3C08 " on the " I/O" tab in the List display. * Allocation of I/O signals can also be performed from the "Basic"...
  • Page 50 5.5.7 I/O Signal Allocation Check The signal names allocated to CN1 and the "ON"/"OFF" status (including wiring confirmation) can be checked. When changing the parameters of "PD03" ~ "PD14", "PD17" ~ "PD26", "PD28", "PD43" ~ "PD47", Check if it is assigned normally. (1) Click "Monitor"...
  • Page 51 5.5.8 How to change the allocation from Digital I/O – Basic Tab (1) How to change the input signal automatic ON selection from Digital I/O "Basic" tab. (1) Click "Parameter" - "Parameter Setting" in the setup software to display the "Parameter Setting" window. (2) Click the "Basic"...
  • Page 52 (2) How to change the input and output signals from Digital I/O "Basic" tab. (1) Click "Parameter" - "Parameter Setting" in the setup software to display the "Parameter Setting" window. (2) Click the "Basic" tab in Digital I/O. (3) Click “Device Setting" button to display the "Device Setting" window. (4) Click the signal to change the allocation and change the signal.
  • Page 53 5.6 Positioning Operation using Setup Software Click "Test Mode" - "Positioning Mode" in the setup software to display the "Move Distance Unit Selection" window. (2) Click “OK” button. (When using this function, external input signal operation is disabled. When controlling from a PLC or host device, be sure to turn off the power and then turn on the power again before using.) (3) Check the “Command pulse unit (Electronic gear valid)”...
  • Page 54 5.6.1 Positioning Operation (1) Operate the actuator at low speed at first so that it does not accidentally collide with the end of the stroke. When changing the speed or amount of movement, increase it gradually and operate while checking. Refer to "LECSB2-T□...
  • Page 55 5.6.2 Motor Speed Setting <Rotation speed setting> (1) Set the motor rotation speed (r/min) * r/min(rpm): Motor command rotation speed (motor rotation speed per minute) rotation speed to a value between 0 and the allowable speed range of each actuator. Please note that if 0 is set, the actuator will not operate.
  • Page 56 5.6.3 Acceleration/deceleration Time Constant Setting <Acceleration/deceleration time constant setting> (1) Set the acceleration/deceleration time constant (ms). The acceleration/deceleration time constant is set by the time (ms) to reach the rated rotation (3000[r/min]). Acceleration/deceleration time constant to a value within the allowable acceleration/deceleration range of each actuator.
  • Page 57 5.6.4 Movement Amount Setting and Operation <Movement amount setting> (1) Set the movement amount [ pulse]. Set a value within the stroke range. (2) The actuator performs positioning operation with “Forward CCW(F)” and “Reverse CW(R)”. ( If it does not work , check the wiring and parameters.) When performing positioning operation using the setup software, changing the setting of parameter "PA14 (Rotation direction selection)"...
  • Page 58 5.7 Positioning Operation (Point Table) using Setup Software This function is valid only in positioning (point table) mode. When performing positioning operation in positioning (point table) mode, it is necessary to set the point table (target position, rotation speed, acceleration time constant, deceleration time constant, etc.). 5.7.1 Point Table List (1) Click "Positioning data"...
  • Page 59 5.7.2 Point Table Data The data registration method of the point table changes depending on the setting of the parameter "PT01: Command mode selection". (1) Parameter "PT01: Command mode selection" setting is “0000: Absolute value command system/mm unit” Item Setting range Unit Description (1) When using this point table as absolute value command system.
  • Page 60 5.7.3 Point Table (Target Position) Setting <Target position setting> (1) Set the parameter "PT01 ('Command mode selection' - 'Position data unit ')" to "000□". Set the position data unit ([Pr. PT01]). [Pr.PT01] Setting Position data unit _ 0 _ _ _ 1 _ _ inch _ 2 _ _...
  • Page 61 Parameter "PT03 (Feed selection function)" Changing (1) Set "PT03" in the "Positioning control" tab. (2) Click the "Axis writing" button. (3) Turn off the power and then turn it on again. The parameters will be enabled. ② ① - 60 -...
  • Page 62 Changing the position data input range of the target position (1) Click the "Detailed Setting" button in the “Point Table" tab. (2) Make sure or change the "Feed length multiplication (STM) (times)". (3) Click the "OK" button. (4) The position data input range of the target position changes depending on the set value of Feed length magnification (STM) (times).
  • Page 63 5.7.4 Point Table (Rotation Speed) Setting <Rotation speed setting> (1) Set the rotation speed (r/min). * r/min(rpm): Motor command rotation speed (motor rotation speed per minute). The the rotation speed (r/min) must be converted from the movement speed (mm/s). Refer to the following for the conversion method. Conversion example when moving an actuator with a lead of 20 [mm] at a movement speed of 500 [mm/sec] Rotation (rps) / s...
  • Page 64 5.7.5 Point Table (Acceleration Time Constant and Deceleration Time Constant) Setting <Acceleration time constant and deceleration time constant setting> (1) Set the acceleration time constant (ms) and the deceleration time constant (ms). The acceleration/deceleration time constant (ms) must be converted from the acceleration/deceleration (mm/s Refer to the following for the conversion method.
  • Page 65 5.7.7 1 Step Feed When checking the operation of the set point table, test operation specifying the point table is possible. (1) Click "Test Mode" - "Single-step Feed" in the setup software to display the "Single-step Feed" window. (When using this function, external input signal operation is disabled. When controlling from a PLC or host device, be sure to turn the power OFF and then ON again before using.) (2) Enter the point table number to operate.
  • Page 66 5.8 Saving / Loading Parameters 5.8.1 Saving Parameters (1) Click “Save As” on the “Parameter Setting” window of the setup software to display the “Save As” window. (2) Specify the save location. (3) Enter an arbitrary parameter file name [.prm2]. (4) Click the “Save”...
  • Page 67 5.8.2 Loading Parameters (1) Click "Open" on the "Parameter Setting" window of the setup software to display the "Open" window. (2) Specify the file location. (3) Select the parameter file name [.prm2] to be read. (4) Click the “Open” button. The parameters will be loaded.
  • Page 68 5.9 Saving / Loading Project 5.9.1 Saving Project (1) Click "Project" - "Save As" in the setup software to display the "Save As Project" window. (2) Specify the save location. (3) Enter an arbitrary project file name [.mrc2]. (4) Click the “Save” button. The project will be saved in the specified folder.
  • Page 69 5.9.2 Loading Project (1) Click "Project" - "Open" in the setup software to display the "Open Project" window. (2) Specify the file location. (3) Select the project file name [.mrc2] to be read. (4) Click the "Open" button. The project will be loaded. ①...
  • Page 70 5.10 Saving / Loading Point Table 5.10.1 Saving Point Table (1) Click "Save As" on the "Point Table" window of the setup software to display the "Save As" window. (2) Specify the save location. (3) Enter an arbitrary point table file name [.ptb2]. (4) Click the "Save"...
  • Page 71 5.10.2 Loading Point Table (1) Click "Open" on the "Point table" window of the setup software to display the "Open" window. (2) Specify the file location. (3) Select the point table file name [.ptb2] to be read. (4) Click the "Open" button. The point table will be loaded.
  • Page 72 5.11 Acquisition of Motion Waveform by Graph Monitor By the graph monitor function in the setup software, he motion waveform during electric actuator operation can be obtained as described below. (1) Click "Monitor" - "Graph" in the setup software to display the "Graph" window. ①...
  • Page 73 5.11.1 Setting Items to display Graph Set the items for displaying analog and digital waveforms, the trigger conditions, and the time on the horizontal axis of the graph. Click the "Setting" tab in the "Setting" window to set the waveform display items, trigger conditions, and graph horizontal axis.
  • Page 74 (2) Trigger A "trigger" is a condition that determines when to display a graph. If the trigger conditions are not met, the waveform will not be displayed. (1) Click “ “ of "Data 1" to set the condition. (In general, set the Motor speed.) ①...
  • Page 75 (3) Waveform Set the waveform data to display the graph. Click “ “ of each “Analog” or “Digital” and set the type of waveform to be displayed. ① The main analog waveforms and digital waveforms that can be set with the LECSB2-T are as follows. ■...
  • Page 76 5.11.2 Trigger Wait Click the "Start" button to enter the trigger wait state. If the trigger conditions are met in this trigger waiting state, the waveform is acquired and displayed. Also, in the case of single-shot setting, the next measurement cannot be performed unless the "Start"...
  • Page 77 5.11.3 Operation Instruction A drive instruction is issued from the host side PLC, etc. to operate the actuator. Operation waveform acquisition starts when the trigger conditions in 5.11.1 (2) are met. When the time set in 5.11.1 (1) has elapsed from the start of acquisition, waveform acquisition will be end and the waveform will be displayed on the window.
  • Page 78 5.11.4 Saving Waveform After the waveform is displayed, save the data in three ways. (1) Click the "Save As" button. Specify the file name to save and save. A waveform data file (Extension gpf2) is created. When checking the waveform status again, it can be displayed in the graph window. (2) Click the "Save Image"...
  • Page 79 5.12 Display All Monitor List How to acquire the electric actuator status using the batch display function of the setup software is showing. (1) Click "Monitor" - "Display All" in the setup software to display the "Display All" window. (2) The status of each item will be displayed. If the setup software is offline, "----"...
  • Page 80 6. Home Position Return Method 6.1 Position Control Mode (Pulse Input) When using the home position return in position control mode (Pulse input), use the home position return function in the positioning unit of the PLC on the host side. Refer to the Operation Manual of the device used for the wiring, and setting of parameters, etc.
  • Page 81 Home position return method 0: Dog Type (Rear end detection Z phase reference) 1: Count Type (Front end detection Z phase reference) 2: Data set Type 3: Pushing Type 4: Home Position Ignore (Servo on position Home) 5: Dog Type (Rear end detection Rear end reference) 6: Count Type (Front end detection Front end reference) 7: Dog Cradle Type 8: Dog Type (Front end detection Z phase reference)
  • Page 82 (1) Devices and parameters Set the input device and parameters as follows. Item Devices / Parameters used Settings MD0 (Operating mode selection 1) Turn on MD0. Home position return mode DI0 (Point table number selection 1) ~ selection Turn off DI0 ~ DI7. DI7 (Point table number selection 8) Pushing type home position [Pr.PT04]...
  • Page 83 Note1 The torque limits that become effective here are as follows. Input device Effective torque limit (0: off, 1: on) Limit state value Pr.PT11 ＞ Pr.PT11 Pr.PT11 < Pr.PT11 ＞ Pr.PC35 Pr.PT11 Pr.PT11 Pr.PC35 < Pr.PT11 Pr.PC35 ＞ Pr.PT11 Pr.PT11 <...
  • Page 84 7. Operation Method of each Mode 7.1 Position Control Mode (Pulse Input) Positioning is performed by controlling the speed, acceleration / deceleration, direction, etc. of the motor with a pulse train. 7.1.1 Operating Instruction Command pulses (speed, acceleration / deceleration, direction, etc.) are input from the positioning unit to the driver, and the driver operates the actuator according to the command pulses.
  • Page 85 7.2 Speed Control Mode Smoothly control the rotation speed and direction of the servo motor with high accuracy. LECSB2-T can perform analog speed command. 7.2.1 Operating Instruction The servo motor rotates when the ST1 and ST2 signals are turned ON. An operation example of the speed control mode is shown below.
  • Page 86 LECSB 2-T Speed Command Parameter Setting ( Note ) Input device Speed command Analog speed command (VC) Initial Internal speed command 1 ( parameter No. PC05) Internal speed command 2 ( parameter No. PC06) Internal speed command 3 ( parameter No. PC07) Internal speed command 4 ( parameter No.
  • Page 87 7.3 Torque Control Mode Control servo motor output torque. It also has a speed limit function. LECSB2-T can perform analog torque commands. 7.3.1 Operating Instruction The servo motor rotates when the RS1 and RS2 signals are turned ON. An operation example of the torque control mode is shown below. Torque control Torque command and torque The relationship between the applied voltage of TC (Analog torque command) and the torque of the servo...
  • Page 88 7.4 Positioning Mode (Point Table) Positioning operation is executed simply by setting the position data, rotation speed, acceleration/deceleration time constant, etc. in the point table. (A maximum of 255-point tables can be used.) For the positioning mode (Point table) operation, refer to "LECS B2-T □ Operation Manual, section 16.4". 7.4.1 Operating Instruction of Point Table Select each point table number with DI0 ~ DI7 and start operation with ST1 or ST2.
  • Page 89 When parameter "PT01: Command mode selection" is "0000: Absolute value command method". *In positioning operation, if the command is position data (target position)≠0 and rotation speed = 0, the positioning operation command will not be accepted. In that case, clear the command remaining distance by turning MD0 (operation mode selection 1) from OFF to ON.
  • Page 90 7.5 Positioning Mode (Programimg Method) Position data, rotation speed, acceleration/deceleration time constant, etc. are created as a program, and the positioning operation is executed by executing the program. (A maximum of 256 programs with a total of 640 steps can be created.) Setup software (MR Configurator2 : LEC-MRC2*) is always required to set program data in the programming method.
  • Page 91 7.5.2 Commands in Program Method An example of program commands is shown below. For other program commands, refer to "LECSB2-T □ Operation Manual, section 16.11.2 ". The maximum number of steps in a program is 640. Up to 256 programs can be created, but the total number of steps for each program is limited to 640.
  • Page 92 7.5.3 Program-based Operation Instruction Method Select DI0 (program number selection 1) ~ DI 7 (program number selection 8) and start operation with ST1. Control mode Connector Function and use Device name Symbol Class number In case of program method Program Select the program number using DI0 ~ DI7.
  • Page 93 7.6 Positioning Mode (Pushing Operation) Pushing operation is to generate pushing torque in the direction from "pushing start position" to "pushing limit position" within the pushing range (between "pushing start position" and "pushing limit position"). Point table method pushing operation can be selected from positioning operation or pushing operation with the auxiliary function of point table data.
  • Page 94 7.6.2 Point Table-based Operation Instruction Method When using Point table method pushing operation, set each value of the point table using the setup software (MR Configurator2 ) or the operation panel. An example in which the pushing operation is divided into the following 3 steps will be explained. <STEP1>...
  • Page 95 Allocate a point table for each step. Point Position data/ Servo motor speed/ Acceleration Deceleration Dwell Auxiliary M-code Pushing torque table Pushing limit speed limit value time constant time constant [ms] function [0.1%] number position [r/min] [ms] [ms] [10^stm μm] STEP1 8.00 3000...
  • Page 96 7.6.4 Point Table Data List Item Setting range Unit Content Set the target address (Absolute value). ×10 µm Position data/ -999999 ~ This value can also be set using the teaching function. (STM-4 ) ×10 inch 999999 (Note1) Pushing limit position When the pushing operation is selected with the auxiliary function "...
  • Page 97 Set Pushing torque ([0.1%] unit). This setting is valid when the pushing operation is selected with the auxiliary function " 16 " or " 18". Pushing torque 0 ~ 1000 0.1% Set as maximum torque = 1000 (in unit of [0.1%]). "...
  • Page 98 8. Troubleshooting 8.1 Alarm and Warning Point ● As soon as an alarm occurs, turn off the servo-on (SON) and shut off the main circuit power supply. Displays alarms and warnings when an abnormality occurs during operation. If an alarm or warning occurs, take appropriate measures according to "LECSB2-T □...
  • Page 99 Revision history 4-14-1, Sotokanda, Chiyoda-ku, Tokyo 101-0021 JAPAN Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. © 2023 SMC Corporation All Rights Reserved - 98 -...
