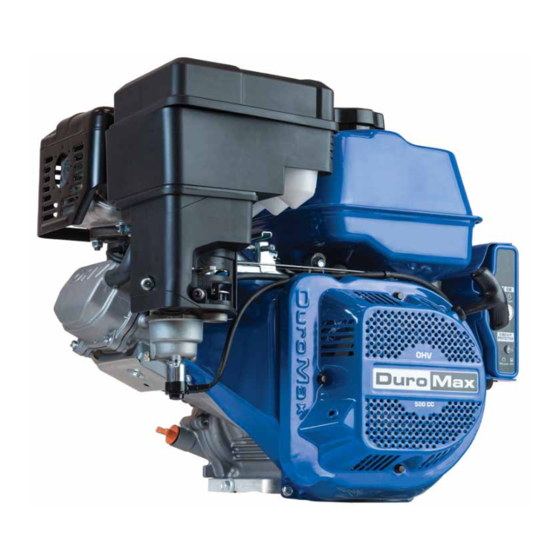

XP20HPE
S
E
R
V
I
C
E
M
A
N
U A
L
REV: XP20HPE_rev12152022
5800 Ontario Mills Pkwy
This manual provides information regarding the
Ontario, CA 91764 USA
operation and maintenance of these products. We
www.duromaxpower.com
have made every effort to ensure the accuracy of the
Call our Customer Care Team Toll Free 8-5pm PST Mon-Fri
information in this manual. We reserve the right to
844-DUROMAX
change this product at any time without prior notice.
Advertisement
Table of Contents
Related Manuals for DUROMAX XP20HPE
Summary of Contents for DUROMAX XP20HPE
- Page 1 XP20HPE REV: XP20HPE_rev12152022 5800 Ontario Mills Pkwy This manual provides information regarding the Ontario, CA 91764 USA operation and maintenance of these products. We www.duromaxpower.com have made every effort to ensure the accuracy of the Call our Customer Care Team Toll Free 8-5pm PST Mon-Fri information in this manual.
-
Page 3: Table Of Contents
CONTENTS Maintenance and Care Maintenance Schedule ....................4 Break-In Period ....................... 5 High Altitude Operation ....................5 Checking the Oil ......................6 Changing the Oil ......................7 Changing the Air Filter ....................8 Spark Plug Maintenance ....................10 Emptying the Gas Tank ....................12 Storing the Engine for Same Day Use ................ -
Page 4: Maintenance And Care
MAINTENANCE AND CARE Proper routine maintenance of your engine is essential for safe, economical, and trouble-free operation. It will also help reduce air pollution. WARNING: Improper maintenance, or failure to correct a problem before operation, can cause a malfunction in which you can be seriously injured or killed. Always follow the inspection, maintenance recommendations, and schedules in this instruction manual. -
Page 5: Break-In Period
Operation at altitudes below 3,000 feet (900 meters) with a modified carburetor may cause the engine to overheat and result in serious engine damage. Note: Jet kits available for purchase upon request, please contact us at 844-DUROMAX to set up your parts order. -
Page 6: Checking The Oil
(see “Adding Oil” portion of the “Maintenance” section). The oil will be visible in the oil fill spout when full. Be sure to replace the cap when finished checking oil. Model Number XP20HPE Engine Oil Capacity 40.5 fl. oz (1.2 L) -
Page 7: Changing The Oil
Changing the Oil CAUTION: Worn out or dirty oil does not cool the engine properly and can lead to catastrophic engine damage. In addition to regular oil changes, it is necessary to drain the oil from the crankcase if it has become contaminated with water or dirt. -
Page 8: Changing The Air Filter
Remove old filter element Remove the wing nut on top of the air filter element and slide filter element off center bolt. This filter is paper and is not reusable. Please call 1-844-DUROMAX to order a replacement filter for your engine. - Page 9 Replace new filter element Slide new filter element over center bolt, and replace wing nut. Tighten wing nut hand tight to keep filter in place. Replace filter cover Replace plastic air filter cover over the air filter base. Secure filter cover Fasten the air filter cover with the air filter cover wing nut and tighten about hand tight.
-
Page 10: Spark Plug Maintenance
MAINTENANCE AND CARE (CONTINUED) Spark Plug Maintenance The spark plug is important for proper engine operation. SPARK PLUG A good spark plug should be intact, free of deposits, and CONSULT MANUAL properly gapped. BEFORE REMOVING CAUTION: Improper maintenance may cause reduced fuel economy, misfires, trouble starting, or damage to the spark plug threads. - Page 11 Measure plug gap Measure the plug gap with a gauge. The gap should be 0.7-0.8 mm (0.028-0.031 in). Clean and re-gap If you are re-using the spark plug, use a wire brush to clean any dirt from around the spark plug base and then re-gap the spark plug.
-
Page 12: Emptying The Gas Tank
MAINTENANCE AND CARE (CONTINUED) Emptying the Gas Tank If you have been using gasoline in your engine, before storing your engine for extended periods of time you should drain your engine fuel tank of gasoline. CAUTION: Do not store fuel from one season to another. - Page 13 Turn fuel valve ON and drain Turn the fuel valve to “ON” and allow gasoline to drain into the container until the gas tank is empty. Shut fuel valve OFF Once the gasoline is fully drained, move the fuel valve back to the “OFF”...
-
Page 14: Storing The Engine For Same Day Use
MAINTENANCE AND CARE (CONTINUED) Storing the Engine for Same Day Use Run the engine Allow the engine to run for 3-5 minutes. Turn key switch to OFF Move the key switch to the “OFF” position to shut the engine off. Store engine After the engine shuts off and cools, then you can store the engine. -
Page 15: Storing The Engine For Use Within 30 Days
Storing the Engine for Use Within 30 Days Run the engine Allow the engine to run for 3-5 minutes. Shut fuel valve OFF and run dry Shut the fuel valve “OFF” and allow engine to run until it stalls out. Turn the key switch OFF Move the key switch to the “OFF”... -
Page 16: Storing The Engine For Longer Than 30 Days
MAINTENANCE AND CARE (CONTINUED) Storing the Engine for Longer Than 30 Days Run the engine Allow the engine to run for 3-5 minutes. Shut fuel valve OFF and run dry Shut the fuel valve “OFF” and allow engine to run until it stalls out. - Page 17 Remove spark plug Remove spark plug as shown in “Spark Plug Maintenance” on page 10. Add oil to cylinder Add 2 tablespoons of 10W-30 motor oil directly into the spark plug hole, and pull the recoil to lubricate cylinder. After lubricating cylinder reinstall the spark plug as shown in “Spark Plug Maintenance”...
-
Page 18: Common Engine Parts
COMMON ENGINE PARTS Common Engine Parts 1. Crankcase 11310-Z0D0710-0BA0 2. Oil Drain Bolt 11007-Z080110-00A0 3. Starting Motor 09100-Z170510-00A0 4. Oil Protector 37050-Z010210-0000 5. Oil Seal 90682-Z0J0110-00A0 6. Crankcase Cover 11411-Z0D0510-0BA0 7. Crankshaft Bearing 90547-0208-CLAE 8. Bearing 90548-0202-CLA0 9. Oil Fill Cap/Dipstick 15010-Z080130-Q500 10. - Page 19 11. Valve Cover 12410-Z0D0210-0BA0 12. Breather Tube 17004-Z0D0410-00A0 13. Valve Cover Gasket 12004-Z0D0211-00A0 14. Muffler/Cylinder Head Gasket 18101-Z0D0110-00A0 15. Spark Plug 30010-Z010210-00A0 16. Cylinder Head Gasket 12131-Z0D0310-00A0 17. Crankshaft Assembly 13300-Z0D0210-CLTM 18. Piston Rings 13200-Z0D0110-00A9 19. Pin Clip 13122-Z100110-00A0 20. Piston 13111-Z0D0211-00A0 21.
- Page 20 COMMON ENGINE PARTS (CONTINUED) 23. Ignition Coil Assembly 30400-Z190210-0000 24. Charging Coil Assembly 30140-Z160130-0000 25. Camshaft Assembly 14200-Z0D0410-00A0 26. Recoil Assembly 28200-Z710110-BG00 27. Spacer/Cylinder Gasket 17002-Z0D0210-00A0 28. Carburetor Spacer 16003-Z0D0210-00A0 29. Spacer/Carburetor Gasket 16001-Z100110-00A0 30. Carburetor Assembly 16100-Z0D1210-00M0 31. Carburetor/Air Filter Gasket 17001-Z0D0110-00A0 32.
- Page 21 33. Muffler Gasket 18101-Z0D0210-00A0 34. Manifold 18150-Z0D0610-00A0 35. Muffler/Cylinder Head Gasket 18101-Z0D0110-00A0 36. Governor Spring 16063-Z0D0510-00A0 37. Throttle Return Spring 16012-Z0D0110-00A0 38. Muffler Assembly 18100-Z0D0110-00A0 39. Key Switch Assembly 35000-Z160610-BG00 40. Positive Battery Cable 31114HY5R0110-0000 41. Negative Battery Cable 31112HY130410-0000 42.
- Page 22 45. Air Filter Element 17150-Z710110-00A0 46. Air Filter Assembly 17100-Z0D0510-00A0...
-
Page 23: Specifications
SPECIFICATIONS Displacement 500cc Fuel Type ≥87 octane, ≤10% ethanol, unleaded gasoline Dry Weight 83 lbs Maximum Torque 22.87 ft. lb @ 2500 rpm Compression Ratio 8.5:1 Bore X Stroke 94 mm x 72 mm Engine Oil Capacity 40.5 oz. (1.2 L) Fuel Tank Capacity 1.35 gal. -
Page 24: Adjustment And Torque Value Specifications
SPECIFICATIONS (CONTINUED) Adjustment and Torque Value Specifications Adjustment Specification Spark Plug Clearance .027-.031 in. (0.7-0.8 mm) Spark Plug Type F6TC (Torch), BP6ES (NGK), RN9YC (Champion), W7DC (Bosch), W20EP-U (Denso) Valve Clearance (Cold) Intake: .00295 in ± .00098 in (0.075 mm ± 0.025 mm) Exhaust: .00295 in ±... -
Page 25: Engine Diagrams
Engine Diagrams 4×3/8-16UNC-2B 6×5/16-24UNF-2B 71.5 71.5 44.8 44.8 Ø146 -0.0063 (Ø165.2) (Ø126.5) 44.6 44.6 2×C2.5 Ø18 58.4 58.4 25° R8.7... - Page 26 SPECIFICATIONS (CONTINUED) 89.8 mm R12.7 +0.05 R0.16~R.25 60° 1.5 mm Ø25.4- 6 mm 0.025 28 mm 32 mm 56 mm 72.2 mm 125° 4×R13.5 4×R7 18.5 110° 70° 98.2 2×R6 2×M6-6H 2×Ø7 2×Ø12 15° 136.5 144.5 149.5 2×Ø23...
-
Page 27: Wiring Diagram
Wiring Diagram 1. Control Box 8. Oil Level Switch Black Yellow 2. Rectifier 9. Charging Coil Gray 3. Fuse 10. Ignition Coil 4. Circuit Breaker 11. Spark Plug White 5. Engine Switch 12. Starter Motor Bl/W Black/White 6. Oil Alert Unit 13. -
Page 28: Troubleshooting
TROUBLESHOOTING Mode Description Solution Engine switch is “OFF” Set engine switch to “ON” Fuel valve is “OFF” Turn fuel valve to “ON” Choke is open Close the choke Engine is out of fuel Add fuel Engine will not start Fuel is old or contaminated Change fuel Spark plug is dirty Clean spark plug... -
Page 29: Maintenance Log
MAINTENANCE LOG Maintenance Log As a best practice it’s recommended to keep a log of the engine hours and maintenance to ensure your engine is always operating to its full potential. Date Engine Hours Maintenance Performed... - Page 30 MAINTENANCE LOG (CONTINUED) Date Engine Hours Maintenance Performed...
- Page 31 Date Engine Hours Maintenance Performed...
- Page 32 MAINTENANCE LOG (CONTINUED) Date Engine Hours Maintenance Performed...
- Page 33 Date Engine Hours Maintenance Performed...
- Page 34 5800 Ontario Mills Parkway Ontario, CA 91764 United States 844-DUROMAX REV: XP20HPE_rev12012022...
