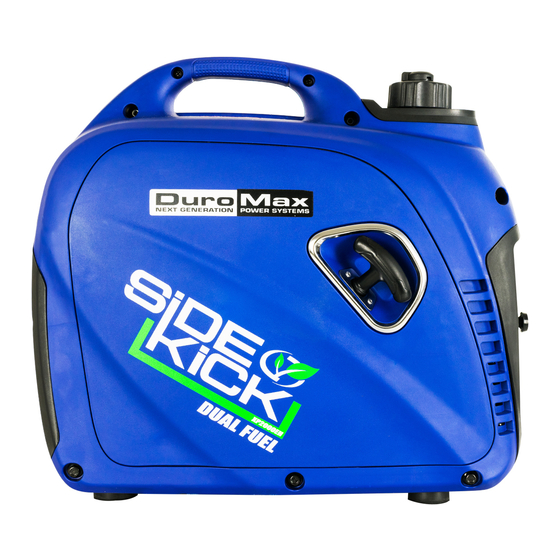

- Page 1 Model:XP2000EH Inverter Gasoline Propane Hybrid OPERATOR’S MANUAL support@duromaxpowerequipment.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ....................................3 Parts Ordering / Customer Service..........................3 Safety Rules .....................................4 Safety Symbols ................................4 Safety Instructions ...............................4 Features ....................................7 Control Panel Functions .................................8 ON/OFF Start Switch and Choke..........................8 Indicator Lights................................8 Engine Economy Control ............................9 Parallel Outlets................................9 Fuel Cap Air Vent...............................10 Ground Terminal.................................10 Assembly ....................................11 Connecting Generator to an Electrical System......................11... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing this superior quality portable generator from DUROMAX . When operating and maintaining this product as instructed in this manual, your generator will give you many years of reliable service. This generator is an engine-driven, portable generator.It is designed to supply electrical power to operate tools, appliances, camping equipment, lighting, or serve as a back up power source during power outages. -
Page 4: Safety Rules
SAFETY RULES Safety Symbols Indicates a potentially hazardous WARNING! situation which could result in serious injury or death if not avoided. Indicates a potentially hazardous CAUTION! situation which could result in damage to equipment or property. Toxic Fumes Risk of explosion Risk of electric shock Hot surface Safety Instructions... - Page 5 SAFETY RULES Never exceed generators wattage / amperage capacity. This could damage the generator WARNING! and / or connected electrical devices. • Check operating voltage and frequency requirements of all electrical devices prior to plugging them into the generator. Never start or stop engine with electrical devices plugged in to the receptacles. Failure to WARNING! do so could damage the generator and / or connected electrical devices.
- Page 6 SAFETY RULES This generator produces a very high voltage which could result in burn or WARNING! electrocution causing serious injury or death. • Never handle the generator, electronic devices, or any cord while standing in water, while barefoot, or when hands or feet are wet.
-
Page 7: Features
FEATURES Spark Plug Cover Spark Arrestor Muffler Cover Outer Casing (Side Panel) Handle (Grip) Air Vent Fuel Cap Recoil Starter Power Panel Oil Warning Light Overload Indicator Light AC Pilot Light Choke Engine Switch Economy Switch Ground Terminal Parallel Outlets 120V 13.3A Recepticles Propane Inlet Fuel Select... -
Page 8: Control Panel Functions
CONTROL PANEL FUNCTIONS Fuel Selector Switch When the Switch is in the Gas position and the Gasoline "On" the generator is ready to start on Gasoline. When the Switch is in the LPG position and the Gasoline is "Off" the generator is ready to start on Gasoline. -
Page 9: Engine Economy Control
CONTROL PANEL FUNCTIONS Note: The engine overload indicator light may turn on for a few seconds when attaching a load due to a power surge. This is normal. AC Pilot Indicator Light The green AC Pilot Indicator Light comes on when the engine starts and generates power. Oil Warning Overload AC Pilot... -
Page 10: Parallel Outlets
CONTROL PANEL FUNCTIONS Parallel Outlets Located just above the Ground Terminal, the generator’s Parallel Outlets enable a user to run two XP2000EH generator’s simultaneously. This operation requires special cables. When operating parallel generators, the rated output is 3.0kVA and the rated current is 25A/120VAC. For cables and instructions consult a DuroMax dealer for a PARALLEL OPERATION C C C A A A B B B L L L E E E K K K I I I T T T . -
Page 11: Assembly
ASSEMBLY Connecting Generator to an Electrical System • If connecting generator to a building’s electrical system for standby power, The power from the generator must be isolated from the circuit breaker or alternative power source. The connection must comply with all electrical codes and applicable laws. -
Page 12: Adding / Checking Oil
ASSEMBLY Adding / Check ing Engine O il • Place generator on a level surface. • Remove screws and then remove the outer casing cover. • Remove the crankcase dipstick. • Insert a funnel into the crankcase dipstick hole and carefully add the specified amount of 4-Cycle engine oil (SAE 10W- 30) to empty reservoir until or oil reaches the outer edge of the oil fill hole (crankcase dipstick hole). -
Page 13: Operation
OPERATION Grounding the Generator To avoid electrocution, this generator must be properly grounded prior to use. For instructions see Control Panel Functions pg. 10. How to Start Engine on Gasoline Place generator on a level surface. All electrical loads MUST be disconnected from generator. •... -
Page 14: How To Stop Engine
OPERATION How to Stop Engine • Turn the Economy switch to the “OFF” position. • Disconnect any electronic device. All loads MUST be disconnect from the generator. Never start or stop the engine with electrical devices plugged in to the receptacles. •... -
Page 15: Ac Parallel Operation
OPERATION AC Parallel Operation It is possible to connect two XP2000iS or XP2000EH generators to each other, using a parallel cable kit, to increase available power output. • Connect PARALLEL OPERATION CABLES to two XP2000iS generators according to the instructions provided with the cable kit. -
Page 16: Don't Overload Generator
OPERATION Don’t Overload Generator Make sure you can supply enough rated watts for all electronic devices connected to the generator. Rated watts refer to the power a generator must supply to keep a device running. Surge watts refer to the power a generator must supply to start an electronic device. -
Page 17: Maintenance
Disconnect the spark plug wire and move it away from the spark plug. If you are unsure of how to perform a maintenance task, have the unit serviced by a CAUTION! DuroMax dealer. Only use specified DuroMax replacement parts. CAUTION! Maintenance Schedule Pre-Operation Steps Before starting the engine, perform the following pre-operation steps: •... -
Page 18: Checking Spark Plug
MAINTENANCE Checking Spark Plug • Remove cap. Then remove spark plug cap. • Disconnect the spark plug wire from the spark plug. • Before removing the spark plug, clean the area around its base to prevent debris from entering the engine. •... -
Page 19: Changing Oil
MAINTENANCE Changing Oil • Place generator on a level surface. • Run the generator for several minutes until the engine is warm. Turn off generator. • Remove screws, then remove outer casing side cover. • Remove the crankcase dipstick. • Place an oil pan underneath the engine. -
Page 20: How To Clean Air Filter
Check the muffler screen and spark for carbon deposits. Remove carbon deposits with a wire brush. • Check the muffler screen and spark for damage.If damaged replace with DuroMax replacement parts • Install the spark. Align the spark projection with the hole in the muffler pipe. -
Page 21: How To Clean Fuel Filter
MAINTENANCE Fuel Tank Filter • • • • • Install fuel cap. Fuel Filter • To clean, remove screws, remove outer casing, and drain fuel. • Lift and hold onto the clamp, then remove hose from tank. • • • •... - Page 22 MAINTENANCE Contact with a hot engine or exhaust system can cause serious burns or fires. Let the engine cool WARNING! before transporting or storing the generator. Take care not to drop or strike the generator when transporting. Do not place heavy objects on the CAUTION! generator.
-
Page 23: Troubleshooting
8. Turn off choke 9. Low oil level 9. Add oil level. 10. Wait 5 minutes and recrank engine 11. Faulty ignition 11. Contact DuroMax dealer Engine lacks power 1. Generator is overloaded 1. See pg 17 “Don’t overload generator”... -
Page 24: Specification
DIAGRAMS Model No. XP2000EH Type Inverter Rated Frequency 60Hz Rated Voltage 120V Maximum Output Power 2.0kW Rated Output Power 1.6kW Power Factor Generator AC Output Quality ISO8528 G1 THD% ≤5 DC Output 12V/8A 5V USB 1.5A Non-Fuse Protector Overload Frequency Regulator Overload... - Page 25 WIRING DIAGRAM...
- Page 26 WIRING DIAGRAM...
-
Page 27: Warranty
DuroMax items (including, but not limited to generators, gas engines, and water pumps) carry a 1-year limited parts warranty. If, under the course of normal, non-commercial use, the DuroMax item fails within 1 year from the date of purchase, as a result of faulty materials or workmanship, Max Tool will provide necessary replacement or repair parts at no charge for the parts. - Page 28 DuroMax Power Equipment 5798 Ontario Mills Pkwy Ontario, CA 91764 800-629-4329...
