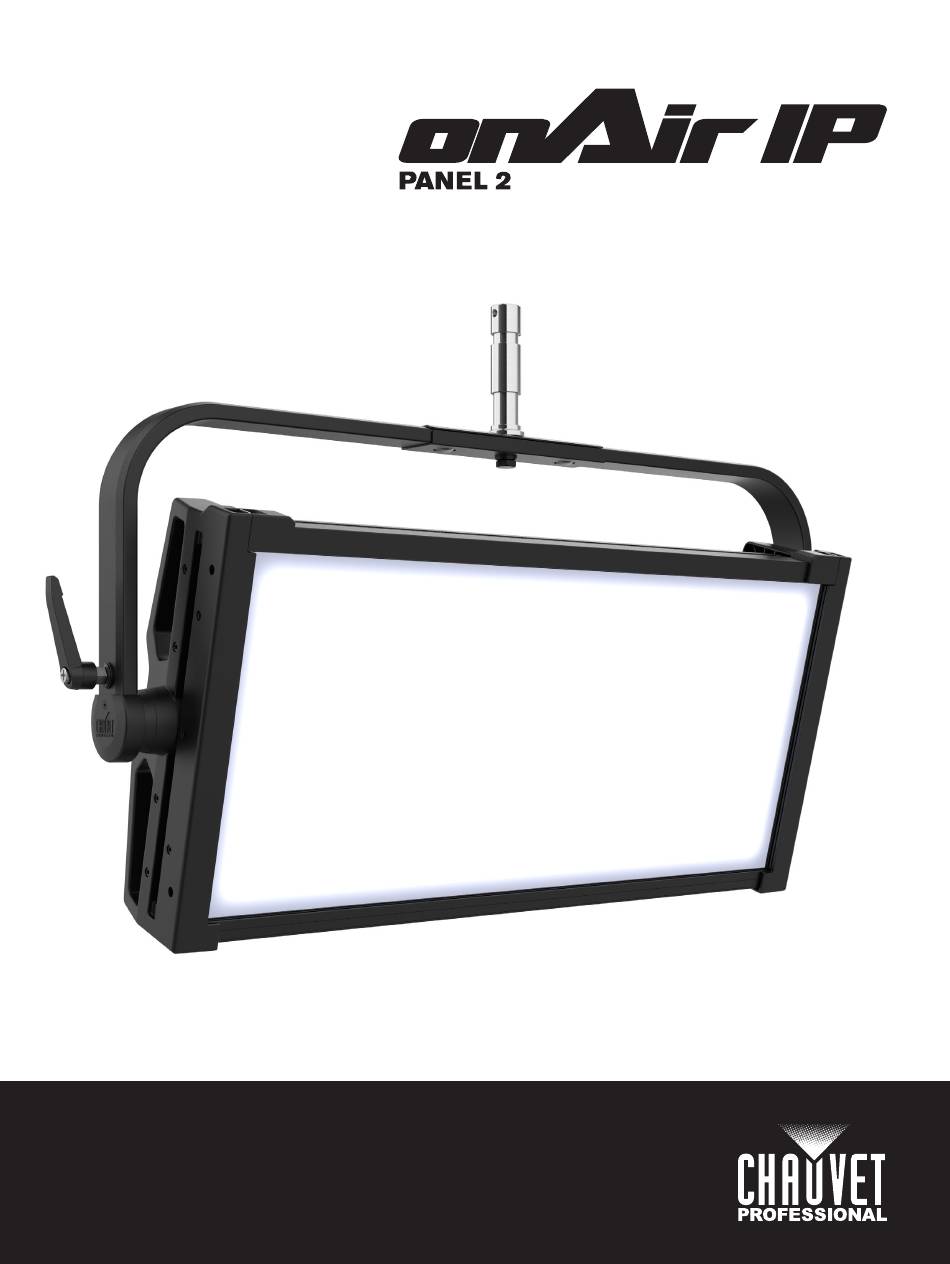

- Page 1 User Manual Model ID: ONAIRPANEL2IP...
- Page 2 Edition Notes The onAir IP Panel 2 User Manual includes a description, safety precautions, installation, programming, operation, and maintenance instructions for the onAir IP Panel 2 as of the release date of this edition. Trademarks Chauvet, the Chauvet logo, and onAir are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries.
-
Page 3: Table Of Contents
Configuration ......................Product Pairing ......................Accessory Slots..................... Mounting ....................... Orientation......................Rigging ....................... Procedure......................4. Operation..................... Control Panel Description ................Control Options ..................... Programming....................Menu Map ..................... Home Screen ....................Example Home Screens ..................onAir IP Panel 2 User Manual Rev. 3... - Page 4 Wireless to DMX ...................... 23 Display Backlight....................Information ......................Factory Reset..................... Web Server ....................Home........................Settings ......................Output ........................ Security ......................5. Maintenance..................Product Maintenance ..................6. Technical Specifications..............Contact Us....................Warranty & Returns..................onAir IP Panel 2 User Manual Rev. 3...
-
Page 5: Before You Begin
Any reference to data or power connections in this manual assumes the use of Seetronic IP-rated cables. The term “DMX” used throughout this manual refers to the USITT DMX512-A digital data transmission protocol. onAir IP Panel 2 User Manual Rev. 3... -
Page 6: Safety Notes
• In the event of a serious operating problem, stop using immediately. If a Chauvet product requires service, contact Chauvet Technical Support. onAir IP Panel 2 User Manual Rev. 3... -
Page 7: Fcc Statement Of Compliance
LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. onAir IP Panel 2 User Manual Rev. 3... -
Page 8: Introduction

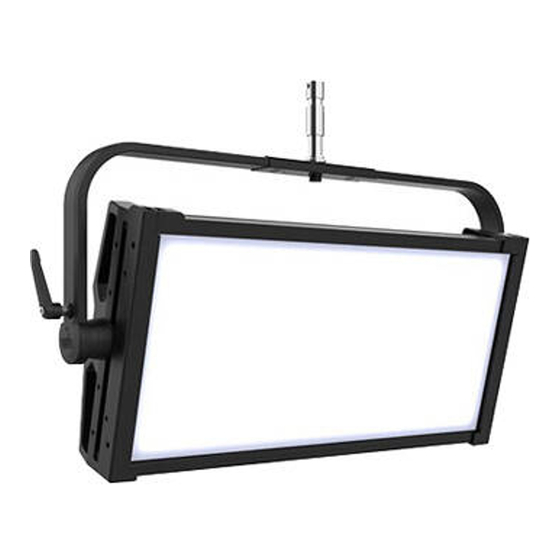

2. Introduction Description The onAir IP Panel 2 is an IP65 full-spectrum LED soft light with a 1x2 format for outdoor or indoor operation. Ready for any broadcast setting, the onAir IP Panel 2 features high CRI/ TLC and TM-30 scores, a smooth 16-bit dimming curve, +/- green adjustment, an emulated redshift, built-in customizable effects, and a drop-in slot for easy changing of accessories. -
Page 9: Product Dimensions
27.6 in 701 mm 11.81 in 300 mm 25.39 in 645 mm 1.1 in 28 mm 21.6 in 553 mm 13.97 in 17.05 in 433.1 mm 355 mm 5.4 in 139 mm onAir IP Panel 2 User Manual Rev. 3... -
Page 10: Setup
Never exceed 12A on a single circuit. Power-linking cables can be purchased separately. DC Power The onAir IP Panel 2 has a 3-pin IP65 XLR power input that can work with an input voltage of 28 VDC, which is SELV voltage supplied by short-circuit-proof power supply. -
Page 11: Usb Software Update
Setup USB Software Update The onAir IP Panel 2 allows for software updates with a USB device using the built-in USB port. To update the software using a USB flash drive, do the following: 1. Power on the product, and plug the flash drive into the USB port. -
Page 12: Signal Connections
DMX controller, download the DMX Primer from the Chauvet website: www.chauvetprofessional.com. DMX Linking The onAir IP Panel 2 can be linked to a DMX controller using a 5-pin DMX connection or a CRMX™ connection. For more information about DMX, read the DMX primer at: https:// www.chauvetprofessional.com/wp-content/uploads/2016/06/DMX_Primer.pdf. -
Page 13: Lumenradio Crmx™ Connection
If the onAir IP Panel 2 has already been paired with the CRMX™ transmitter, the Signal Strength Indicator on top of the display will show the strength of the signal. In this case, the onAir IP Panel 2 is ready to work in Wireless mode. -
Page 14: Mounting
Only loosen or tighten the bracket knobs manually. Using tools could damage the knobs. Procedure The onAir IP Panel 2 comes with an omega bracket and a junior pin. Mounting clamps are sold separately. Make sure the clamps are capable of supporting the weight of this product. Use at least two mounting points per product. -
Page 15: Operation
Selects a preset. Hold for 3 seconds to save the current look to the selected B preset. <5000K/B5> <5600K/B6> <6000K/B7> <6500K/B8> Control Options The onAir IP Panel 2 has 9 options for control: • Wired DMX Via 5-pin DMX port • Wireless Lumenradio CRMX™ With the option to convert wireless input to wired DMX output •... -
Page 16: Menu Map
Operation Menu Map Refer to the onAir IP Panel 2 product page on www.chauvetprofessional.com for the latest menu map. Main Menu Programming Levels Description DMX512 Protocol Artnet Sets the control protocol sACN Selects DMX address (*Highest 001–512* channel restricted to personality... - Page 17 Sets maximum red LED value Green Sets maximum green LED value Color User <125–255> Calibration Calibration Blue Sets maximum blue LED value White Sets maximum white LED value Factory Calibration Color calibration set by factory onAir IP Panel 2 User Manual Rev. 3...
- Page 18 The “Other Fixture Type” option under Upgrade Firmware can only be selected for connected products compatible with the Upload 03 (the first 2 digits of the item code must be 03). onAir IP Panel 2 User Manual Rev. 3...
-
Page 19: Home Screen
Home Screen The home screen of the onAir IP Panel 2 shows the current settings and status of the product. To see the home screen, press and hold <MENU> until it shows on the display. From the home screen, press <MENU>... -
Page 20: Control Configuration
Use control configurations to operate the product with a DMX, Art-Net™, or sACN controller. Control Mode The onAir IP Panel 2 works with wired DMX, CRMX™, Art-Net™, and sACN control signals. To select which protocol to use: 1. Go to the Protocol main level. -
Page 21: Ethernet Setting
The Ethernet Settings control the universe, start address (Art-Net™ or sACN), IP address, and ethernet conversion functions of the product. Universe To assign an Art-Net™ or sACN universe to the onAir IP Panel 2: 1. Go to the Ethernet Setting main level. 2. Select the Universe option. -
Page 22: Control Channel Assignments And Values
212 240 Lightning 241 255 No function – – – Effect macro speed 000 255 Speed, slow to fast – – – Control 000 255 See the Control Chart onAir IP Panel 2 User Manual Rev. 3... -
Page 23: 15Ch / 11Ch / 8Ch / 6Ch / 5Ch / 4Ch / 3Ch / 1Ch
183 211 Paparazzi 212 240 Lightning 241 255 No function – Effect macro speed1 000 255 Speed, slow to fast – Control 000 255 See the Control Chart onAir IP Panel 2 User Manual Rev. 3... -
Page 24: Control Chart
097 103 4100K 223 229 6500K 104 110 4200K 230 236 7000K 111 117 4300K 237 243 7500K 118 124 4400K 244 255 8000K onAir IP Panel 2 User Manual Rev. 3... -
Page 25: Standalone Configuration
Operation Standalone Configuration In a standalone mode, the onAir IP Panel 2 can be controlled through the display menu, the control knobs, and/or the preset buttons. CCT Control In CCT Control mode, the control knobs have the following functions: •... -
Page 26: Settings Configuration
1. Go to the Red Shift main level. 2. Select from On or Off. Master/Slave To set the onAir IP Panel 2 product to master or slave mode: 1. Go to the Master/Slave main level. 2. Select from Master (sends control signal) or Slave (receives control signal). -
Page 27: Wireless Lumenradio Crmx™ Settings
3. Select from No (do not reset) or Yes (reset). Wireless to DMX The onAir IP Panel 2 can convert wireless CRMX™ to wired DMX output. To enable or disable this function: 1. Go to the Wireless Setting main level. -
Page 28: Web Server
Operation Web Server The onAir IP Panel 2 Web Server can be accessed by any computer on the same network as the product. It allows network access to system information, settings such as control protocol and starting address, color output testing, and the ability to change the Web Server password. -
Page 29: Maintenance
7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fan with compressed air. Damage may result. Page 25 of 27 onAir IP Panel 2 User Manual Rev. 3... -
Page 30: Technical Specifications
1, 3, 4, 5, 6, 8, 10, 11, 15, 16, 18, 23, or 32 Ordering Product Name Item Name Item Code UPC Number onAir IP Panel 2 ONAIRPANEL2IP 031301718 781462220662 UL 1573 CSA C22.2 No. 166 E113093 Page 26 of 27 onAir IP Panel 2 User Manual Rev. 3... -
Page 31: Contact Us
For warranty terms and conditions and return information, please visit our website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. onAir IP Panel 2 User Manual Rev. 3...
