User Manual
Model ID: ONAIRIPPANEL2

Advertisement

Table of Contents
loading

Related Manuals for Chauvet Professional onAir IP Panel 2

Summary of Contents for Chauvet Professional onAir IP Panel 2

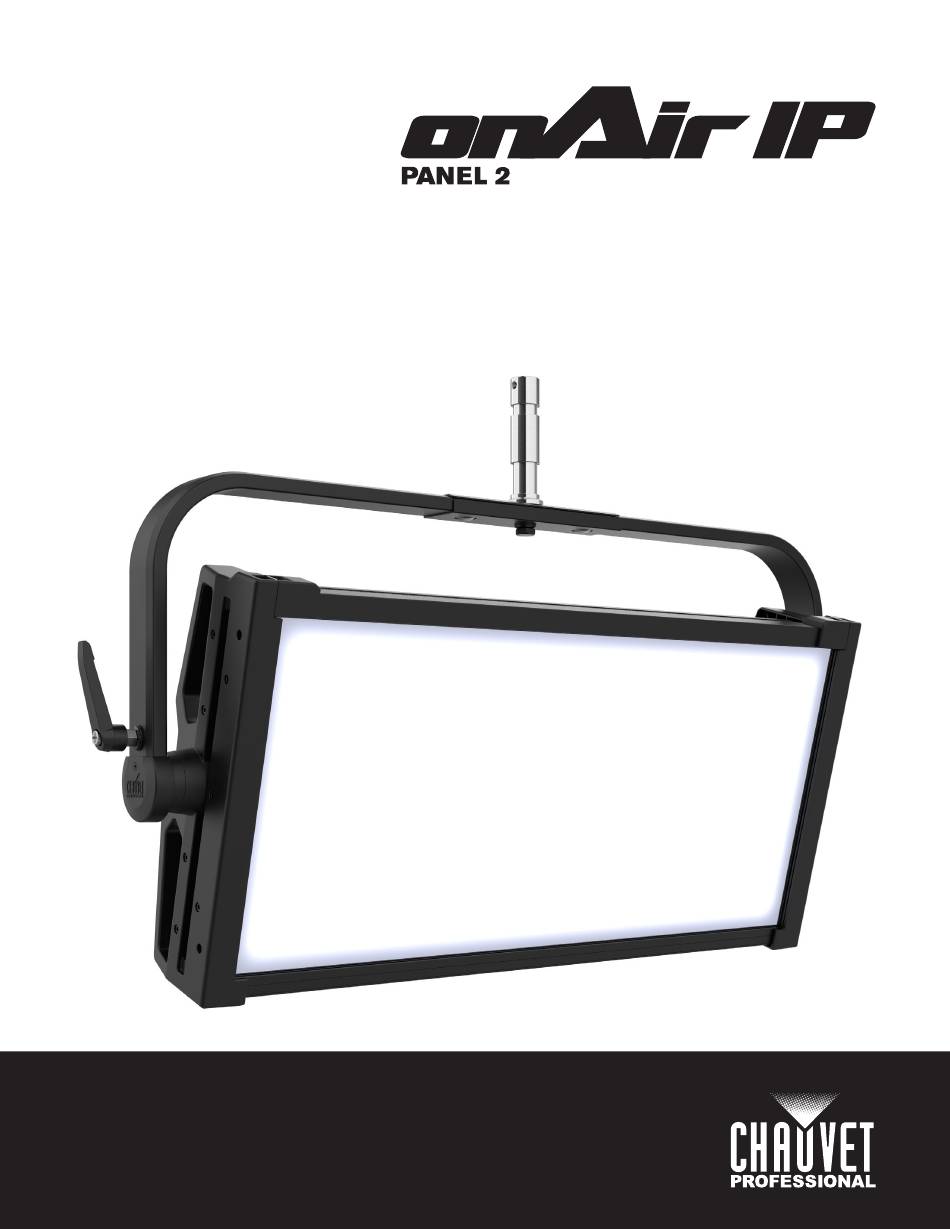

  • Page 1 User Manual Model ID: ONAIRIPPANEL2...
  • Page 2 Edition Notes The onAir IP Panel 2 User Manual includes a description, safety precautions, installation, programming, operation and maintenance instructions for the onAir IP Panel 2 as of the release date of this edition. Trademarks CHAUVET, the Chauvet logo and onAir IP Panel 2 are registered trademarks or trademarks of Chauvet &...

  • Page 3: Table Of Contents

    Procedure......................4. Operation ..................Control Panel Description ................Control Options ..................... Programming....................Menu Map ..................... Home Screen ....................Example Home Screens ..................Configuration (DMX, Art-Net™, sACN) ............Control Mode...................... Control Personalities ..................onAir IP Panel 2 User Manual Rev. 1...
  • Page 4 Wireless to DMX ...................... 23 Display Backlight....................Information ......................Factory Reset..................... Web Server ....................Home........................Settings ......................Output ........................ Security ......................5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Returns.................... Contact Us ..................onAir IP Panel 2 User Manual Rev. 1...

  • Page 5: Before You Begin

    This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. onAir IP Panel 2 User Manual Rev. 1 Page 1 of 28...

  • Page 6: Safety Notes

    The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity. Page 2 of 28 onAir IP Panel 2 User Manual Rev. 1...

  • Page 7: Introduction

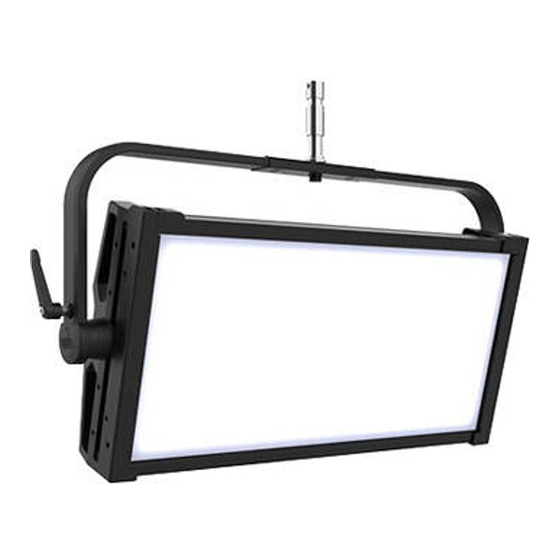

    2. Introduction Description The onAir IP Panel 2 is an IP65 full-spectrum LED soft light with a 1x2 format for outdoor or indoor operation. Ready for any broadcast setting, the onAir IP Panel 2 features high CRI/ TLC and TM-30 scores, a smooth 16-bit dimming curve, +/- green adjustment, an emulated redshift, built-in customizable effects, and a drop-in slot for easy changing of accessories.

  • Page 8: Product Dimensions

    11.81 in 300 mm 25.39 in 645 mm 1.1 in 28 mm 21.6 in 553 mm 17.05 in 13.97 in 355 mm 433.1 mm 5.4 in 139 mm Page 4 of 28 onAir IP Panel 2 User Manual Rev. 1...

  • Page 9: Setup

    This product comes with a power input cord. Power linking cables are available from Chauvet for purchase. DC Power The onAir IP Panel 2 has a 3-pin IP65 XLR power input that can work with an input voltage of 28 VDC. USB Software Update The onAir IP Panel 2 allows for software update through USB using the built-in USB port.

  • Page 10: Signal Connections

    DMX controller, download the DMX Primer from the Chauvet website: www.chauvetprofessional.com. DMX Linking You can link the onAir IP Panel 2 to a DMX controller using a 5-pin DMX connection or a CRMX™ connection. For more information about DMX, read the DMX primer at: https:// www.chauvetprofessional.com/wp-content/uploads/2016/06/DMX_Primer.pdf.

  • Page 11: Lumenradio Crmx™ Connection

    If the onAir IP Panel 2 has already been paired with the CRMX™ transmitter, the Signal Strength Indicator on top of the display will show the strength of the signal. In this case, the onAir IP Panel 2 is ready to work in Wireless mode.

  • Page 12: Mounting

    When rigging the product onto a truss, use a mounting clamp of appropriate weight capacity. Procedure The onAir IP Panel 2 comes with an omega bracket and a junior pin. Mounting clamps are sold separately. Make sure the clamps are capable of supporting the weight of this product. Use at least two mounting points per product.

  • Page 13: Operation

    Selects a preset. Hold for 3 seconds to save the current look to the selected B preset. <5000K/B5> <5600K/B6> <6000K/B7> <6500K/B8> Control Options The onAir IP Panel 2 has 9 options for control: • Wired DMX • Wireless Lumenradio CRMX™ • Art-Net™ (wired ethernet) •...

  • Page 14: Menu Map

    Operation Menu Map Refer to the onAir IP Panel 2 product page on www.chauvetprofessional.com for the latest menu map. Main Menu Programming Levels Description DMX512 Protocol Artnet Sets the control protocol sACN Selects DMX address (*Highest 001–512* channel restricted to personality...
  • Page 15 Sets maximum blue LED value White Sets maximum white LED value Factory Calibration Color calibration set by factory 600Hz 1200Hz 2000Hz Sets the Pulse Width Modulation Frequency frequency 4000Hz 6000Hz 25KHz onAir IP Panel 2 User Manual Rev. 1 Page 11 of 28...
  • Page 16 The “Other Fixture Type” option under Upgrade Firmware can only be selected for connected products compatible with the Upload 03 (the first 2 digits of the item code must be 03). Page 12 of 28 onAir IP Panel 2 User Manual Rev. 1...

  • Page 17: Home Screen

    Home Screen The home screen of the onAir IP Panel 2 shows the current settings and status of the product. To see the home screen, press and hold <MENU> until it shows on the display. From the home screen, press <MENU>...

  • Page 18: Configuration (Dmx, Art-Net™, Sacn)

    Use control configurations to operate the product with a DMX, Art-Net™, or sACN controller. Control Mode The onAir IP Panel 2 works with wired DMX, CRMX™, Art-Net™, and sACN control signals. To select which protocol to use: 1. Go to the Protocol main level.

  • Page 19: Ip Address

    000  255 0–100% Blue 4 000  255 0–100% Fine blue 4 000  255 0–100% White 4 000  255 0–100% Fine white 4 000  255 0–100% onAir IP Panel 2 User Manual Rev. 1 Page 15 of 28...

  • Page 20: 23Ch

    183  211 Paparazzi 212  240 Lightning 241  255 No function Effect macro speed 000  255 Speed, slow to fast Control 000  255 See the Control Chart Page 16 of 28 onAir IP Panel 2 User Manual Rev. 1...

  • Page 21: 18Ch

    000  255 0–100% Red 4 000  255 0–100% Green 4 000  255 0–100% Blue 4 000  255 0–100% White 4 000  255 0–100% onAir IP Panel 2 User Manual Rev. 1 Page 17 of 28...

  • Page 22: 15Ch

    183  211 Paparazzi 212  240 Lightning 241  255 No function Effect macro speed 000  255 Speed, slow to fast Control 000  255 See the Control Chart Page 18 of 28 onAir IP Panel 2 User Manual Rev. 1...

  • Page 23: 8Ch

    000  255 See the Color Temperature Chart 000  001 0 002  255 -25–+25 Channel Function Value Percent/Setting Dimmer 000  255 0–100% (color set through display menu) onAir IP Panel 2 User Manual Rev. 1 Page 19 of 28...

  • Page 24: Color Temperature Chart

    202  208 5600K 209  215 5700K 216  222 6000K 223  229 6500K 230  236 7000K 237  243 7500K 244  255 8000K Page 20 of 28 onAir IP Panel 2 User Manual Rev. 1...

  • Page 25: Control Chart

    120  127 Fan mode silent 128  255 Reserved for future use Configuration (Standalone) In a standalone mode, the onAir IP Panel 2 can be controlled through the display menu, the control knobs, and/or the preset buttons. CCT Control In CCT Control mode, the control knobs have the following functions: •...

  • Page 26: Preset Ccts

    Operation Preset CCTs To set the onAir IP Panel 2 to a preset correlated color temperature through the display menu: 1. Go to the Static main level. 2. Select the Preset CCTs option. 3. Select the preset correlated color temperature, from 2800K, 2900K, 3000K, 3100K, 3200K,...

  • Page 27: Color Calibration

    3. Select from No (do not reset) or Yes (reset). Wireless to DMX The onAir IP Panel 2 can convert wireless CRMX™ to wired DMX output. To enable or disable this function: 1. Go to the Wireless Setting main level.

  • Page 28: Web Server

    Operation Web Server The onAir IP Panel 2 Web Server can be accessed by any computer on the same network as the product. It allows network access to system information, settings such as control protocol and starting address, color output testing, and the ability to change the Web Server password.

  • Page 29: Maintenance

    7. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Do not spin the cooling fan with compressed air. Damage may result. onAir IP Panel 2 User Manual Rev. 1 Page 25 of 28...

  • Page 30: Technical Specifications

    1, 3, 4, 5, 6, 8, 11, 15, 16, 18, 23 or 32 Ordering Product Name Item Name Item Code UPC Number onAir IP Panel 2 ONAIRIPPANEL2 031301718 781462220662 UL 1573 CSA C22.2 No. 166 E113093 Page 26 of 28 onAir IP Panel 2 User Manual Rev. 1...

  • Page 31: Returns

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be your responsibility. FedEx packing or double-boxing are recommended. Chauvet reserves the right to use its own discretion to repair or replace returned product(s). onAir IP Panel 2 User Manual Rev. 1 Page 27 of 28...

  • Page 32: Contact Us

    Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Page 28 of 28 onAir IP Panel 2 User Manual Rev. 1...
