BEDIENUNGSANLEITUNG LED CLS-18 QCL RGB/WW 18x7W GEFAHR! Elektrischer Schlag durch Kurzschluss Seien Sie besonders vorsichtig beim Umgang mit gefährlicher Netzspannung. Bei dieser Spannung können Sie einen lebensgefährlichen elektrischen Schlag erhalten. Öffnen Sie das Gerät niemals und schützen Sie es vor Feuchtigkeit und Nässe.
SICHERHEITSHINWEISE WARNUNG! Lesen Sie aufmerksam die Sicherheitshinweise und benutzen Sie das Produkt nur wie in dieser Anleitung beschrieben, damit es nicht versehentlich zu Verletzungen oder Schäden kommt. Verwendungszweck • Bei diesem Gerät handelt es sich um einen LED-Scheinwerfer, mit dem sich dekorative Lichteffekte erzeugen lassen.
Page 5
Warnung vor Verbrennung und Brand • Der zulässige Umgebungstemperaturbereich (Ta) beträgt -5 bis +45 °C. Verwenden Sie das Gerät niemals außerhalb dieses Temperaturbereichs. • Die Gehäusetemperatur (Tc) kann im Betrieb bis zu 70°C betragen. Vermeiden Sie den Kontakt mit Personen oder Gegenständen. •...
INSTALLATION WARNUNG! Verletzungsgefahr durch Herabfallen Über Kopf installierte Geräte können beim Herabstürzen erhebliche Verletzungen verursachen! Stellen Sie sicher, dass das Gerät sicher installiert ist und nicht herunterfallen kann. Die Montage darf nur durch eine Fachkraft erfolgen, die mit den Gefahren und den einschlägigen Vorschriften hierfür vertraut ist.
DMX512-ANSTEUERUNG Für die Ansteuerung des Geräts per DMX512 ist eine Datenverbindung notwendig. Das Gerät verfügt dazu über 3- und 5-polige XLR-Anschlüsse. Verbinden Sie den Ausgang Ihres Controllers mit dem DMX-Eingang DMX IN des Gerätes über ein DMX-Kabel. Verbinden Sie den DMX-Ausgang DMX OUT des Geräts mit dem DMX-Eingang des nächsten Geräts in der Kette.
Das Gerät hat zwei Betriebsarten. Es kann entweder im Standalone-Modus über das Control Board und die EUROLITE IR-38 Fernbedienung oder im DMX-gesteuerten Modus über einen handelsüblichen DMX- Controller, sowie drahtlos über QuickDMX mit dem optional erhältlichen EUROLITE QuickDMX USB Wireless Transmitter/Receiver betrieben werden.
Control Board Das Control Board bietet mehrere Möglichkeiten: so lassen sich z. B. die DMX-Startadresse eingeben, das vorprogrammierte Programm abspielen oder der DMX-Kanal Modus auswählen. Drücken Sie die Menu-Taste, um das Hauptmenü aufzurufen. Durch Drücken der Up/Down-Tasten können Sie sich im Hauptmenü bewegen. Zur Auswahl des gewünschten Menüpunktes drücken Sie die Enter-Taste. Durch Drücken der Up/Down-Tasten können Sie die Auswahl verändern.
Fernbedienung EUROLITE IR-38 Die IR-Fernbedienung steuert die folgenden Funktionen: Tasten Funktion Steuerung über IR-Fernbedienung ein/aus Pty1 Dimmerintensität der LED-Farben / Pty2 stufenlose RGBW-Farbmischung, Helligkeit mit + und - Pty3 Pty4 FADE COLOR STROBE JUMP FLASH WHITE Farbvoreinstellungen/Preset colors *, Helligkeit mit + und - Bevorzugte Farbeinstellung - Drücken Sie...
DMX-Betrieb Anzahl der DMX-Kanäle und DMX-Startadresse einstellen Für den Betrieb über einen Controller mit DMX512-Protokoll verfügt das Gerät über 11 Steuerkanäle. Es kann aber auch in einen Modus mit 3, 4, 6 oder 8 Kanälen umgeschaltet werden, wenn andere Funktionen benötigt werden.
Page 14
8-Kanal-Modus Kanal Wert Eigenschaft Dimmer, Dimmerintensität von 0 bis 100 % 0-255 0-255 Rot, 0 - 100 % zunehmend 0-255 Grün, 0 - 100 % zunehmend 0-255 Blau, 0 - 100 % zunehmend 0-255 Weiß, 0 - 100 % zunehmend 0-14 Keine Funktion Strobe-Effekt mit zunehmender Geschwindigkeit...
UMWELTSCHUTZ Informationen zur Entsorgung Bitte übergeben Sie das Gerät bzw. die Geräte am Ende der Nutzungsdauer zur umweltgerechten Entsorgung einem örtlichen Recyclingbetrieb. Geräte, die mit diesem Symbol gekennzeichnet sind, dürfen nicht im Hausmüll entsorgt werden. Für weitere Informationen wenden Sie sich bitte an Ihren Händler oder die zuständige örtliche Behörde. Entnehmen Sie evtl.
USER MANUAL LED CLS-18 QCL RGB/WW 18x7W DANGER! Electric shock caused by short-circuit Be careful with your operations. With a dangerous voltage you can suffer a dangerous electric shock when touching the wires. Never open the housing. Keep the device away from rain and moisture.
SAFETY INSTRUCTIONS WARNING! Please read the safety warnings carefully and only use the product as described in this manual to avoid accidental injury or damage. Intended use • This device is an LED spotlight for creating decorative lighting effects. This device is designed for professional use in the field of event technology, e.g.
Page 20
Warning – risk of burns and fire • The admissible ambient temperature range (Ta) is -5 to +45°C. Do not operate the device outside of this temperature range. • The housing temperature (Tc) can be up to 70°C during use. Avoid contact by persons and materials. •...

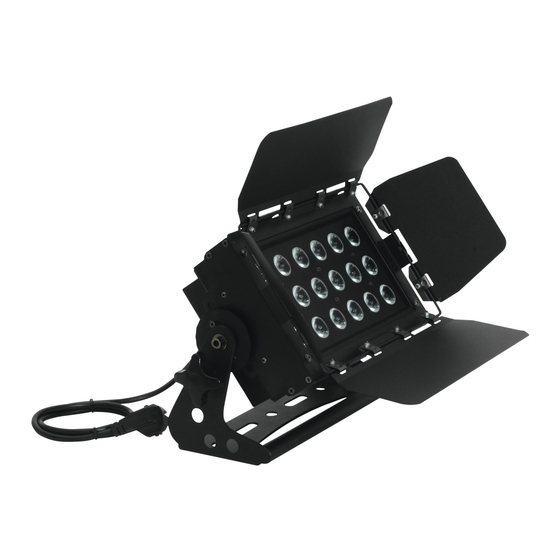

DESCRIPTION OF THE DEVICE (1) Barn doors (2) Lens/LED (3) Infrared sensor for the remote control (4) Thread knurled screw for the frost filter (5) Fixation lever (6) Knurled screw for the barn doors (7) Display (8) 5-pin DMX output (9) 5-pin DMX input (10) 3-pin DMX output (11) 3-pin DMX input...
INSTALLATION WARNING! Risk of injury caused by falling objects Devices in overhead installations may cause severe injuries when crashing down. Make sure that the device is installed securely and cannot fall down. The installation must be carried out by a specialist who is familiar with the hazards and the relevant regulations. The device may be placed on the floor or fastened to a truss or similar rigging structure.
DMX512 CONTROL A DMX512 data link is required in order to control the device via DMX. The device provides 3- and 5-pin XLR connectors for DMX connection. Connect the output of your DMX controller to the DMX input DMX IN of the device with a DMX cable. Connect the DMX output DMX OUT of the device to the DMX input of the next unit in the chain.
The display lights up and you can choose the desired mode via the buttons MENU, ENTER, UP, DOWN. The device has two operating modes. It can be operated in stand-alone mode via the control board and the EUROLITE IR-38 remote control or in DMX-controlled mode via a standard DMX controller as well as wireless...
Control Board The Control Board offers several features: you can easily set the starting address, run the pre-programmed program or select a DMX channel mode. The main menu is accessed by pressing Menu. Browse through the menu by pressing Up or Down. Press Enter in order to select the desired menu.
Page 26
Internal programs / blackout Black Blackout Blue Dark Pty 1 Red Green Blue Blue Yellow Pty 2 Cyan Magenta Yellow Blue Cyan Red Green Blue Cyan Pty 3 Blue Magenta Magenta Yellow Pty 4 Red Green Blue White Blue White Rainbow Red, Yellow, Green, Cyan,...
EUROLITE IR-38 remote control The IR remote control has the following functions: Buttons Function IR remote control on/off Pty1 Dimmer intensity of the LED colors / Pty2 stepless RGBW color mixture, brightness with Pty3 + and - Pty4 FADE STROBE...
DMX operation Setting the number of DMX channels and the DMX starting address For operation with a controller with DMX512 protocol, the device is equipped with 11 control channels. However, it can also be switched to a mode with 3, 4, 6 or 8 channels, if different functions are required. To be able to operate the device with a DMX controller, the DMX starting address must be set.
Page 29
8 channel mode Channel Value Feature 0-255 Dimmer, dimmer intensity from 0 to 100 % 0-255 Red, 0 - 100 % increasing 0-255 Green, 0 - 100 % increasing 0-255 Blue, 0 - 100 % increasing 0-255 White, 0 - 100 % increasing 0-14 No function 15-255...
Internal programs Black - Blackout (no internal program) 4-10 Pty 1 - Red Green Blue 11-17 Pty 2 - Cyan Magenta Yellow 18-24 Pty 3 - Red Green Blue Cyan Magenta Yellow 25-31 Pty 4 - Red Green Blue White 32-38 Rbw - Rainbow Red, Yellow, Green, Cyan, Blue, Magenta 39-45...
PROTECTING THE ENVIRONMENT Disposal of old equipment When to be definitively put out of operation, take the product to a local recycling plant for a disposal which is not harmful to the environment. Devices marked with this symbol must not be disposed of as household waste.
