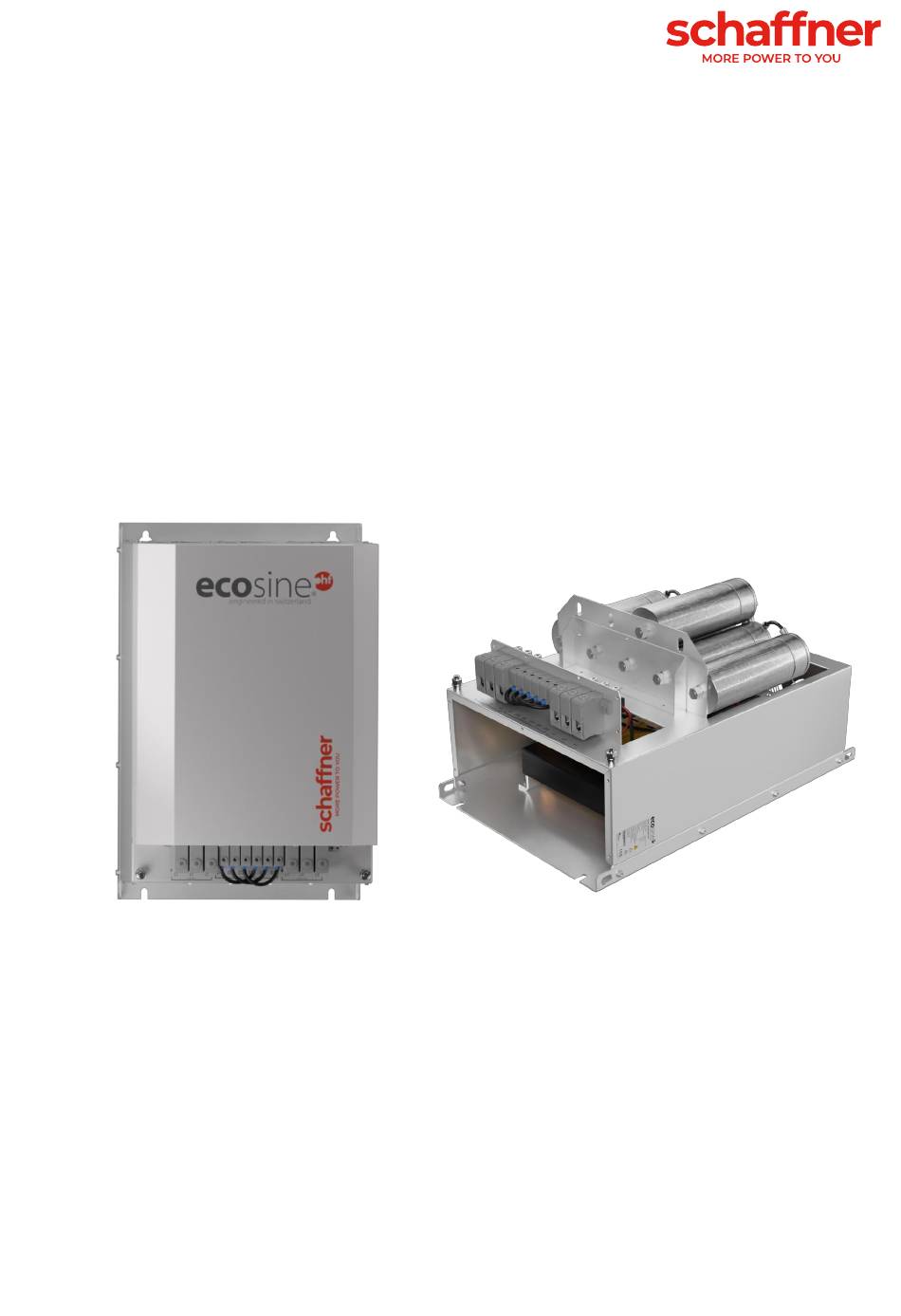

- Page 1 USER AND INSTALLATION MANUAL Ecosine Flex Passive Harmonic Filters Schaffner EMV AG Nordstrasse 11e 4542 Luterbach Switzerland Main +41 32 681 66 26 schaffner.com...
- Page 2 English version (original instructions) The most current edition of this document (PDF format) can be obtained from your contact of the Schaffner organization or at schaffner.com/downloads. Other technical documentations of our products are also available in the download area of our website schaffner.com.
- Page 3 It provides helpful solutions to overcome harmonics mitigation challenges and answers frequently asked questions. If you require additional support, please feel free to contact your local Schaffner representative. ii. Performance Guarantee By selecting and installing the appropriate ecosine evo passive harmonic filter in a variable frequency...
- Page 4 Important user notice Schaffner Ecosine Flex Passive Harmonic Filters are designed for the operation on the input (grid) side of power electronic equipment with six-pulse rectifier front-end in balanced three-phase power systems, like typically used in AC or DC motor drives and high-power DC supplies. Filter suitability for a given application must be determined by the user on a case-by-case basis.
- Page 5 v. General Safety Notes and Installation Guidelines (Cautions and Warnings) User and installation manual Ecosine Flex Passive Harmonic Filters 4/46...
-
Page 6: Table Of Contents
Table of Contents 1 Ecosine Flex Passive Harmonic Filters designation ..... 7 Explanation of Ecosine Flex designation ............7 Selection of Ecosine Flex filter ............... 7 2 Filter selection .................. 8 Filter selection table FN3446 (50 Hz, 3×380 … 480 VAC) ......10 Filter selection table FN3458 (60 Hz, 3×380 …... - Page 7 7 Filter installation ................34 Step 1: Visual inspection ................34 Step 2: Mounting .................... 34 7.2.1 Fixation ..........................35 7.2.2 Screws and bolts selection ....................35 7.2.3 Filter placement ........................35 Step 3: Wiring....................36 7.3.1 Verify safe disconnection of all line side power..............36 7.3.2 Carefully connect protective earth (PE) wire to adequate earth potential close to Ecosine filter.
-
Page 8: Ecosine Flex Passive Harmonic Filters Designation
1 Ecosine Flex Passive Harmonic Filters designation 1.1 Explanation of Ecosine Flex designation Ecosine Flex is the new generation of Schaffner 10% THDi passive harmonic filter. They are introduced with a new designation system, which contains of 4 sections connected with ‘-’ as shown in Figure 1 Ecosine Flex designation ▪... -
Page 9: Filter Selection
Ecosine Flex filters are simple to select according to the network frequency and the IP protection degree needed. As an additional support from the step below, Schaffner offers the Schaffner Power Quality Simulator SchaffnerPQS3 (pqs.schaffner.com) to select and verify the most suitable Ecosine filter for your application. - Page 10 Example 2: Power line rating: 480 V, 60 Hz Drive rating: 380–500 V, 50–60 Hz, 30 HP, 41 A, diode rectifier Planned rectifier/drive input real power: 30 HP (100% of drive rating) ➔ Recommended filter according to the filter selection table FN3458: Type FN3458-30-33 Oversizing of passive harmonic filters is not recommended because of the inherent lower harmonic mitigation performance at partial load as well as higher cost, size, and weight.
-
Page 11: Filter Selection Table Fn3446 (50 Hz, 3×380
2.1 Filter selection table FN3446 (50 Hz, 3×380 … 480 VAC) Table 1 FN3446 IP00 filter selection table Filter Rated Rated Motor Rated fil- Weight Typical Input TDJ ter- Frame load load drive in- ter input losses /output minals size power power put cur-... - Page 12 Table 2 FN3446 IP20 filter selection table Filter Rated Rated Motor Rated fil- Weight Typical Input TDJ ter- Frame load load drive in- ter input losses /output minals size power power put cur- current terminals @400 @480 rent V/50 Hz V/50 Hz [kW] [kW]...
-
Page 13: Filter Selection Table Fn3458 (60 Hz, 3×380
2.2 Filter selection table FN3458 (60 Hz, 3×380 … 480 VAC) Table 3 FN3458 IP00 filter selection table Rated Rated Motor Rated Weight Typical Terminal Frame Filter load load drive filter losses size power power input input @400 @480 current current V/60 Hz V/60 Hz... - Page 14 Table 4 FN3458 IP20 filter selection table Filter Rated load Rated load Motor Rated Weight Typical Input Frame power power drive in- filter in- losses /out- ter- size @480 V/60 @380 V/60 put cur- put cur- rent rent termi- nals nals [kW] [HP]...
-
Page 15: Filter Configurations
2.3 Filter configurations The following block diagrams represent the filter configurations. FN34nn-xxx-yy-E2FAJXX FN34nn-xxx-yy-E0XXJXX and FN34nn-xxx-yy-E2XXJXX User and installation manual Ecosine Flex Passive Harmonic Filters 14/46... -
Page 16: Filter Description
3 Filter description 3.1 General electrical specifications FN3446 (50 Hz filters) Nominal operating voltage: 3x 380 to 480 V AC Voltage tolerance range: 3x 342 to 528 V AC Operating frequency: 50 Hz ±1 Hz Network: TN, TT, IT Nominal motor drive input power rating: 4 to 200kW <... -
Page 17: General Electrical Specifications Fn3458 (60 Hz Filters)
3.2 General electrical specifications FN3458 (60 Hz filters) Nominal operating voltage: 3x 380 to 480 V AC Voltage tolerance range: 3x 342 to 528 V AC Operating frequency: 60 Hz ±1 Hz Network: TN, TT, IT Nominal motor drive input power rating: 5 to 300 HP (4 to 224kW) <... -
Page 18: Additional Electrical Specifications
3.3 Additional electrical specifications Ecosine Flex Passive Harmonic Filters general electrical specifications refer to operating altitudes up to 2000m (6600ft) above sea level. Operation between 2000m and 4000m (6600ft and 13123ft) requires a derating for clearance and current. 3.3.1 Clearance derating by altitude Table 5 Altitude correction factors for clearances (extract from table A.2 in IEC 60664-1) Altitude [m] Normal barometric pressure... -
Page 19: Earth Terminals
Table 6 Ecosine Flex filter terminals designation Terminal LxWxH [mm] Stranded Stranded Solid wire Rec. Torque Ring cable designation wire AWG wire [mm²] [mm²] [Nm] shoe 21.9x10x28 20 - 8 0.5 - 6 0.5 - 10 1.0 - 1.2 25x11x32 20 - 6 0.5 - 10 0.5 - 16... -
Page 20: Cooling Requirement
3.6 Cooling requirement Inlet air flow requirements for each frame size are listed in Table 9. Please note that the filters with frame size A do not require air cooling. For frame sizes B to G, the required inlet air flow must be fulfilled, either by including the optional fan module or by providing sufficient external air flow. -
Page 21: Mechanical Frame Sizes
3.7 Mechanical frame sizes Ecosine Flex Passive Harmonic Filters are implemented on a base plate or base frame featuring 7 different frame sizes, Frame A to Frame G, from the lowest to the highest rating. Dimensions and footprint are provided in section 3.8. Frame sizes A do not require air flow, but frame sizes B to G in IP00 versions need external ventilation, while IP20 versions are equipped with fans and power supply for embedded active cooling. - Page 22 Figure 3 Overview of all IP20 frame sizes 21/46 User and installation manual Ecosine Flex Passive Harmonic Filters...
-
Page 23: Ecosine Flex Filter Footprint And Dimensions
3.8 Ecosine Flex filter footprint and dimensions Figure 4 Frame size A to E in IP00 User and installation manual Ecosine Flex Passive Harmonic Filters 22/46... - Page 24 Figure 5 Frame size F and G in IP00 23/46 User and installation manual Ecosine Flex Passive Harmonic Filters...
- Page 25 Figure 6 Dimensions of all IP00 versions TYPE FN3446-4-44-E0XXJXX FN3446-6-44-E0XXJXX FN3446-8-44-E0XXJXX FN3446-11-33-E0XXJXX FN3446-15-33-E0XXJXX FN3446-19-33-E0XXJXX FN3446-22-33-E0XXJXX FN3446-30-34-E0XXJXX FN3446-37-34-E0XXJXX FN3446-45-35-E0XXJXX FN3446-55-35-E0XXJXX FN3446-75-40-E0XXJXX FN3446-90-40-E0XXJXX FN3446-110-40-E0XXJXX FN3446-132-99-E0XXJXX FN3446-160-99-E0XXJXX FN3446-200-99-E0XXJXX FN3458-5-44-E0XXJXX FN3458-8-44-E0XXJXX FN3458-10-44-E0XXJXX FN3458-15-33-E0XXJXX FN3458-20-33-E0XXJXX FN3458-25-33-E0XXJXX FN3458-30-33-E0XXJXX FN3458-40-34-E0XXJXX FN3458-50-34-E0XXJXX FN3458-60-35-E0XXJXX FN3458-75-35-E0XXJXX FN3458-100-40-E0XXJXX FN3458-125-40-E0XXJXX FN3458-150-40-E0XXJXX FN3458-200-99-E0XXJXX FN3458-250-99-E0XXJXX FN3458-300-99-E0XXJXX User and installation manual Ecosine Flex Passive Harmonic Filters...
- Page 26 Figure 7 Frame size A to E in IP20 25/46 User and installation manual Ecosine Flex Passive Harmonic Filters...
- Page 27 Figure 8 Frame size F and G in IP20 User and installation manual Ecosine Flex Passive Harmonic Filters 26/46...
- Page 28 Figure 9 Dimensions of all IP20 versions TYPE FN3446-4-44-E2XXJXX FN3446-6-44-E2XXJXX FN3446-8-44-E2XXJXX FN3446-11-33-E2FAJXX FN3446-15-33-E2FAJXX FN3446-19-33-E2FAJXX FN3446-22-33-E2FAJXX FN3446-30-34-E2FAJXX FN3446-37-34-E2FAJXX FN3446-45-35-E2FAJXX FN3446-55-35-E2FAJXX FN3446-75-40-E2FAJXX FN3446-90-40-E2FAJXX FN3446-110-40-E2FAJXX FN3446-132-99-E2FAJXX FN3446-160-99-E2FAJXX FN3446-200-99-E2FAJXX FN3458-5-44-E2XXJXX FN3458-8-44-E2XXJXX FN3458-10-44-E2XXJXX FN3458-15-33-E2FAJXX FN3458-20-33-E2FAJXX FN3458-25-33-E2FAJXX FN3458-30-33-E2FAJXX FN3458-40-34-E2FAJXX FN3458-50-34-E2FAJXX FN3458-60-35-E2FAJXX FN3458-75-35-E2FAJXX FN3458-100-40-E2FAJXX FN3458-125-40-E2FAJXX FN3458-150-40-E2FAJXX FN3458-200-99-E2FAJXX FN3458-250-99-E2FAJXX FN3458-300-99-E2FAJXX 27/46...
-
Page 29: Filter Performance
3.9 Filter performance Ecosine Flex Passive Harmonic Filters performance dependent on several conditions. The first condition is the size of the DC-Link choke in the drive. For 6-pulse diode rectifiers drive with ≥ 4% DC-Link choke: the typical performance achieves a THDi of 10% or better. -
Page 30: Additional Considerations Regarding The Performances
THDi performance is not guaranteed for thyristor rectifier (often called SCR drives) application. The performance of the filter is dependent on the firing angle of the thyristors. The performance can be simulated using Schaffner PQS (see section 5). 29/46 User and installation manual Ecosine Flex Passive Harmonic Filters... -
Page 31: Functional Diagram
3.10 Functional diagram Filter terminals Line L1/L2/L3 3 terminal blocks or bus bars Load L1’/L2’/L3’ 3 terminal blocks or bus bars TS/TS’ Connecting terminals to thermal switch NC 180°C (UL- approved) to detect overload in chokes Protective earth. Threaded stud with washer and nut Trap Disconnect Jumper (TDJ) terminals. -
Page 32: Filter Appearance And Elements
4 Filter appearance and elements The very compact and neat design of Ecosine Flex Passive Harmonic Filters is realized by a two-stage construction. The filter constructions of all frame sizes are identical. The general design is shown in Figure 13. There are trap capacitor C , trap disconnect jumper, power terminal and fan inlet visible on the upper- stage. -
Page 33: Performance Estimation Using Schaffnerpqs
5 Performance estimation using SchaffnerPQS Ecosine Flex Passive Harmonic Filters can be simulated with the Schaffner Power Quality Simulator, SchaffnerPQS, at pqs.schaffner.com. By using SchaffnerPQS, users can easily simulate and estimate system performance, taking into account the most important design requirements and system’s boundary conditions. -
Page 34: Filter Application
6 Filter application Ecosine Flex Passive Harmonic Filters are designed to mitigate harmonic current of non-linear loads, particularly of three-phase diode-type rectifiers. Contrary to “bus-applied or PCC (Point of Common Coupling)” filters, which are being installed e.g. at the main feeder, they are specifically designed to be used with either an individual non-linear load or two of the same load connecting in parallel. -
Page 35: Filter Installation
In the case of damage, please immediately file a claim with the freight forwarder involved and contact your local Schaffner partner for support. Under no circumstances install and energize a filter with visible transportation damage. If the filter is not going to be put in service upon receipt, after inspection, store it in its original container in a clean, dry location, free of dust and chemicals and with respect to named temperature limits, see section 3.1. -
Page 36: Fixation
Drill pattern [mm] All dimensions in mm; 1 inch = 25.4mm 7.2.2 Screws and bolts selection Screw selection: Schaffner recommends zinc coated hex ribbed flange steel bolts. Respect filters weight for appropriate choice of screws! Head diameters must not exceed these dimensions: M6: d ≤14.2 mm,... -
Page 37: Step 3: Wiring
7.3 Step 3: Wiring 7.3.1 Verify safe disconnection of all line side power. Consult your local safety instructions. >150mm 7.3.2 Carefully connect protective earth >100mm (PE) wire to adequate earth potential close >100mm to Ecosine filter. Use a wire diameter of equal or bigger size as foreseen for line/load side power cables –... -
Page 38: Connect Ecosine Load Side Terminals L1', L2', L3' To Respective Motor Drive Or Rectifier Inputs
When interconnected via an external capacitor nominal voltage (400 V for FN3446, contactor (not supplied by Schaffner) they allow for load FN3458) dependent disconnection of the trap circuit, if needed. approximate reactive power. -
Page 39: Connect Ecosine Line Side Terminals L1, L2, L3 To Power Input Protection (Current Limiting Fuses - See Below)
7.3.7 Connect Ecosine line side terminals L1, L2, L3 to power input protection (current limiting fuses – see below). The third part of Ecosine Flex designation is a number containing two digits, i.e. FN3446-11-33, which indicates power terminal type. See section 3.4 for the recommended wire size and torque. Use stranded copper wire with a temperature rating of 75°C or higher. -
Page 40: Fuses
Table 11 and Table 12 show requested fuse current ratings for UL class J and, where UL compliance is not mandatory, for IEC class gG. The fuse rating is independent of the supply voltage. In case of higher power load, Schaffner recommend using Ecosine Max Passive... - Page 41 Table 11 Requested fuse current rating for UL class J and for IEC class gG Ecosine Flex type FN3446 Fuse class J Fuse class gG rated A rated A FN3446-4-44 FN3446-6-44 FN3446-8-44 FN3446-11-33 FN3446-15-33 FN3446-19-33 FN3446-22-33 FN3446-30-34 FN3446-37-34 FN3446-45-35 FN3446-55-35 FN3446-75-40 FN3446-90-40 FN3446-110-40...
-
Page 42: Filter Maintenance
Fans are 100% field replaceable without the need to uninstall and disconnect the filter. Forced cooling devices are needed for the operation of some Schaffner Ecosine Flex Passive Harmonic Filters up to their nominal rating. Such cooling devices must be checked and cleaned regularly (if installed) to always ensure sufficient air flow. -
Page 43: Power Capacitors
This holds true not only for the filter, but for any such joint within an electrical installation. Therefore, Schaffner recommends checking and tightening all electrical connections during regular scheduled... -
Page 44: Trap Circuit Disconnect
In such cases it may not be necessary to use the trap circuit disconnect feature. Recommended settings: Schaffner recommends engaging and disengaging the trap circuit disconnect at following load levels: Trap circuit state change to Proposed load level Disconnected When load level drops under 10–15%... -
Page 45: Troubleshooting
In the unlikely event of a problem, please contact your local Schaffner partner for assistance. 11 Abbreviation Ecosine Flex:... - Page 46 [This page is intentionally left blank.] 45/46 User and installation manual Ecosine Flex Passive Harmonic Filters...
- Page 47 Schaffner group companies (“Schaffner”) and do not constitute an offer for purchase or sale or a recommendation or advice. The content of this document has been carefully prepared and reviewed and all reasonable efforts have been made to ensure the accuracy of the information.
- Page 48 Schaffner EMV AG Nordstrasse 11e 4542 Luterbach Switzerland Main +41 32 681 66 26 schaffner.com...
