19/05/2014
Ins-30168 Net2 PaxLock
Technical Support
01273 811011
Technical help is available:
Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/

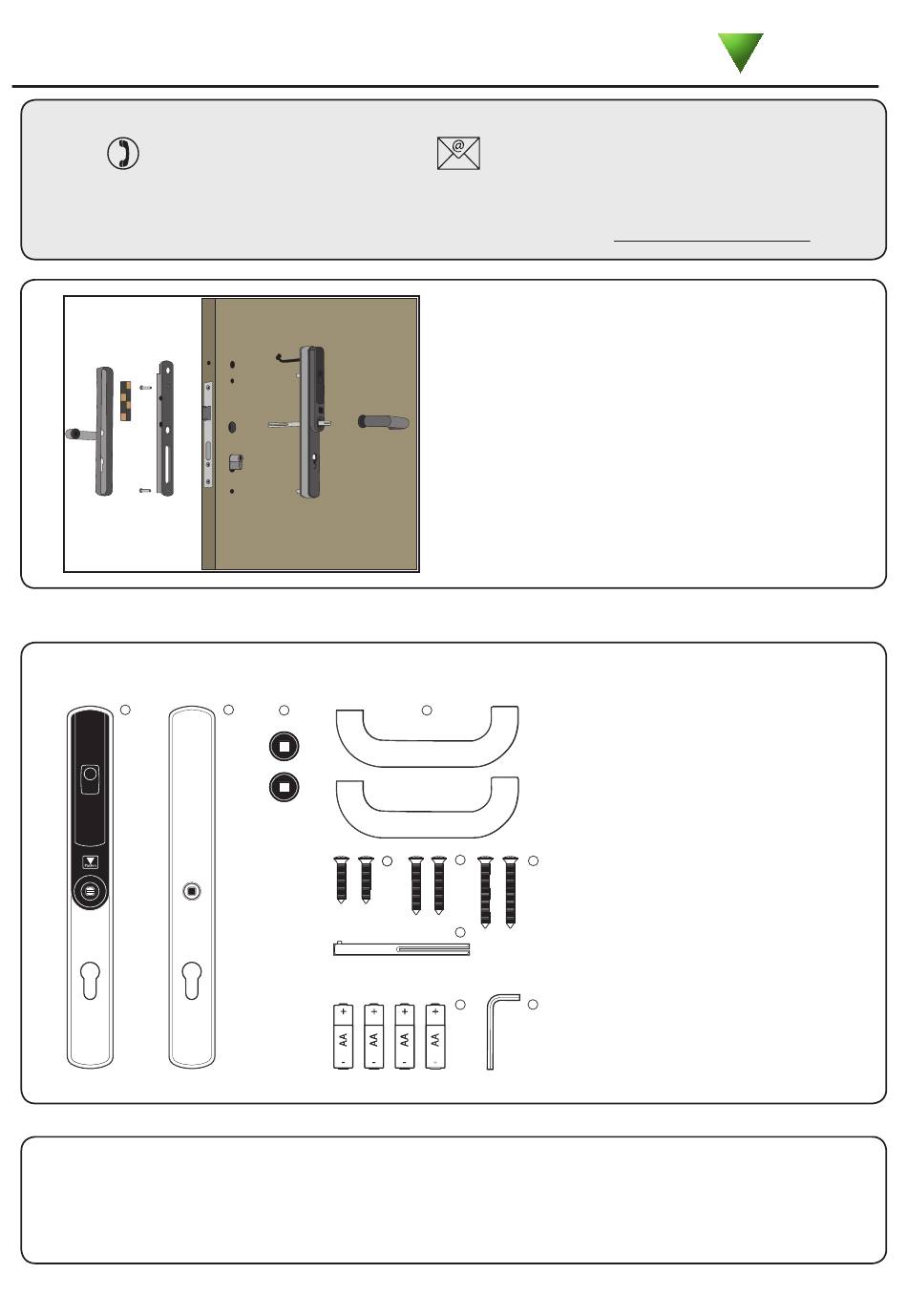

Parts list
1
Tools List
Power Drill
Drill bits 10 mm, 16 mm
Philips screwdriver
2
3
5
support@paxton.co.uk
Monday - Friday from 07:00 - 19:00 (GMT)
Saturday from 09:00 - 13:00 (GMT)
This wireless unit requires a Net2Air bridge
to communicate with the server PC.
This unit requires Net2 v4.23 or later software.
Call Technical Support if you require advice.
4
1) Front Lock Assembly
2) Rear Lock Assembly
3) Handle Rose x 2
4) Door Handle x 2
6
7
5) Mounting screw ( short ) x 2
6) Mounting screw ( medium ) x 2
8
7) Mounting screw ( long ) x 2
8) 8 mm Spindle
9
10
9) AA battery x 4
10) 4 mm Allen Key
Small flat blade terminal screwdriver
Pencil
4mm Allen key (supplied)
Paxton
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Paxton Ins-30168 Net2 PaxLock
Summary of Contents for Paxton Ins-30168 Net2 PaxLock
- Page 1 Monday - Friday from 07:00 - 19:00 (GMT) Saturday from 09:00 - 13:00 (GMT) Documentation on all Paxton products can be found on our website - http://www.paxton.co.uk/ This wireless unit requires a Net2Air bridge to communicate with the server PC.
- Page 2 Installing the hardware Step 1 - Marking out The lock case and cylinder (not supplied) must first be fitted to the door, ensuring that a 22-24 mm diameter hole is Ø 16 drilled for the follower (As shown on the template provided). Ø...
- Page 3 Step 5 - Mounting on the door Present the front lock assembly to the door passing the wiring harness through the 16 mm hole. Present the rear lock assembly to the door and join the two parts together with the two mounting screws. Mounting screws are provided in three lengths.
- Page 4 The Net2 software should be loaded on the controlling PC and at least one Net2Air bridge configured to communicate with the unit. Full documentation is supplied with the Net2Air bridge unit and also on the website as follows: XAN1051 - Installing Net2 software < http://paxton.info/1520 > XIns-30084 - Net2Air USB bridge < http://paxton.info/926 >...
- Page 5 The unit is configuring - Please wait. Net2Air wireless communication The access control unit connects to the Net2 system using Paxton Net2Air proprietary wireless technology through a Net2Air bridge. Radio signals do not always behave as you might expect. For example, a mobile phone that displays a full signal on one part of the site will lose signal completely only a few metres away.
- Page 6 Sleep mode The PaxLock is a standalone unit and stays asleep while there is no user activity. The Net2 server cannot wake up the unit. If the PIR is activated or the front button is pressed, it powers up the reader circuits in readiness for a token read.
- Page 7 35 degrees The declaration of conformity is available on request. Contact details are provided at: http://paxton.info/596 The Net2 PaxLock is EN1634-1:2008 FD30 and FD60 Fire resistant. This product is not suitable for retail sale. All warranties are invalid if this product is not installed by a competent person.
