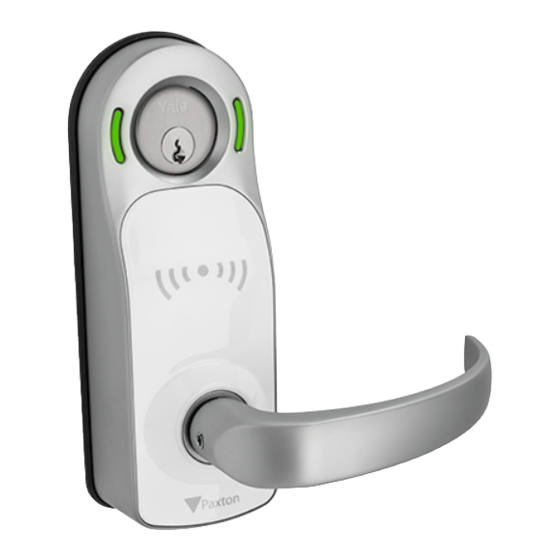

PaxLock Mortise - Installation
and Commissioning Guide
Overview
When installing a PaxLock Mortise it is important to
ensure the environment the PaxLock Mortise is to
be installed in is fit for purpose.
This application note covers the preparation that
should be carried out before, during and after
installation to ensure the longevity of the Net2
PaxLock Mortise as well as correct installation.
This application note also covers a few common
problems which may impact the performance and
quality of the PaxLock Mortise.
Checks to make prior to installation
Before installing the PaxLock Mortise onto the door it is important to check that the door, frame and any
relevant door furniture are in good working order. This is important to ensure both the longevity and
smooth operation of the PaxLock Mortise once installed.
Through door holes

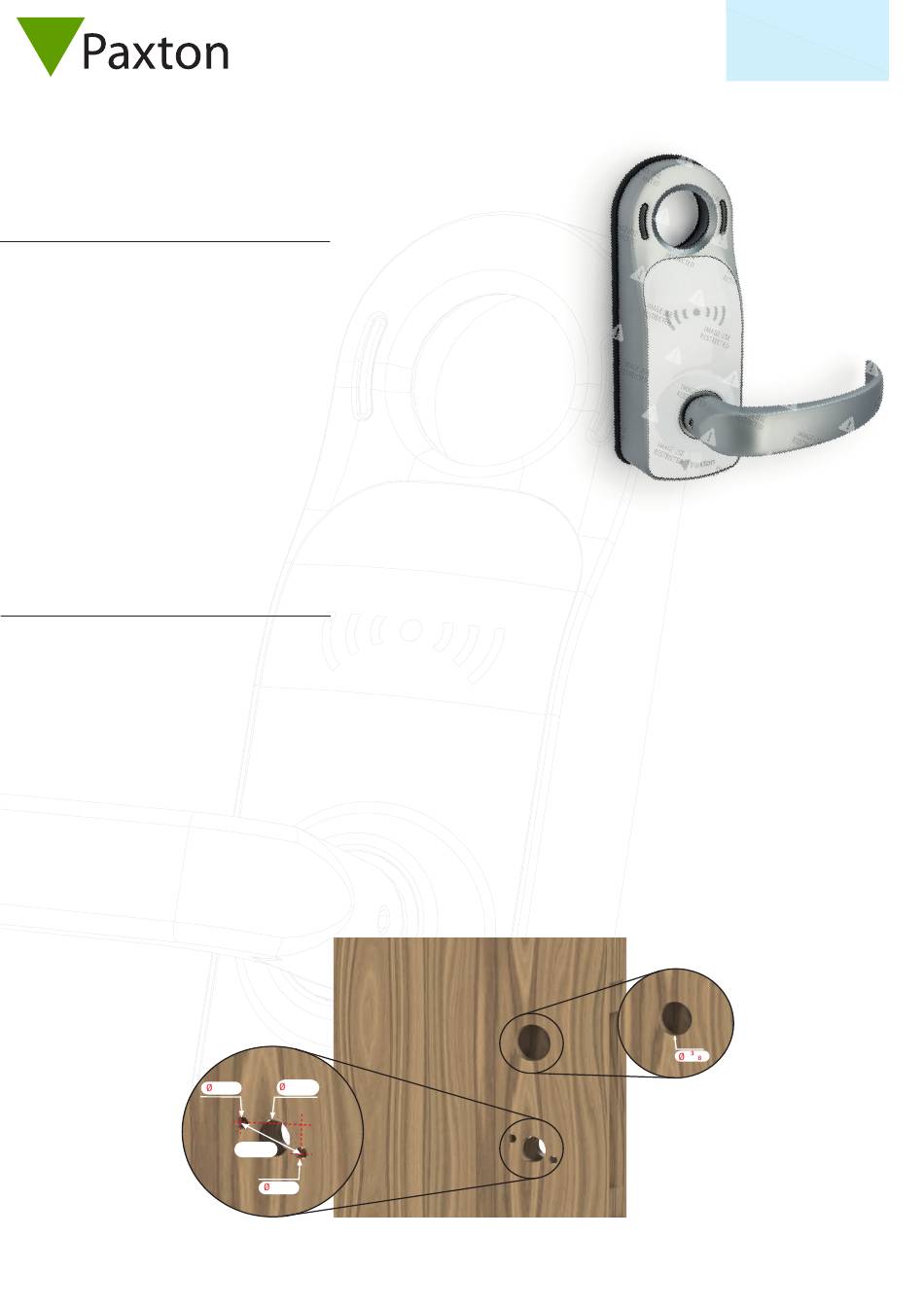

The PaxLock Mortise has been designed to work with the Yale 8800 series lockset as shown in Figure 1.
The through door holes must be 5/16" diameter and the central follower must have at least 15/16"
clearance around it.
5/16"
Figure 1
15/16"
1-21/32"
5/16"
Net2
AN1181-US
1 / "
1
Advertisement
Related Manuals for Paxton PaxLock Mortise
Summary of Contents for Paxton PaxLock Mortise
- Page 1 Checks to make prior to installation Before installing the PaxLock Mortise onto the door it is important to check that the door, frame and any relevant door furniture are in good working order. This is important to ensure both the longevity and smooth operation of the PaxLock Mortise once installed.
- Page 2 Net2 AN1181-US Lockset It is recommended that the PaxLock Mortise is installed with a new lockcase to ensure the smooth operation of the PaxLock Mortise. If an existing lock set is being used it must meet the following specifications: •...
- Page 3 It is best practice to ensure there is a gap of 1/8 in from the door edge to the frame. This is to ensure that if an deadlatch is present on the lock case, it can function correctly. The door strike plate should also be 5/8 in to avoid clashing with the PaxLock Mortise when the door is closed...
- Page 4 Metal doors The PaxLock Mortise is suitable for installation onto metal doors providing both the width and lockset are within the specifications outlined on the PaxLock Mortise datasheet. To ensure correct operation the following must be checked: •...
-
Page 5: During Installation
AN1181-US Ordering the right equipment Once you are happy the site is suitable for the PaxLock Mortise you will need to ensure you have the right information to order the correct products. There are 4 sales codes to chose from for PaxLock Mortise. You’ll need to know if you prefer the Galaxy or Eclipse handle as well as if you would like the black or white fascia. -
Page 6: Troubleshooting
Once the PaxLock Mortise has been installed there are several checks that can be made to ensure the PaxLock Mortise has been installed and is functioning correctly. When the PaxLock Mortise is first powered up it will remain in an unlocked state. This will give you the chance to check the following;... - Page 7 Net2 AN1181-US PaxLock Mortise The edge of the PaxLock Mortise or handle is If this occurs, it may be a result of the backset clipping the door frame when opening and on the lock case being too low. We recommend closing the door.
