Parts Manual
Port A Scrub 14
MODEL M14100 (Electric)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M14100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Minuteman M14100

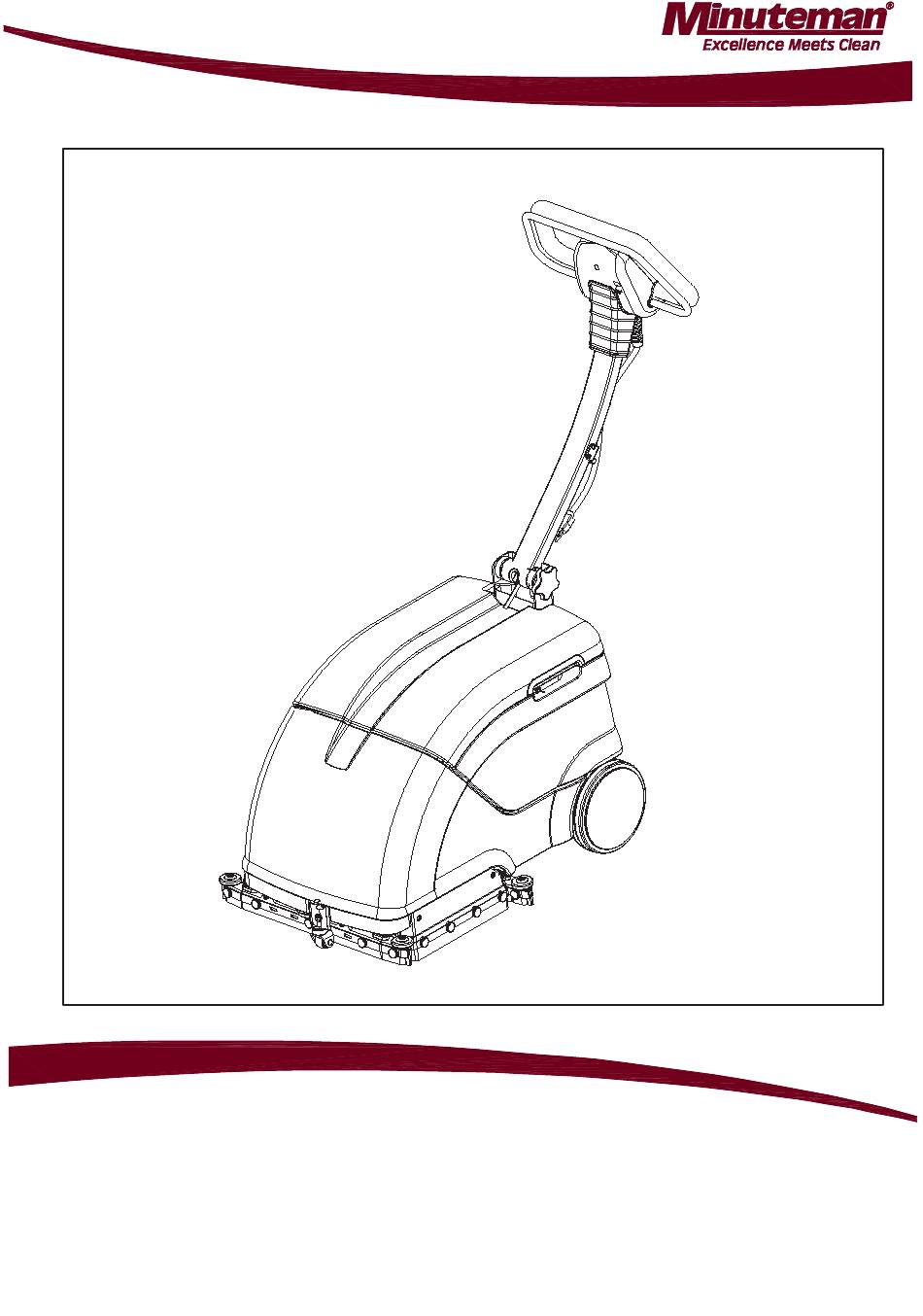

  • Page 1 Parts Manual Port A Scrub 14 MODEL M14100 (Electric)
  • Page 2: Table Of Contents

    Contents Instruction Manual Preface....................... Introduction Proper Use......................Notes on Warranty....................Acceptance of the Machine................. General Safety Provisions Operation......................Transport......................Park Position....................... Handling Mains Cable..................Operation Machine......................Useful Advice for Optimum Cleaning..............Working Principle....................First Operation Assembly......................Before Operation....................Description Controls......................Control Panel......................
  • Page 3 Contents Spare Parts Manual Chassis Group..................... Handle Group...................... Brush Drive Group....................Brush Head Group....................Vacuum Motor Assembly..................Vacuum Motor Group..................Squeegee Group....................Squeegee Lifting System..................Water Feed System..................... Tank Group......................Drive Group......................Electrical Group....................Port A Scrub 14 Assy..................
  • Page 4: Instruction Manual

    If repair work has to be performed, make sure that only genuine spare parts are used since genuine spare parts only may guarantee continuous and dependable operation of your machine. Valid as for JULY 2007 Minuteman International, Inc 111 South Rowling Road, Addison, IL 60101-4244, USA.
  • Page 5: Notes On Warranty

    The terms of the sales contract apply. Damages are not subject to warranty if they are due to non-compliance with the maintenance and service provisions. Any maintenance work has to be performed by an authorized Minuteman service workshop and confirmed in the “Maintenance certificate “which is the warranty document.
  • Page 6: Transport

    Make sure to connect the Port A scrub 14 to a socket equipped with earthed protective wire and to mains of adequate voltage and frequency Never collect explosive fluids, undiluted acids and solvents! This includes e.g. gasoline, paint thinners or fuel oil, Which-when penetrating the air being taken in may form explosive vapors or mixtures;...
  • Page 7: Operation

    Operation Working Principle Port A scrub 14 Wet cleaning of hard floorings requires equipment with squeegee and brushes suitable for the type of floor to be cleaned. The rotating brushes and the cleaning lye scrub the dirt and clean the floor thoroughly while the squeegee collects the lye immediately.
  • Page 8: Description

    CAUTION: Mains-operated machine! Qualified personnel only is admitted to open the machine; Any work such as e.g. Maintenance or repair actions at the electric components have to be executed with adequate tools only and by qualified personnel only. 2. After taking the Port A scrub 14 to its park position, set the operating handle into its working position by releasing the...
  • Page 9: Control Panel

    Control panel 1. Brush motor, suction motor and water pump switches A. Brush motor switch ON / OFF ˜ Function in ON if switch “A” is in position “I” B. Suction motor switch ON / OFF ˜ Function in ON if switch “B” is in position “I” C Water pump switch ON / OFF ˜...
  • Page 10: Squeegee Governor

    Screw for fitting the Brush Screw Disconnect the mains plug before mounting or dismounting the brush. Loosen the screw for fitting the brush before use of the machine and afterwards for removal of the brush. Change the brush position after each use in order to preclude one-side wearing.
  • Page 11: Mount / Dismount Brushes

    Mount / Dismount brushes According to the type and degree of soiling, the Port A Scrub14 can be equipped with brushes from the accessories. Refer to chapter ”Technical Data” on page 17. Mount Brush ˜ Use the support roller located at the handle side of the Port A Scrub Brush 14 to set the machine into its park position.
  • Page 12: Squeegee

    Squeegee The Port A scrub 14 has been equipped with a squeegee of 450 mm working width. The squeegees can be lifted- out alternately Check the squeegee for collected foreign particles and Mount Squeegee (Initial Fitting) ˜ Lift squeegee and hold it to the squeegee holders (3). ˜...
  • Page 13: Fill Water

    Use detergents suitable for automatic machines (low foaming) in order to preclude damages at the suction turbine. We recommend Minuteman detergents for cleaning and care, which are perfectly adopted to the Port A Scrub 14. These products fulfil the requirements of the Detergents Act...
  • Page 14: Soiled And Fresh Water Tanks

    Soiled and fresh water tanks Fresh water tank The Port A Scrub 14 is equipped with a soiled and a fresh water tank (lye tank). The filling amounts to 10 litres. Do not fill beyond the maximum Filter mark and do not exceed a water temperature of 50°C Floater A suction hose delivers the soiled water into the soiled water tank.
  • Page 15: Electric System

    Electric System The electric system of the Port A Scrub 14 operates at a mains voltage of 110-120V / 60Hz. After opening the machine top, the brush motor and the suction turbine are well accessible. A T10A fuse (E) protects the suction turbine and has to be replaced by the same type if blown (T stands for slow-blow).
  • Page 16 Wheel Rear wheel, dia Tank capacities Fresh water tank Soiled water tank Throughput , max. l/min Brush head No. of brushes Qty. Brush dia Brush speed Brush contact pressure, max.up to kg (N ) 16-19 Vacuum suction Nominal vacuum pressure, min. mm Hg 60-80 Electrical equipment...
  • Page 17: Maintenance

    Brushes Intended Use Brush, PA Smooth floor Brush, PP Medium Smooth Floor Brush,Silicon Carbide Hard Floor Maintenance Maintenance work Compliance with our recommendations concerning maintenance work will give you the certitude always having a machine at your disposal, which is ready to work and in good operating condition. It is better to take precautions than to repair damages - and less expensive! Please contact your local contract dealer;...
  • Page 18 Service hours Maintenance work Daily every every every Check connections, extension cable and plug for good condition, replace defective cable Empty and clean (rinse) soiled water tank Check sealing strips at the squeegee for condition. Check squeegee for collected foreign matters and clean if required Check the floater for function Check filter sieve of the fresh water tank and clean if required..
  • Page 19: Spare Parts Manual

    Port A Scrub 14 Floor Scrubber Drier Spare Parts Manual...
  • Page 21: Chassis Group

    Chassis Group Ref. Part Description Size 3180004 Base Frame Assy 3130077 Seal - W heel 931756 W heel 3130071 Bush-W heel 3130038 W asher-Main W heel 829306 Hex. Soc. CSK. Head Screw SS M6x16 931128 Cover W heel 931045 Hex Soc. Head Pin 3130054 Bush LH&RH- Pillar Handle 931753...
  • Page 22 25 22 33 30 26...
  • Page 23: Handle Group

    Handle Group Ref. Part Description Size 3180016 Handle (W eldm ent) 3180029 S teering As s y 931281 S w itc h C over - B ottom 3130120 S w itc h C over - T op 847001 C irc uit B reaker 9A 928107 Nut - C irc uit B reaker 925124...
  • Page 25: Brush Drive Group

    Brush Drive Group Ref. Part Description Size 3130002 Hous ing - Brus h 3180022 Hous ing As s y-Gear Support 931171 Hinge - Idler End 3180062 Idler Support As s y Brus h 831306 Hex. Soc .Hd C ap Sc rew -SS M6X16 3180053 Brus h Motor...
  • Page 27: Brush Head Group

    Brush Head Group Ref. Part Description Size 3130006 Housing-Gear Support 875010 Bearing 6003 2RS 3180008 Sprocket Assy Gear 931027 Drive Key 931815 Idler - Plain Assy 831307 Hex. Soc. Hd Cap Screw - St M6X20 875011 Bearing 608 2Z 931036 Gear-LH 931035 Gear-RH...
  • Page 29: Vacuum Motor Assembly

    Vacuum Motor Assembly Ref. Part Description Size 3130046 Hs g B ottom - V.M 931197 Gas ket - V.M 931857 V.M w ith C onnec tor As s y 3130047 Hs g Top - V.M 845052 W as her - S S 304 5.2X10X1.6 837210 S elf Tap S c rew...
  • Page 30 HOLDER-LOAT TANK-COLLECTION SQUEEGEE-REAR SQUEEGEE-FRONT...
  • Page 31: Vacuum Motor Group

    Vacuum Motor Group Ref. Part Description Size 836206 C R P H S elf Tapping S c rew - S S 3.5X16 845039 W as her - S S 4.0X8.0X0.5 931132 Guide - Float 931810 Float 931196 Gas ket - Float 931850 Hos e As s y - Vac uum 931851...
  • Page 33: Squeegee Group

    Squeegee Group Ref. Part Description Size 3130051 B ody S qg 931170 Valve Top 931126 Valve B ottom 832213 Hex. S oc . Hd C ap S c rew - S S M5X50 931233 Lip - S qg. Inner 931224 Lip - S qg.
  • Page 34 12 19 18 15 14 13...
  • Page 35: Squeegee Lifting System

    Squeegee Lifting System Ref. Part Description Size 931181 C lip - C lam p 931051 P in 6 - P illar S qg 3180013 S queegee Front 3180014 S queegee R ear 931804 C able As s y - S queegee 3180027 S qg R od As s y - Front 3180026...
  • Page 37: Water Feed System

    Water Feed System Ref. Part Description Size 931142 Holder - Noz z le 931198 W as her - Noz z le 931816 Noz z le As s y 931143 Nut - Noz z le 3130113 Vibrating Pad-Pum p 925325 Vibrating Pum p 3130111 C onnec tor-Pum p 928054...
  • Page 39: Tank Group

    Tank Group Ref. Part Description Size 3130117 Bottom Hous ing 931125 C ap - V.M 931144 Yoke Hinge - Lid (R ight) 836206 C R PH Self Sc rew -SS 3.5X16 931162 Yoke Hinge - Lid (Left) 3130068 Mounting Plate - Bot. Hs g 836004 C R PH Self Sc rew - SS 3.5X13...
  • Page 41: Drive Group

    Drive Group Ref. Part Description Size 3130040 S upport P late-Hous ing 844061 W as her 6.4X12X16 831307 Hex S oc Hd C ap S c rew M6X20 845041 W as her-S S 4.3X9X0.8 818105 C R P an Head-S S M4X15...
  • Page 43: Electrical Group

    Electrical Group Ref. Part Description Size 3130055 B as e - Term inal 931150 C over - Term inal 836006 C R P H S elf S c rew - S S 3X16 931195 Grom m et - Term inal 931844 C onnec tor - P illar 931123...
  • Page 44 -M2.X4...
  • Page 45 Electrical Group Ref. Part Description Size 931874 7Core cable assy 931863 Wire Assy - (S2 to F2) 931864 Wire Assy - (S1 to F1) 931865 Wire Assy - (X3 to S1, S2 & S3 +VE) 931866 Wire Assy - (X3 to S1, S2 & S3 -VE) 931895 2 Core cable assy (Pump) 931868...
  • Page 47: Port A Scrub 14 Assy

    Port A Scrub 14 Assy Ref. Part Description Size 925012 W as her-Bridge 829307 Hex Soc C SK Hd Sc rew -SS M6X20...
  • Page 48 Minuteman International, Inc. warrants to the original purchaser/user that the product is free from defects in workmanship and materials under normal use. Minuteman will, at its option, repair or replace without charge, parts that fail under normal use and service when operated and maintained in accordance with the applicable operation and instruction manuals. All warranty claims must be submitted through and approved by factory authorized repair stations.
