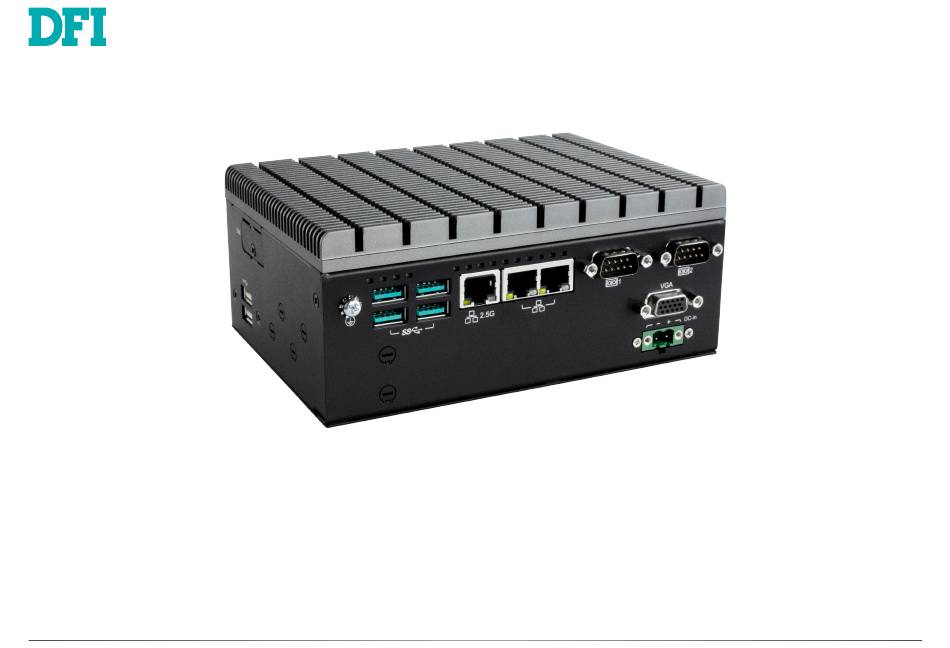

- Page 1 ED700-EHL Fanless Embedded System User’s Manual © September 05, 2023 DFI Inc.
- Page 2 1. The changes or modifications not expressly approved by the party responsible for com- are the properties of the respective owners. pliance could void the user’s authority to operate the equipment. 2. Shielded interface cables must be used in order to comply with the emission limits. User's Manual | ED700-EHL...
-
Page 3: Table Of Contents
Table of Contents Save & Exit ..........................30 Updating the BIOS ........................31 Notice: BIOS SPI ROM......................31 Chapter 1 - Introduction........................ 6 Overview - ED700-EHL ......................6 Front View ........................6 Side View ......................... 6 Dimensions ..........................7 Key Features ........................... 7 Specifications ......................... - Page 4 The manual is subject to change and update without notice, and may be based on editions that do not resemble your actual products. Please visit our website or contact our sales representa- • 1 ED700-EHL System Unit tives for the latest editions. •...
- Page 5 Make sure the system is placed or mounted correctly and stably to prevent the chance of dropping or falling may cause damage. • The openings on the system shall not be blocked and shall be kept in distance from User's Manual | ED700-EHL...
-
Page 6: Chapter 1 - Introduction
Chapter 1 INTRODUCTION Chapter 1 - Introduction X Overview - ED700-EHL Front View Side View SIM Slot USB 3.0 DC-in (9~36V) USB 2.0 LAN (2.5G) Antenna Holes COM 1 & 2 Antenna Holes User's Manual | ED700-EHL... -
Page 7: Dimensions
WiFi 6 Connectivity: Support WiFi 6 module 2.5GbE TSN: Support 1 x 2.5GbE TSN , 3 x GbE LAN Wide Operating Temperature: Operating temperature: 0 to 60°C -40 to 60°C (Supported by Intel Embedded Series ) ® User's Manual | ED700-EHL... -
Page 8: Specifications
Ethernet Controller I210/I211 GigE LAN ® 1 x Intel Ethernet 2.5GigE LAN ® Indicators 1 x Power LED 1 x HDD LED 1 x WiFi LED 1 x 4G/5G LED 2 x COM LED 8 x DIO LED User's Manual | ED700-EHL... - Page 9 Dimensions (W x H x D) 72 x 172 x 118.2 (mm) Weight 1.5kg STANDARDS AND Shock Operating: 3G, 11ms CERTIFICATIONS Non-Operating: 5G, 11ms Vibration Operating: Random 5~500Hz, IEC68-2-64 (3G) Non-Operating: Sine 10~500Hz, IEC68-2-6 (3G) Certifciation CE, FCC, RoHS User's Manual | ED700-EHL...
-
Page 10: Chapter 2 - Hardware Installations
The 5 screws on the bottom of the system are used to secure the cover to the chassis. Remove the screws and put them in a safe place for later use. Step 3: The board can be easily accessed after the chassis cover is removed. Bottom View User's Manual | ED700-EHL... -
Page 11: Installing An Antenna
Connect the internal cable to the board's antenna connector, screw the antenna connector through the antenna hole with washers and nuts, and screw on the antenna as illustrated below. Antenna Chassis Wall Module Connector Cable Antenna Connector Washer Knockout tabs for antenna holes User's Manual | ED700-EHL... -
Page 12: Expansion Slots
Screw tight the card onto the stand-off with a screw driver and a stand-off screw until the gap between the card and the stand-off closes up. The card should be lying parallel to the board when it’s correctly mounted. M.2 E-Key 2230 (PCIe/USB) User's Manual | ED700-EHL... -
Page 13: Installing The So-Dimm Module
Inspect that the clip sits in the notch. If not, please pull the clips Retention Clip outward, release and remove the card, and mount it again. Step 3 Socket Top View User's Manual | ED700-EHL... -
Page 14: Mounting Options
The DIN Rail mount kit includes the following: • Din-rail mount bracket • 2 screws Step 1: Use the provided mounting screws to attach the din-rail mount bracket to the rear side of the system. Step 2: Install the sytem onto the rail. User's Manual | ED700-EHL... -
Page 15: Chapter 3 - System Settings
Chapter 3 SYSTEM SETTINGS Chapter 3 - System Settings X Pin Assignment DC-in COM1 & COM2 Assignment (RS232) (RS422/Half) (RS422/Full) (RS485) DATA- DATA+ User's Manual | ED700-EHL... -
Page 16: Chapter 4 - Bios Settings
When “X” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>. User's Manual | ED700-EHL... -
Page 17: Main
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays min- utes from 00 to 59. Second displays seconds from 00 to 59. User's Manual | ED700-EHL... -
Page 18: Rc Acpi Configuration
The system automatically powers on after power failure. S5 State The system enter soft-off state after power failure. Power-on signal input is required to power up the system. Last State The system returns to the last state right before power failure. User's Manual | ED700-EHL... -
Page 19: Power & Performance
Enable or disable turbo mode of the processor. This field will only be displayed when EIST is enabled. C states Enable or disable CPU Power Management. It allows CPU to enter "C states" when it’s idle and nothing is executing. User's Manual | ED700-EHL... -
Page 20: Trusted Computing
Set SuperIO WatchDog Timer Timeout value. The range is from 0 (disabled) to 255. To clear the existing TPM encryption, select "TPM Clear" and restart the system. This field is not available when "Security Device Support" is disabled. Note: The sub-menus are detailed in following sections. User's Manual | ED700-EHL... -
Page 21: Nct6126D Super Io Configuration ► Serial Port 1,2 Configuration
NCT6126D Super IO Configuration ► Serial Port 1,2 Configuration ► Serial Port 3,4 Configuration Serial Port Serial Port Enable or disable serial port. Enable or disable serial port. Electrical Interface Mode Choose mode between RS232 / RS485 / RS422 User's Manual | ED700-EHL... -
Page 22: Nct6126D Hw Monitor
SYS Fan = [ SMART FAN IV ], [ Manual mode ] Fan control mode select Temperature 1 to 4 The value of temperature. FD/RPM 1 to 4 The value of Fan Duty/RPM when temperature is T1. User's Manual | ED700-EHL... -
Page 23: Serial Port Console Redirection
Select data bits: 7 bits or 8 bits. Parity Select parity bits: None, Even, Odd, Mark or Space. Stop Bits Select stop bits: 1 bit or 2 bits. Flow Control Select flow control type: None or RTS/CTS. User's Manual | ED700-EHL... -
Page 24: Usb Configuration
Set the wait time in seconds to press ESC key to abort the PXE boot. Use either +/- or numeric keys to set the value. Media detect count Set the number of times the presence of media will be checked. Use either +/- or numeric keys to set the value. User's Manual | ED700-EHL... -
Page 25: Usb Power Control
Chapter 4 BIOS SETTINGS Advanced USB Power Control USB Power 5V_Dual: Support system wake from S3/S4 by USB KB&MS 5V: No Support system wake from S3/S4 by USB KB&MS User's Manual | ED700-EHL... -
Page 26: Chipset
X Chipset Chipset Graphics Configuration Primary Display Select which of IGFX/PEG/PCI Graphics device to be the primary display. Internal Graphics Keep IGFX "Enabled" or "Disabled" based on the setup options, or select "Auto" for auto-detec- tion. User's Manual | ED700-EHL... -
Page 27: Pch-Io Configuration
Select one of the PCI Express channels and press enter to configure the following settings. M.2-E, M.2-M, M.2-B Control the PCI Express Root Port. PCI Express Configuration PCI Express Configuration Settings SATA Configuration SATA Device Otpions Settings Audio Configuration Audio Subsystem Configuration Settings User's Manual | ED700-EHL... -
Page 28: Pch-Io Configuration ► Sata Configuration
This option allows you to create RAID or Intel Rapid Storage configuration along with Intel® Optane™ system acceleration on Serial ATA devices. Ports and Hot Plug Enable or disable the Serial ATA port and its hot plug function. User's Manual | ED700-EHL... -
Page 29: Security
Clear the database from the NVRAM, including all the keys and signatures installed in the Key Management menu. Press Enter and a prompt will show up for you to confirm. Key Management Enables expert users to modify Secure Boot Policy variables without full authentication. User's Manual | ED700-EHL... -
Page 30: Boot
Select this option to save BIOS configuration settings to a USB flash device. ► Restore Setting from file This field will appear only when a USB flash device is detected. Select this field to restore set- ting from the USB flash device. User's Manual | ED700-EHL... - Page 31 MAC address should be burned or not. c. After updating unique MAC Address from manufacturing, NVM will be protected immediately after power cycle. Users cannot update NVM or MAC address. User's Manual | ED700-EHL...
