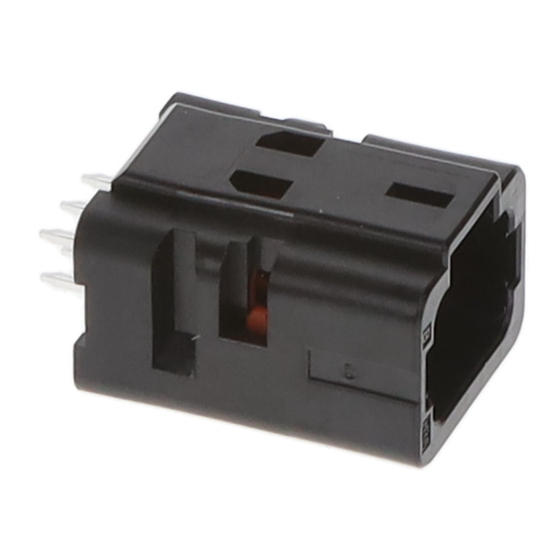

Hirose DF62WZ-6P-2.2DSA(20) Manual

1. Scope
This document specifies the steps to insert or remove the DF62W series.
It contains general guidelines and precautions for the safe use of the product. The use of the
product in a way not as specified in the document could result in unexpected troubles such as
damage to connectors. Please make sure to thoroughly read and understand the document
prior to the use of the product.
2. Connectors
○Connectors
DF62W #－＊ EP－2.2 C
❶ ❷ ❸ ❹
❶ Series：DF62W or DF62WZ
4
❷ Style Symbol
・Sockt / In-line plug
Blank：Standard type
A to E：Different wire seal type
・Header
Blank or Z：Standard type
❸ No. of poles：2～9
❹ Connector types
S ：Socket
EP：In-line plug
P ：Header
❺ Terminal pitch：2.2ｍｍ
❻ Shape of connection / terminal
C ：Crimping case
DSA ：Straight pin header
（E.g.）DF62W-2S-2.2C
+DF62W-2226SCF
(Cables attached)
COUNT DESCRIPTION OF REVISIONS
4
1
DIS-H-00018787
TITLE
DF62W Series Mating / Unmating Operation Instruction
Manual
TECHNICAL SPECIFICATION
FORM HC0011-9-1
❺ ❻
（E.g.）DF62W-2EP-2.2C
+DF62W-EP2226PCF
(Cables attached)
Fig.1 DF62W connector
KI.SUGAWARA
○Terminals
DF62W – EP 2226 PCF A
❶
❶ Application
EP：In-line
❷ Compatible cables
2022：AWG20 to 22
2226：AWG22 to 26
2830：AWG28 to 30
❸ Shape / packing
SCF ：Socket terminal, reeled
SC ：Socket terminal, separate
PCF ：Plug terminal, reeled
PC ：Plug terminal, separate
❹ Plating
：Gold plating
A
Blank：Tin plating
（E.g.）DF62W-9P-2.2DSA
DESIGNED
HT.SATO
HIROSE ELECTRIC CO.,LTD.
APPROVED
CHECKED
DESIGNED
WRITTEN
ETAD-H0761-00
❷ ❸ ❹
CHECKED DATE
20230809
KI.AKIYAMA 20140215
OM.MIYAMOTO 20140214
KT.ISHII 20140213
KT.ISHII 20140213
1 / 8
4
